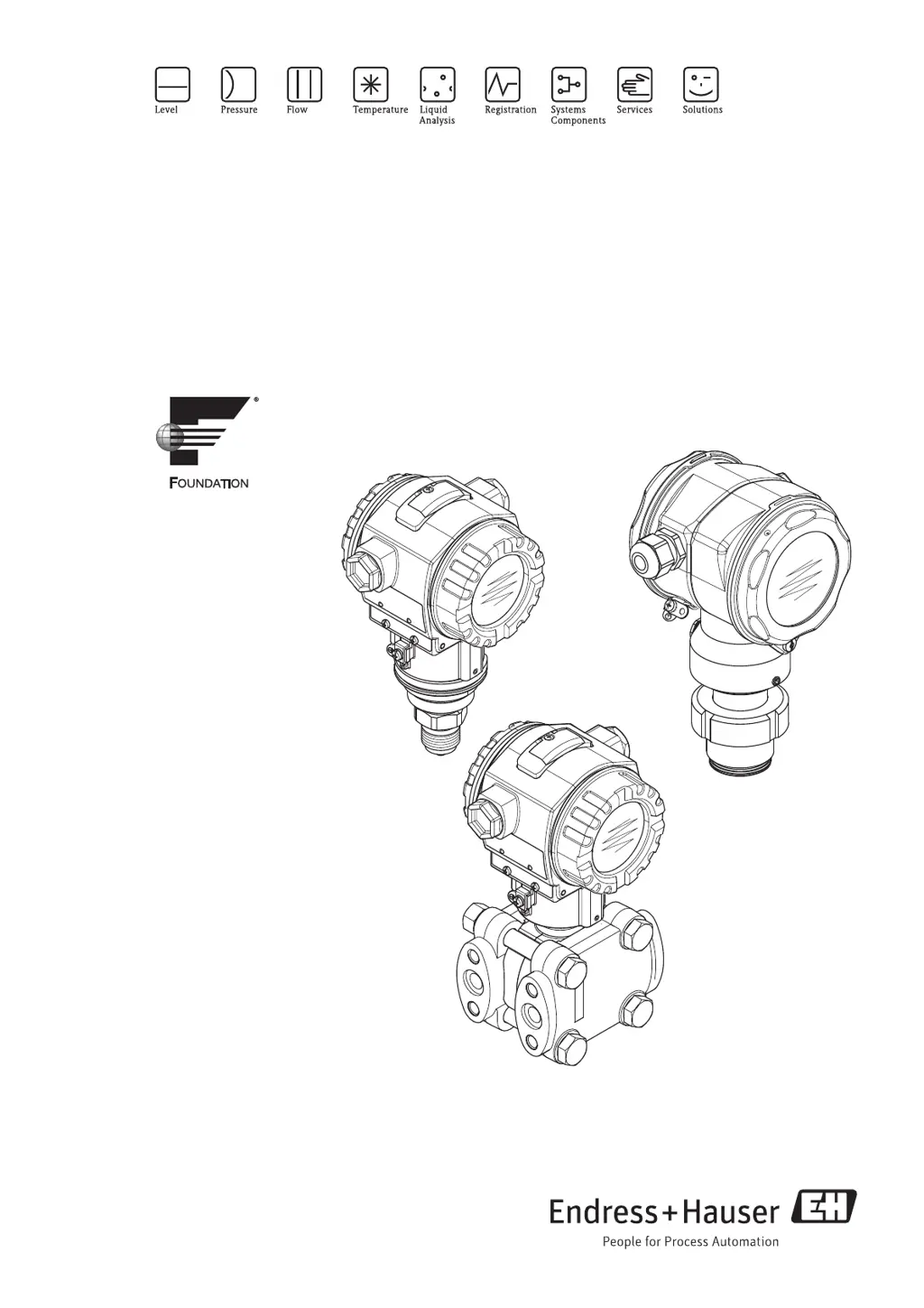

BA00303P/00/EN/13.11
71139808
valid from Software version:
03.00.zz
Operating Instructions – Description of Device Functions
Cerabar S PMC71, PMP71/75
Deltabar S FMD76/77/78, PMD70/75
Deltapilot S FMB70
Process pressure / Differential pressure, Flow / Hydrostatic

Table of Contents

Other manuals for Endress+Hauser Deltapilot S FMB70

Preview: Functional Safety Manual
Functional Safety Manual44 pages
Preview: Safety Instructions
Safety Instructions16 pages
Preview: Brief Operating Instructions
Brief Operating Instructions36 pages
Preview: Installation Instructions
Installation Instructions8 pages

Questions and Answers

  • A
    Andrea SparksJul 25, 2025
    What to do if my Endress+Hauser Deltapilot S FMB70 device is not responding?
    • K
      Kimberly WrightJul 25, 2025
      If your Endress+Hauser Measuring Instruments device is not responding, consider these potential causes and solutions: * The supply voltage might not match the specifications on the nameplate. If this is the case, apply the correct voltage. * The supply voltage might have incorrect polarity. If so, reverse the polarity of the supply voltage. * There might be no contact between the connecting cables and terminals. Check the contacting of the cables and correct if necessary.
  • E
    Erika DiazAug 3, 2025
    Why is there no display on my Endress+Hauser Deltapilot S FMB70 Measuring Instruments?
    • D
      Dr. Jacob Mcgee DVMAug 4, 2025
      If there is no display on your Endress+Hauser Measuring Instruments, it could be due to several reasons: 1. The onsite display might be set too bright or too dark. To fix this, set the local display brighter by simultaneously pressing O and F, or set it darker by simultaneously pressing S and F. 2. The connector for the local display might not be plugged in correctly. Ensure the connector is properly plugged in. 3. The onsite display might be defective. If this is the case, replace the onsite display.
  • B
    Billy JordanAug 15, 2025
    Why is my Endress+Hauser Deltapilot S FMB70 Measuring Instruments Alarm Status not displaying the expected message priorities?
    • P
      Paige Webb MDAug 15, 2025
      The Alarm Status/ALARM_STATUS parameter in Endress+Hauser Measuring Instruments shows the message with the highest priority. Check if the expected message has the highest priority.

Summary

Notes on use

Pressure measurement (FF configuration program)

Level measurement (FF configuration program)

Flow measurement (FF configuration program)

Calibration

Perform calibration procedures for volume flow measurement in m³/h.

Totalizer

Pressure measurement (via local operation and FieldCare)

Level measurement (via local operation and FieldCare)

Overview of level measurement

Summary of level measurement tasks, selection modes, and calibration methods.

Level easy pressure level selection

Configure level measurement using easy pressure calibration methods.

Level easy height level selection

Configure level measurement using easy height calibration with density and height pairs.

Level standard level selection, Linear level mode

Level standard level selection, Pressure linearized level mode

Height linearized level mode

Endress+Hauser Deltapilot S FMB70 Specifications

General IconGeneral
Output Signal4...20mA HART, PROFIBUS PA, FOUNDATION Fieldbus
ApplicationLevel measurement in liquids
Measuring PrincipleHydrostatic pressure
Measuring RangeUp to 100 m
Process Temperature-40°C to +85°C (depending on version)
Process Pressure Absolute / Max. Overload LimitUp to 40 bar (580 psi)
Housing MaterialStainless steel
MaterialStainless steel
Protection ClassIP68
Power Supply10.5...45 V DC
