9.4 "Level standard" level selection, "Linear" level mode
9.4.1 Calibration with reference pressure – wet calibration
Example:
In this example, the level in a tank should be measured in m. The maximum level is 3 m (9.8 ft).
The pressure range is set to 0-300 mbar (4.5 psi).
Prerequisite:
• The measured variable is in direct proportion to the pressure.
• The tank can be filled and emptied.
!
Note!
• See also Operating Instructions for Deltabar S (BA00301P) or Cerabar S (BA00302P), "Level
measurement" section or Deltapilot S (BA00372P), "Level measurement" section.
• For a description of the parameters mentioned, see
– → ä 134, Table 2: GROUP SELECTION → MEASURING MODE
– → ä 142, Table 6: OPERATING MENU → SETTINGS → POSITION ADJUSTMENT
– → ä 155, Table 10: OPERATING MENU → SETTINGS → BASIC SETUP "Level", LEVEL
SELECTION "Level standard"
– → ä 158, Table 11: OPERATING MENU → SETTINGS → BASIC SETUP "Level", LEVEL
MODE "Linear".
• For a description of further relevant parameters, see
– → ä 183, Table 16: OPERATING MENU → SETTINGS → EXTENDED SETUP "Level"
– → ä 201, Table 28: OPERATING MENU → PROCESSINFO → PROCESS VALUES "Level".
Description
1 Deltabar S: Before configuring the device for your
application, the pressure piping must be cleaned and the
device filled with fluid. See Operating Instructions
BA00301P.

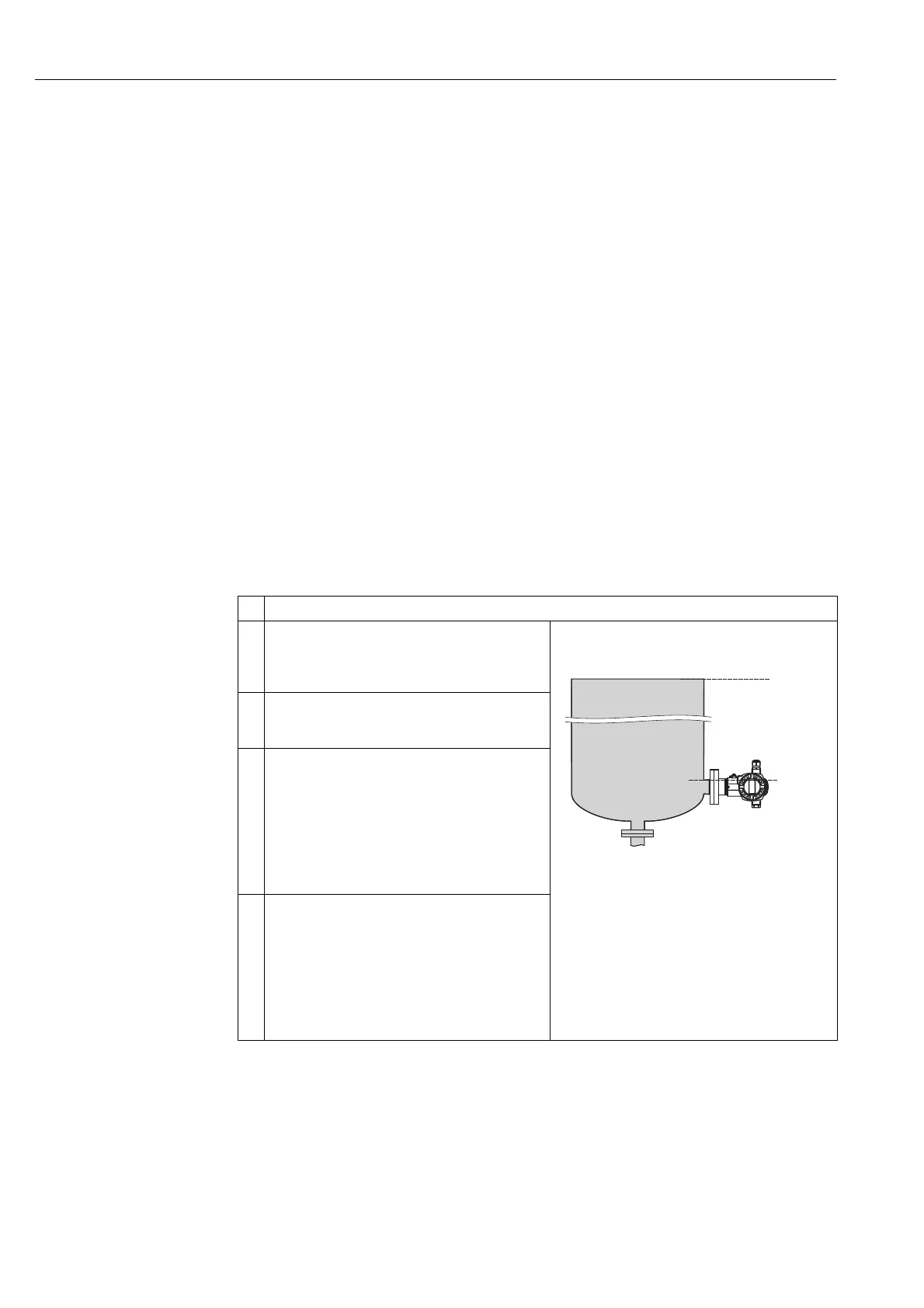

P01-PMP75xxx-19-xx-xx-xx-008
Fig. 27: Calibration with reference pressure –
wet calibration
1 See Table, Step 11.
2 See Table, Step 12.
2 Carry out position adjustment if necessary. → ä 142,
Table 6: OPERATING MENU → SETTINGS →
POSITION ADJUSTMENT.
3 Select the "Level" measuring mode via the MEASURING
MODE parameter.
Local operation:
Menu path: GROUP SELECTION → MEASURING
MODE
FieldCare:
Menu path: OPERATING MENU → SETTINGS →
BASIC SETUP → MEASURING MODE
4 If necessary, select the "Level standard" level mode using
the LEVEL SELECTION parameter.
Local operation:
Menu path: GROUP SELECTION → MEASURING
MODE
FieldCare:
Menu path: OPERATING MENU → SETTINGS →
BASIC SETUP → MEASURING MODE
➀
➁
0 mbar
300 mbar
3 m
0 m
