Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus
26 Endress+Hauser
F [kN]
6 mm
L [m]
F [kN]
4 mm
A
B
C
D
0 5 10 15 20 25 30 35
0
4
8
12
16
20
24
28
32
36
0
4
8
12
16
20
24
A0017172

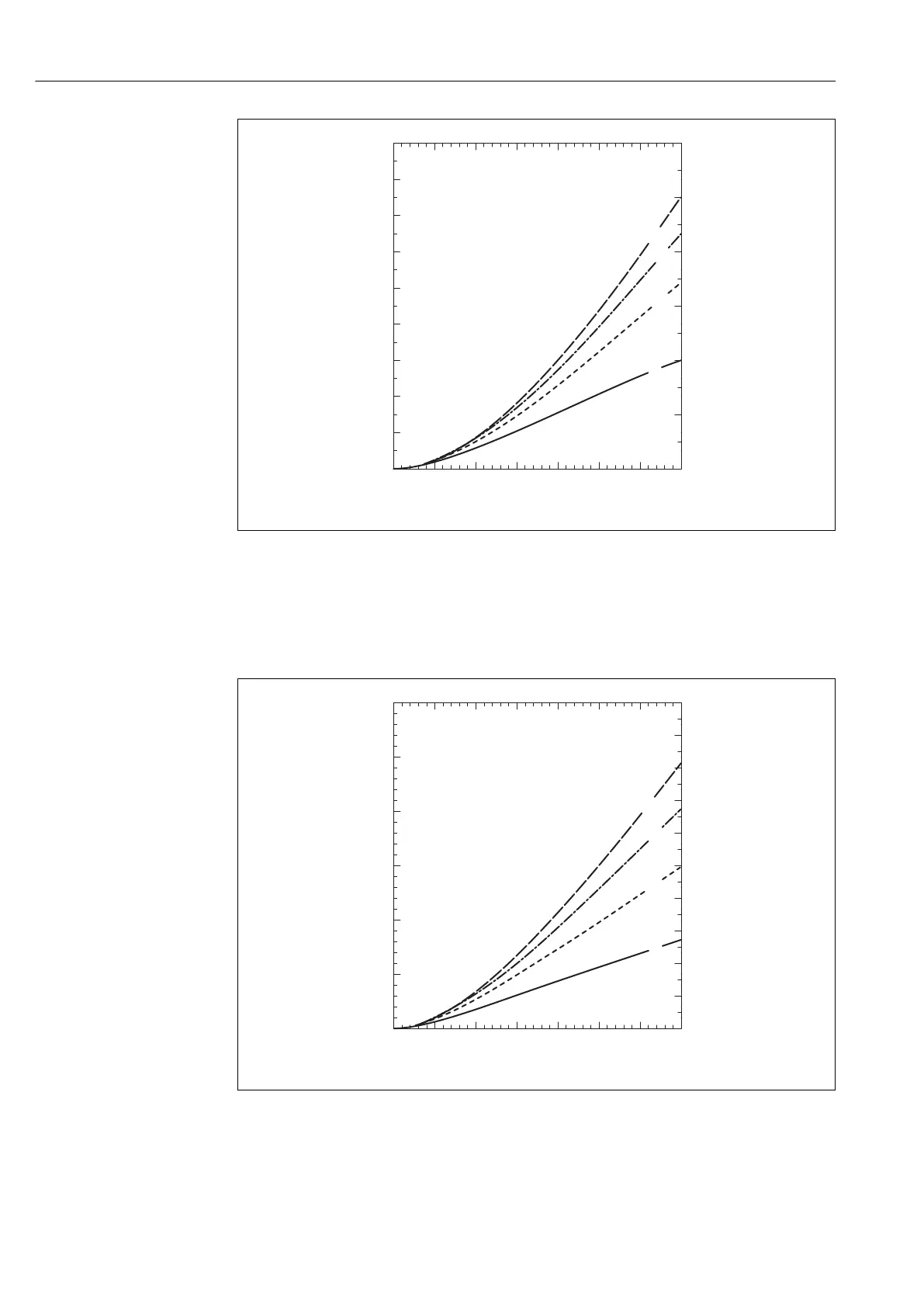

 7 Wheat in silo with smooth metallic walls; tensile load as a function of level L for rope diameters 6mm
(0,24 in) and 4mm (0,16 in)
A Silo diameter 12 m (40 ft)
B Silo diameter 9 m (30 ft)
C Silo diameter 6 m (20 ft)
D Silo diameter 3 m (10 ft)
F [kN]
6 mm
L [m]
F [kN]
4 mm
A
B
C
D
0 5 10 15 20 25 30 35
0
10
20
30
40
50
60
0
4
8
12
16
20
24
28
32
36
40
A0017173
 8 Cement in silo with smooth metallic walls; tensile load as a function of level L for rope diameters 6mm
(0,24 in) and 4mm (0,16 in)
A Tank diameter 12 m (40 ft)
B Tank diameter 9 m (30 ft)
C Tank diameter 6 m (20 ft)
D Tank diameter 3 m (10 ft)
