5.1 Requirements
5.1.1 Mounting without a guide system
NMS8x is mounted on a nozzle of the tank roof without a guide system. Sufficient clearance
inside the nozzle is necessary to allow the displacer to move without hitting the inner walls.
D
1
1
d

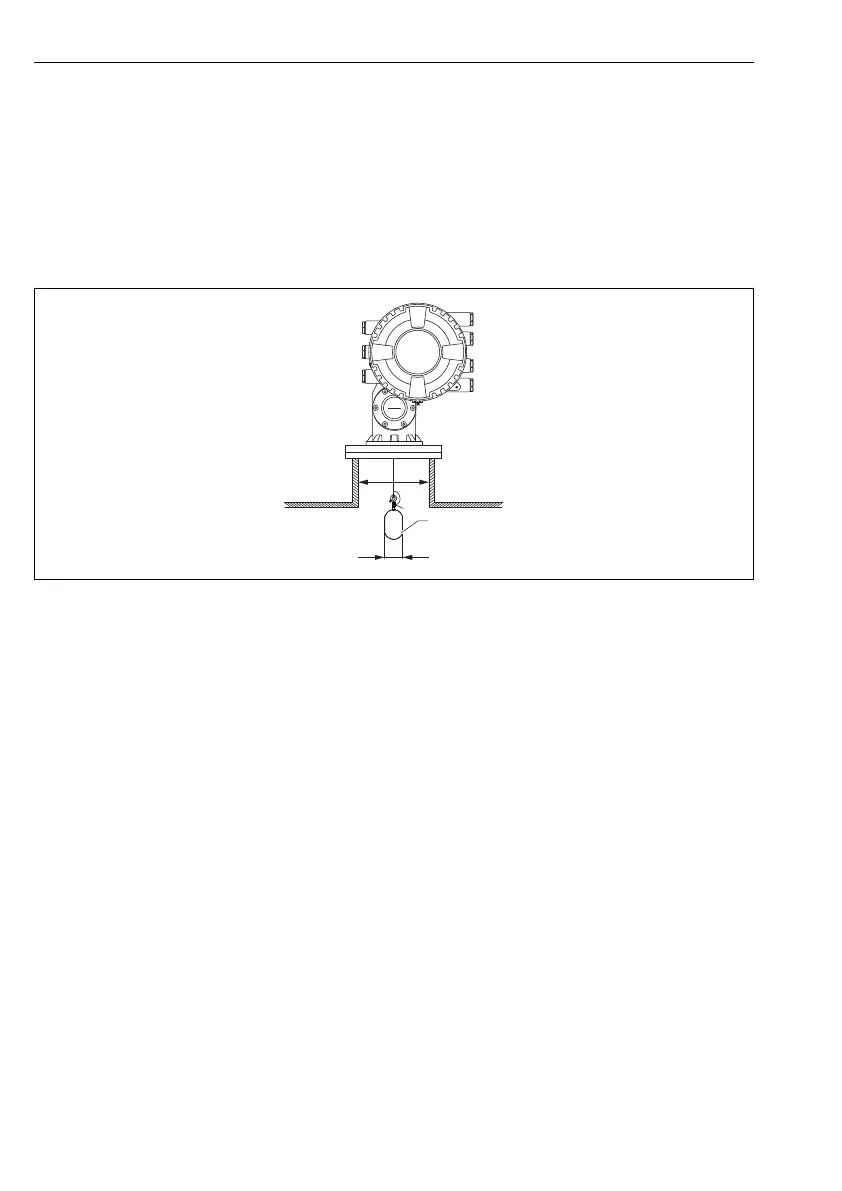

A0026734
 2 No guide system
D
1
Inner diameter of the tank nozzle
d Diameter of the displacer
1 Displacer
