5.2.3 Installation for all-in-one
In the case of a 50 mm (1.97 in) or 70 mm (2.76 in) diameter displacer, the device can be
delivered by all-in-one method.
Displacer is shipped separately according to the following specifications.
• 47 m (154.2 ft) measuring range
• 55 m (180.5 ft) measuring range
• 110 mm (4.33 in) measuring range
• NPS8 in flange
• Cleaned from oil+grease option
5
6
3
4
2
1
A0027013

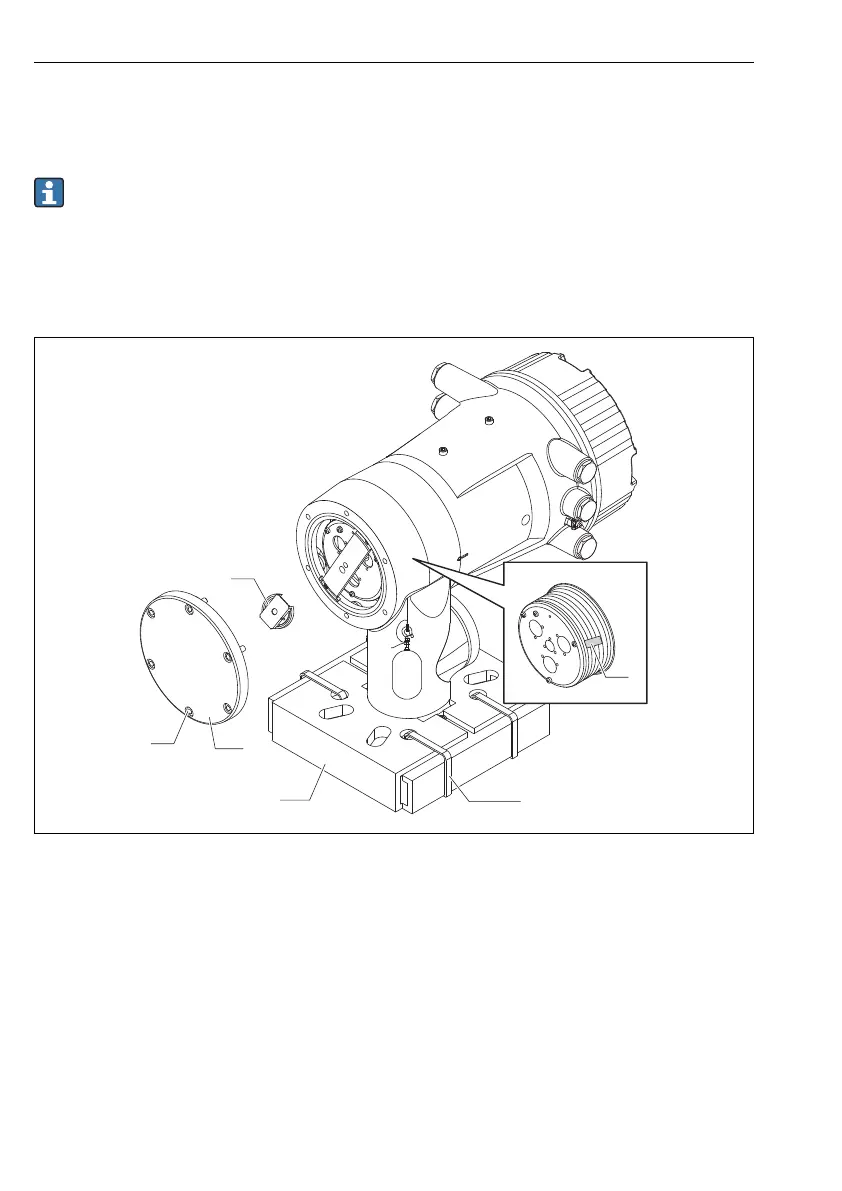

 5 Removing packing materials
1 Tape
2 Fixing band
3 Displacer holder
4 Wire drum stopper
5 Drum housing cover
6 Screws and bolts
Procedures Notes
1.
Hold the gauge so that it stays horizontal against
the flange.
• Perform these steps before mounting NMS8x on the
nozzle.
• Do not tilt NMS8x after removing the displacer holder.
2.
Cut the fixing bands [2].
