Proservo NMS80 Commissioning
Endress+Hauser 55
7.4.4 Reference calibration
The reference calibration defines the zero distance position of the displacer from the
mechanical stop.
1. Navigate to: Setup → Calibration → Reference calibration → Reference calibration
2. Select the Start
3. Check the reference position (e.g. 70 mm (2.76 in)).
The reference position is preset prior to delivery.
4. Confirm that the displacer is correctly attached to the measuring wire.
5. The reference calibration starts automatically.
This completes the reference calibration.
1.
1
R
1. 2. 3.
A0030162

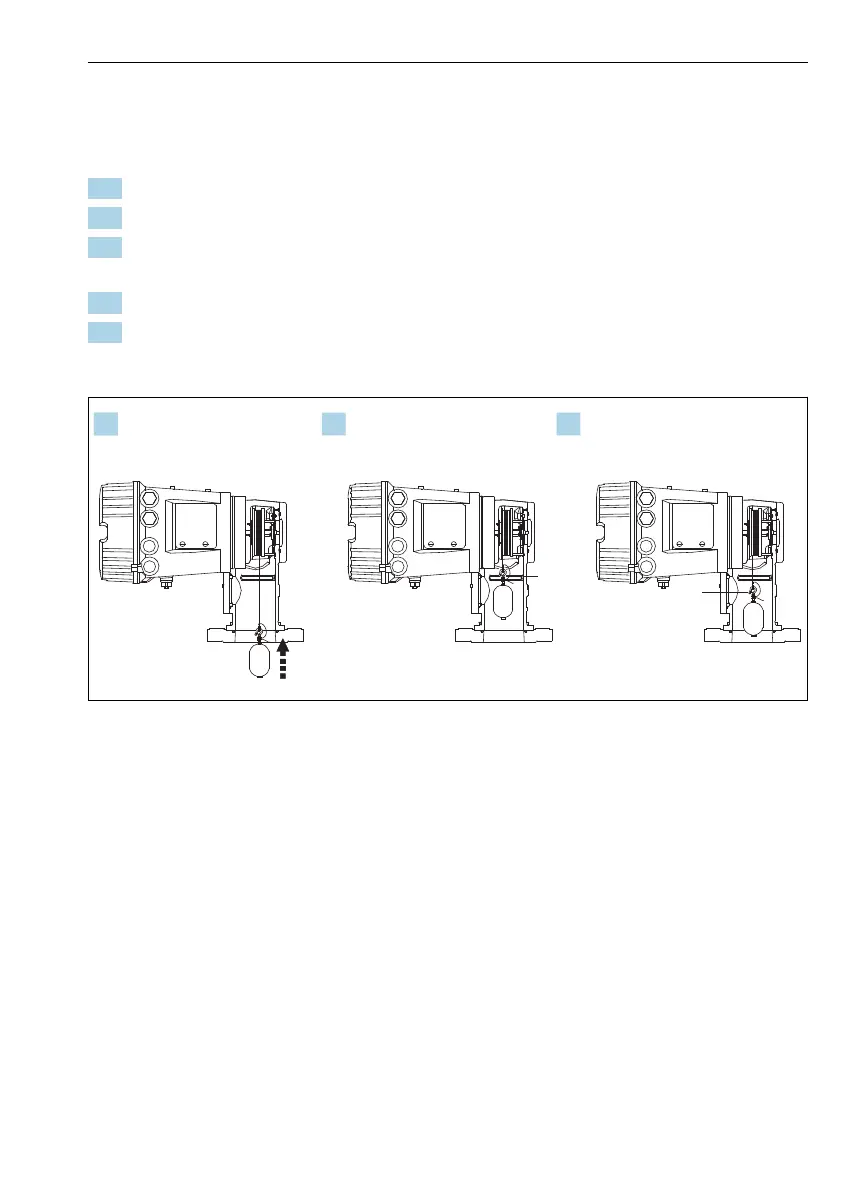

 27 Reference calibration sequence
1 Mechanical stop
R Reference position
