Battery Charger RX
User's Manual
ELECTRICAL INSTALLATION OF THE CHARGER
• Check the efficiency of earth circuitry (yellow/green wire);
• Connect the charger to the mains using an adeguate plugs, with pushbutton and fuses;
• Use an adeguate plug to connect the charger to the battery.

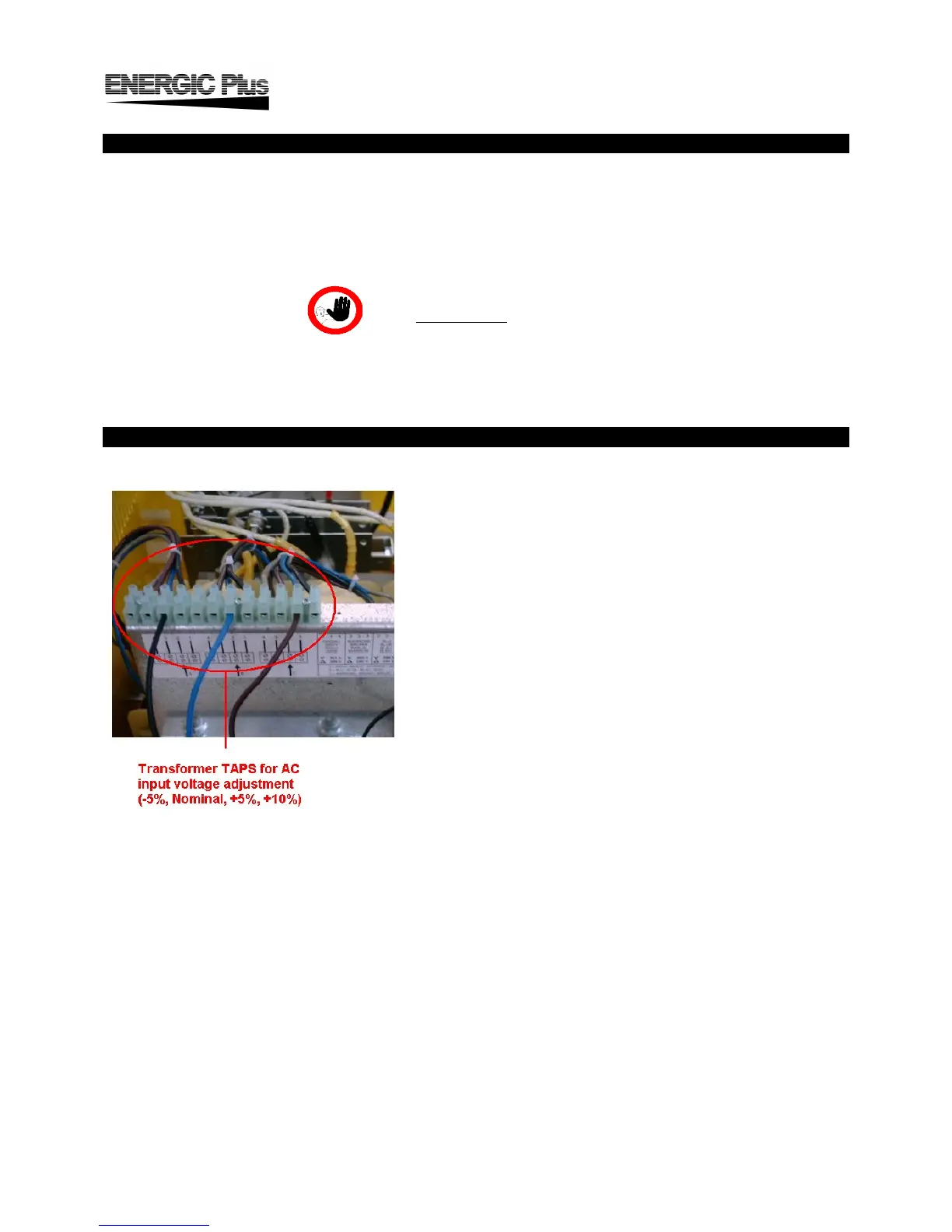

AC INPUT VOLTAGE ADJUSTMENT
• Disconnect the charger from main supply and
battery;
• Open the cabinet;
• Find the plugs for tension setting;
• Disconnect the wire A from the original plug
(position 2);
• Connect the wire A to the desidered position.
Check the table to find the correct position;
• Close the cabinet;
• Connect the charger to main supply.
OWM-040906-RX Version: 02-AB Page 17 of 25
CAUTION !
These settings can be done by qualified personnel only.
For more information please contact the manifacturer.
