Enerpac CAT 3600 Series User Manual

6
Maximum rated working
pressure of tool:
bar psi
1500 21,750

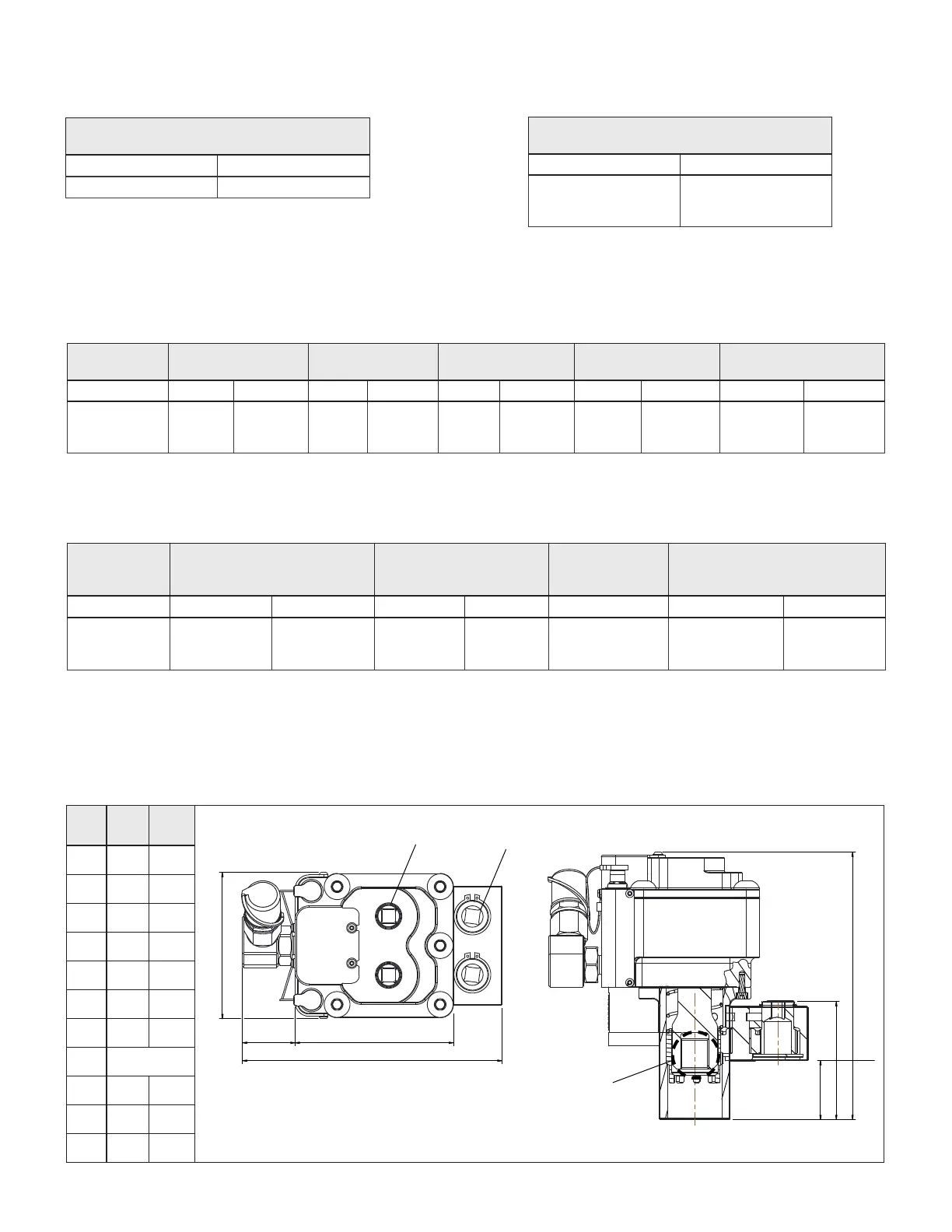

2.0 PRODUCT DATA
2.1 Maximum System Pressure
Maximum rated load that tensioner can
generate @ 1500 bar [21,750 psi]
kN lbf
264
(± 3 kN)
59,350
(± 675 lbf)
2.2 Maximum Tensioner Force
2.3 Additional Specifications
Puller Thread
Size
Hydraulic Area
(per stud)
Maximum Stroke
(per stud)
Puller Free-Float
Distance Between
Stud Centers
Tensioner Square Drive
(4 locations)
metric bolt mm
2
in
2
mm in mm in mm in mm in
M19 x 1.5 1760 2.728 8 0.315 19.5 0.768 40 1.575 14 3/8
Hydraulic
Connection
Operating
Temperature Range
Weight
(each tensioner)
Qty. of tensioners
required per
connecting rod
Required Smart Tensioning Pump
°C °F kg lb 115 VAC 230 VAC
Quick-
Disconnect
(male)
0 to 60 32 to 140 7.9 17.4 2
Model No.
498-6540
Model No.
498-6541
2.4 Dimensions (for reference only)
Item mm inch
A
B C
D
E
F
G
H
J
K
A
99 3.89
B 36 1.41
C 108 4.25
D 176 6.92
E 40 1.57
F 80 3.14
G 182 7.16
H M19 x 1.5
I 3/8" 14
J 3/8" 14
K 3/8" 14
