Enerpac SHS - Shs Cylinders Dimensional Callout Art; Shs Cylinders Dimensional Table

L4627_b 11

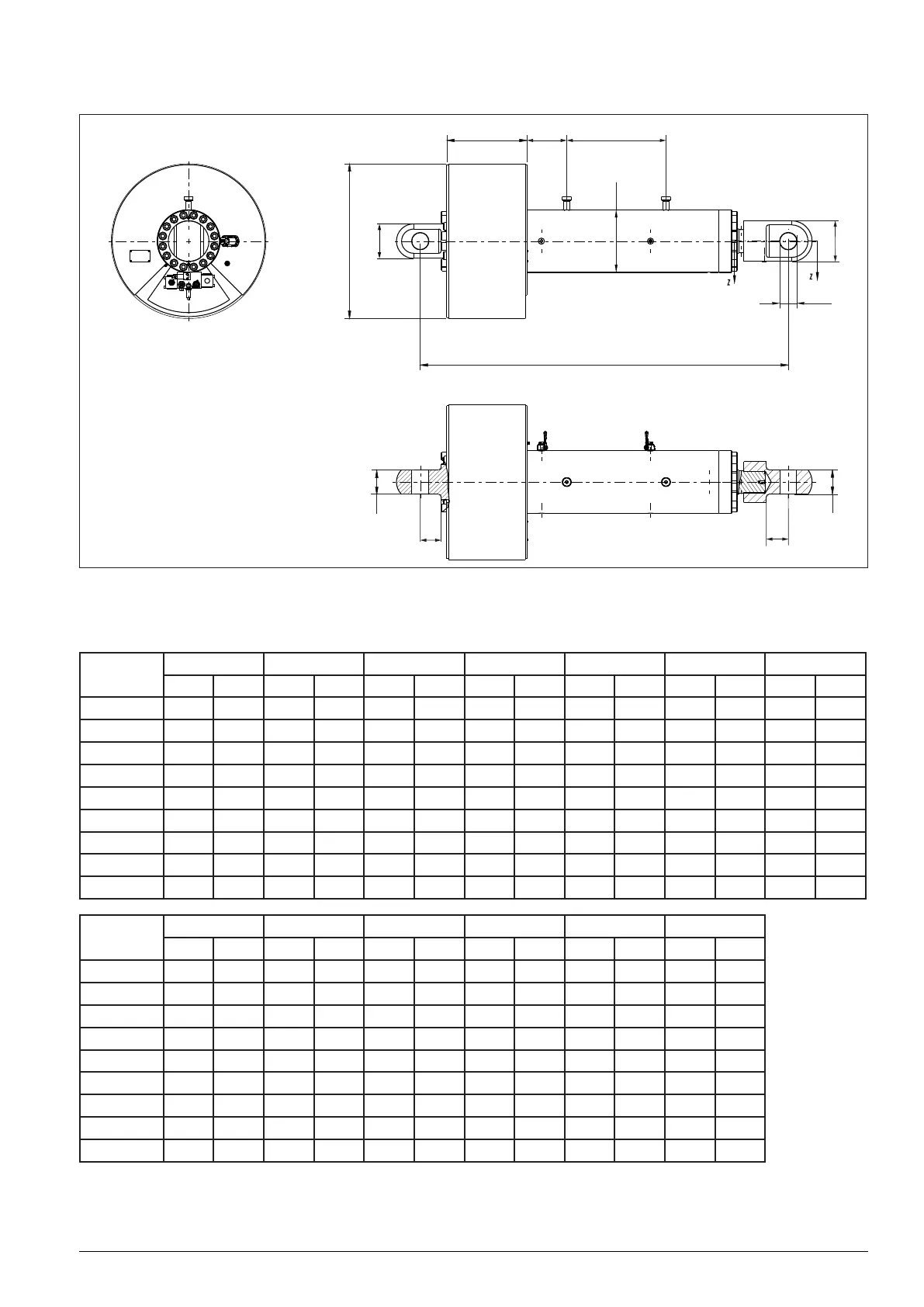

5.4 SHS Cylinders Dimensional Callout Art
Figure 8: SHS cylinder dimensions
5.5 SHS Cylinders Dimensional Table
Model
A B C D E F G
mm in mm in mm in mm in mm in mm in mm in
SHC5520 690 27.16 160 6.29 395 6.45 165 6.49 200 7.87 245 9.64 160 6.29
SHC5540 690 27.16 160 6.29 395 6.45 200 7.87 500 19.68 245 9.64 160 6.29
SHC5560 690 27.16 160 6.29 395 6.45 200 7.87 500 19.68 245 9.64 160 6.29
SHC8520 690 27.16 164 6.45 385 15.15 165 6.49 200 7.87 265 10.43 164 6.45
SHC8540 680 26.77 164 6.45 385 15.15 200 7.87 500 19.68 265 10.43 164 6.45
SHC8560 690 27.16 164 6.45 385 15.15 200 7.87 500 19.68 265 10.43 164 6.45
SHC11020 780 30.70 174 6.85 405 15.94 160 6.29 200 7.87 315 12.40 174 6.85
SHC11040 780 30.70 174 6.85 405 15.94 200 7.87 500 19.68 315 12.40 205 8.07
SHC11060 780 30.70 174 6.85 405 15.94 200 7.87 500 19.68 315 12.40 205 8.07
Model
H I J K L M
mm in mm in mm in mm in mm in mm in
SHC5520 59 2.32 1300 51.18 80 3.14 91.5 36.02 91.5 36.02 80 3.14
SHC5540 59 2.32 1800 70.86 80 3.14 91.5 36.02 91.5 36.02 80 3.14
SHC5560 59 2.32 2300 90.55 80 3.14 91.5 36.02 91.5 36.02 80 3.14
SHC8520 72 2.83 1330 52.36 100 3.93 105.5 41.53 105 4.13 100 3.93
SHC8540 72 2.83 1830 72.04 100 3.93 105.5 41.53 105 4.13 100 3.93
SHC8560 72 2.83 2330 91.73 100 3.93 105.5 41.53 105 4.13 100 3.93
SHC11020 85 3.34 1355 53.34 124 4.88 110.5 43.50 105.5 4.15 124 4.88
SHC11040 85 3.34 1855 73.03 124 4.88 110.5 43.50 105.5 4.15 124 4.88
SHC11060 85 3.34 2355 92.71 124 4.88 110.5 43.50 105.5 4.15 124 4.88
* Cylinders which include pressure transducers have suffix P (ex. SHC5520P).
** Cylinders which include internal stroke sensor and pressure transducers have suffix S (ex. SHC5520S).






 





