L4627_b 23
11.4 Synchoist Cylinder

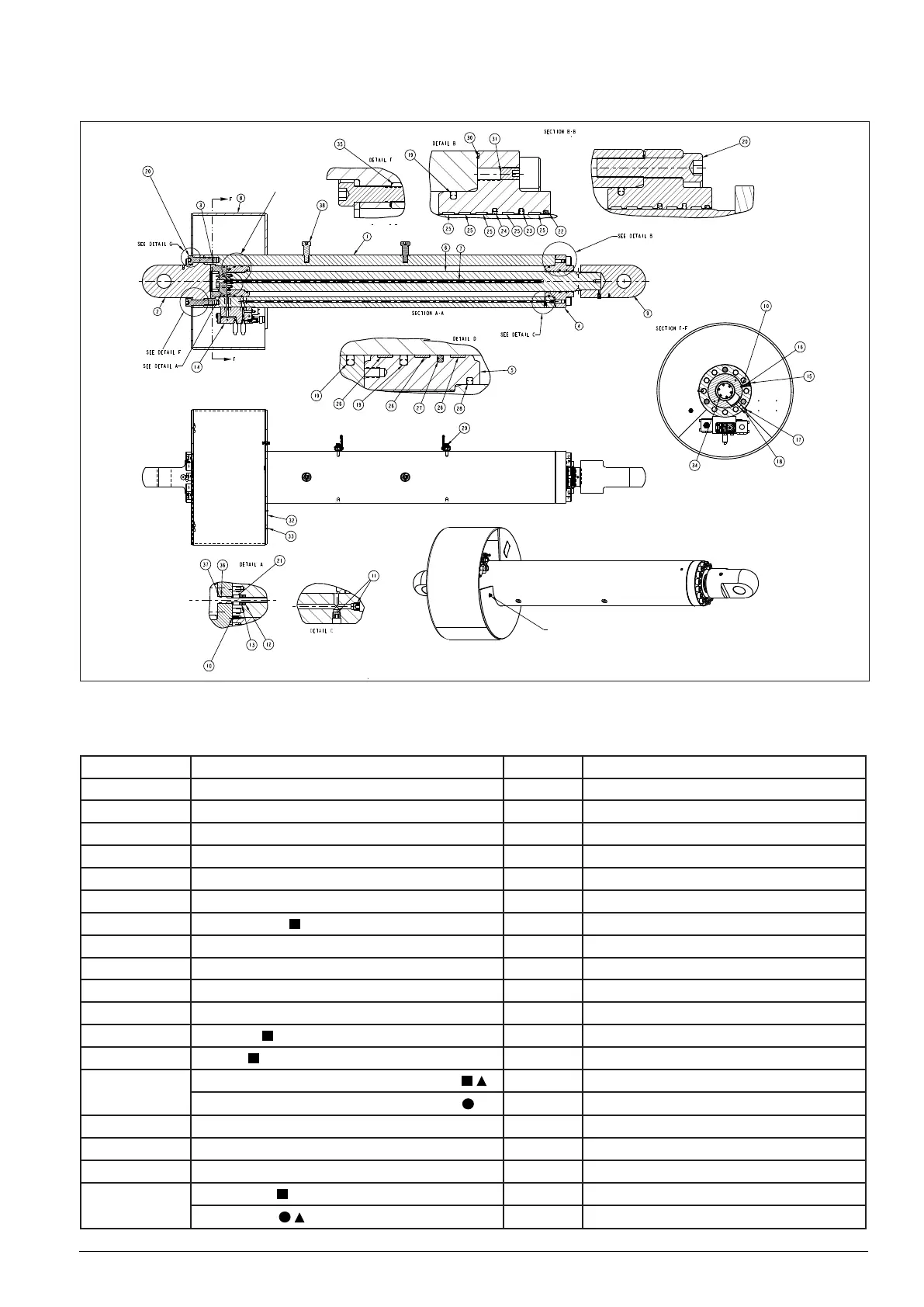

Figure 21: SHC cylinder detailed view
11.4.1 Synchoist Cylinder Table of Parts
Item N.º Description Qty. Part Number
1 Cylinder base 1 Not Available as Service Part
2 Bottom Plate 1 Not Available as Service Part
3 Sensor Plug 1 Not Available as Service Part
4 Stop Ring 1 Not Available as Service Part
5 Piston 1 Not Available as Service Part
6 Rod 1 Not Available as Service Part
7
Stroke Sensor
1
Not Available as Service Part
8 Protector Assembly 1 Not Available as Service Part
9 Clevis Eye 1 Not Available as Service Part
10 Screw Din 913 M8 x 20 3 CCA821028-5A
11 Flush Plug 1/4 2 A1008245
12
Separator
1
DB80006101
13
Magnet
1
DB8009384
14
Synchoist Cylinder Safety Block w/sensor
1
DB9346900
Synchoist Cylinder Safety Block no sensor
1
DB9353900
15 Plug 2 CS235006
16 Screw 913 M8 x 12 1 CCA817028-5A
17 Cable Gland VK 1 B122013386-20-1
18
Insert Gland
1
B122013386-20-2
Sealing Plug
1
B122013386-20-4


