Enerpac SHS - Synchoist Cylinder Distribution Block

24
L4627_b
19 Glyd Ring T 3 Not Available as Service Part
20 Bolt Din 912 M27 x 3 24 CBA2751028-1A-GE
21
Ring Ret Din 472
1
CCA1026044-1C
22 Scrapper 1 Not Available as Service Part
23 Rimseal 1 Not Available as Service Part
24 Stepseal 1 Not Available as Service Part
25 Wear Ring 5 Not Available as Service Part
26 Slydring 3 Not Available as Service Part
27 Stepseal 1 Not Available as Service Part
28 Glyd Ring T 1 Not Available as Service Part
29 Lifting Eyes M12 2 Not Available as Service Part
30 O-Ring 2 Not Available as Service Part
31 Screw Din 913 2 Not Available as Service Part
32 Identification Plate 1 B140090026-20
33 Allen Bolt Din 912 M3x9 4 CBA311028-1A
34 Allen Bolt M6 x 16 6 DB016028-1A
35 O-Ring 1 Not Available as Service Part
36
O-Ring
1
Not Available as Service Part
37
Back-Up Ring
1
Not Available as Service Part
38 Screw SHC M24 x 50 2 DB9482242
Notes:
: Parts pointed with this mark are only available on -S model synchoist cylinders.
: Parts pointed with this mark are only available on -P model synchoist cylinders.
: Parts pointed with this mark are only available normal synchoist cylinders.
All other parts are available in all cylinders.

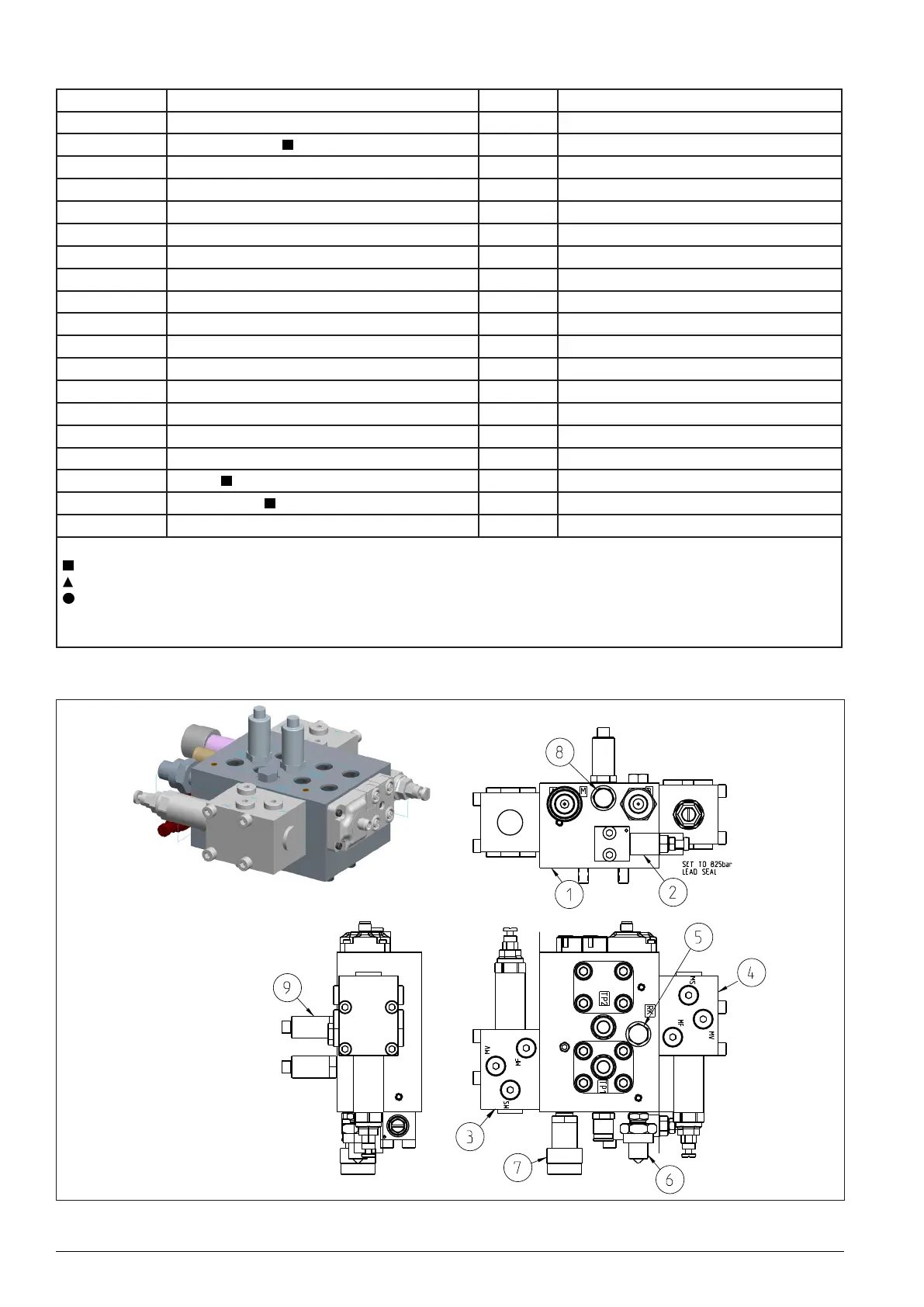

11.5 Synchoist Cylinder Distribution Block
Figure 22: Synchoist cylinder distribution block parts
