11. Parts List
11.1 Manual SHS HPU Frame Assembly

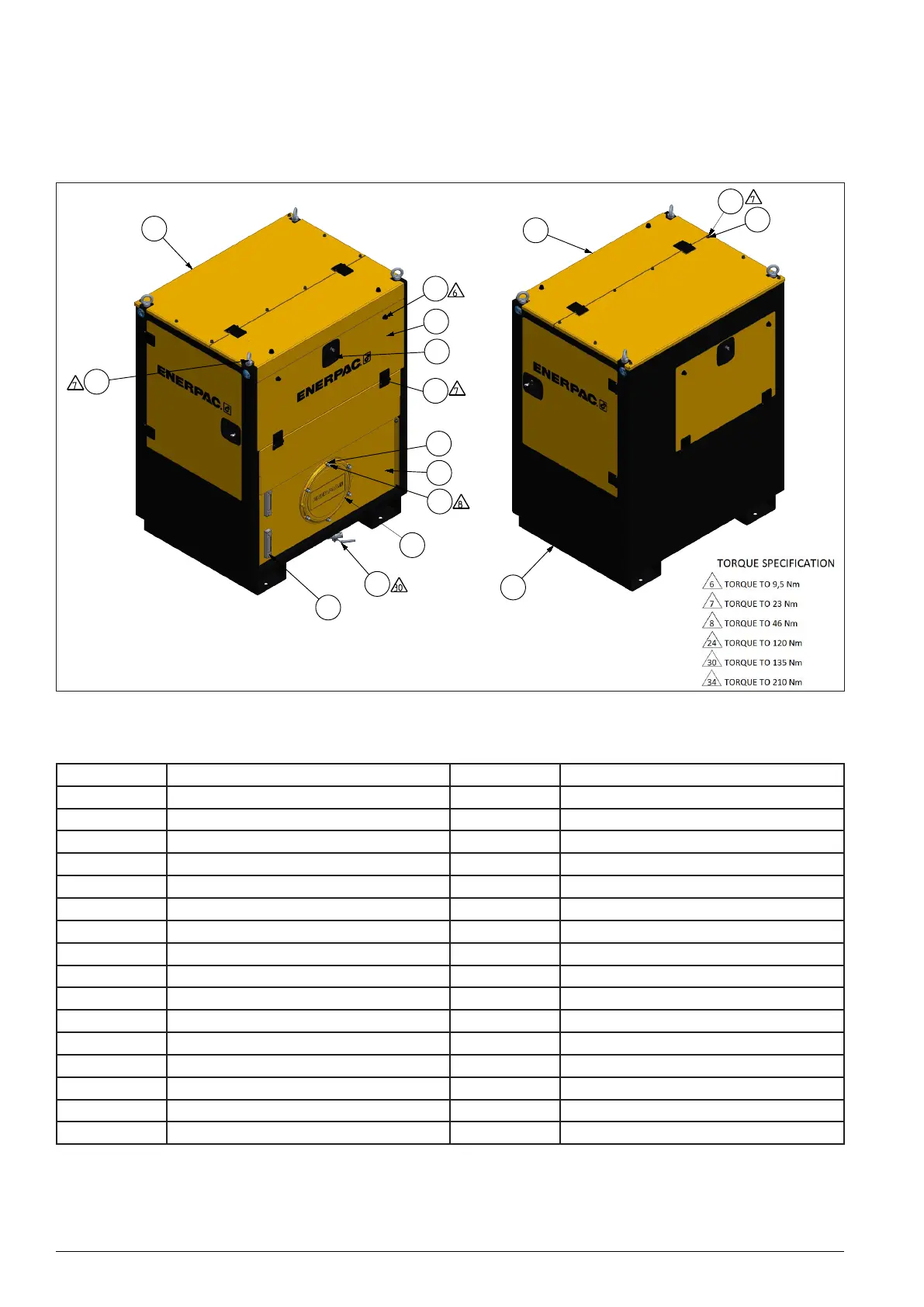

Figure 18: Manual SHS Frame detailed view
11.1.1 Manual SHS HPU Frame Table of Parts
Item N.º Description Qty. Part Number
1 Pin with Rubber 6 DB0132202
2 SHP Frame Frontal Door 1 DB0125201-13
3 Folding Lock RVS 4 DB131202
4 Hinge Bolt M8 10 DB130202
5 Flat Washer 10.50 x 20 x 2 6 CAE1100108-1A
6 SHP Reservoir 1 DDB0127025
7 Acorn Nut M10 6 CAE1100055-1A
8 Reservoir Register Plate 1 DB9091900
9 Ball Valve Assembly 1 DB9359900-12
10 Visual Level FSA 2 DB4405022
11 Lifting Eyes M8 4 CBB1080120-1D
12 Manual SHS Top Cover Plate 1 DB0125201-9
13 SHS Frame 1 DB0125201
14 Manual SHS Top Cover Door 1 DB0125201-10-99
15 SHCS Screw M8 x 12 8 CBA817028-1A
16 Flat Washer 8.40 x 16 x 1.60 64 CAE1080108-1A
















