11.2 Manual SHS HPU

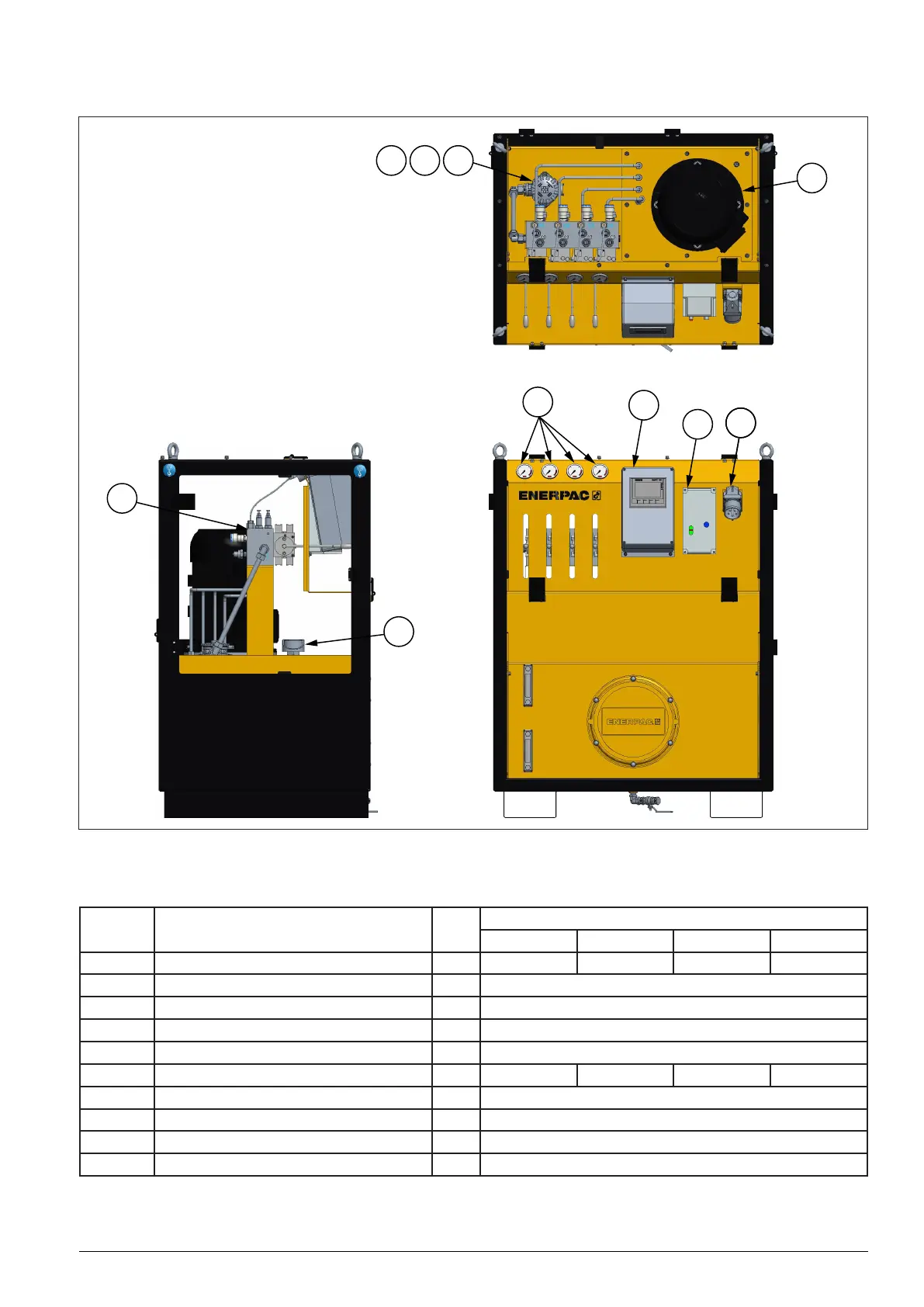

Figure 19: Manual SHS HPU detailed interior view

11.2.1 Manual SHS HPU Table of Parts

Item N.º Description Qty.

Part Number

SHP414MW SHP414MJ SHP421MW SHP421MJ

1 Electric Motor 1 DB4348259 DB4431259 DB4621259 DB4432259

2.1 Return Filter Housing 1 DB4603118

2.2 Return Filter Element 1 DB4604175

2.3 Clogging Filter Indicator 1 DB4605118

3 Gauge 700 bar 4 G2538R

4 Pressure Reading Device 1 --- SHS-PRD --- SHS-PRD

5 Motor Starter 1 DB06914380

6 Electric Plug 1 DB06447606

7 Breather Filter 1 DB4368118

8 Manual SHS Manifold Assembly 1 DB9206900
















