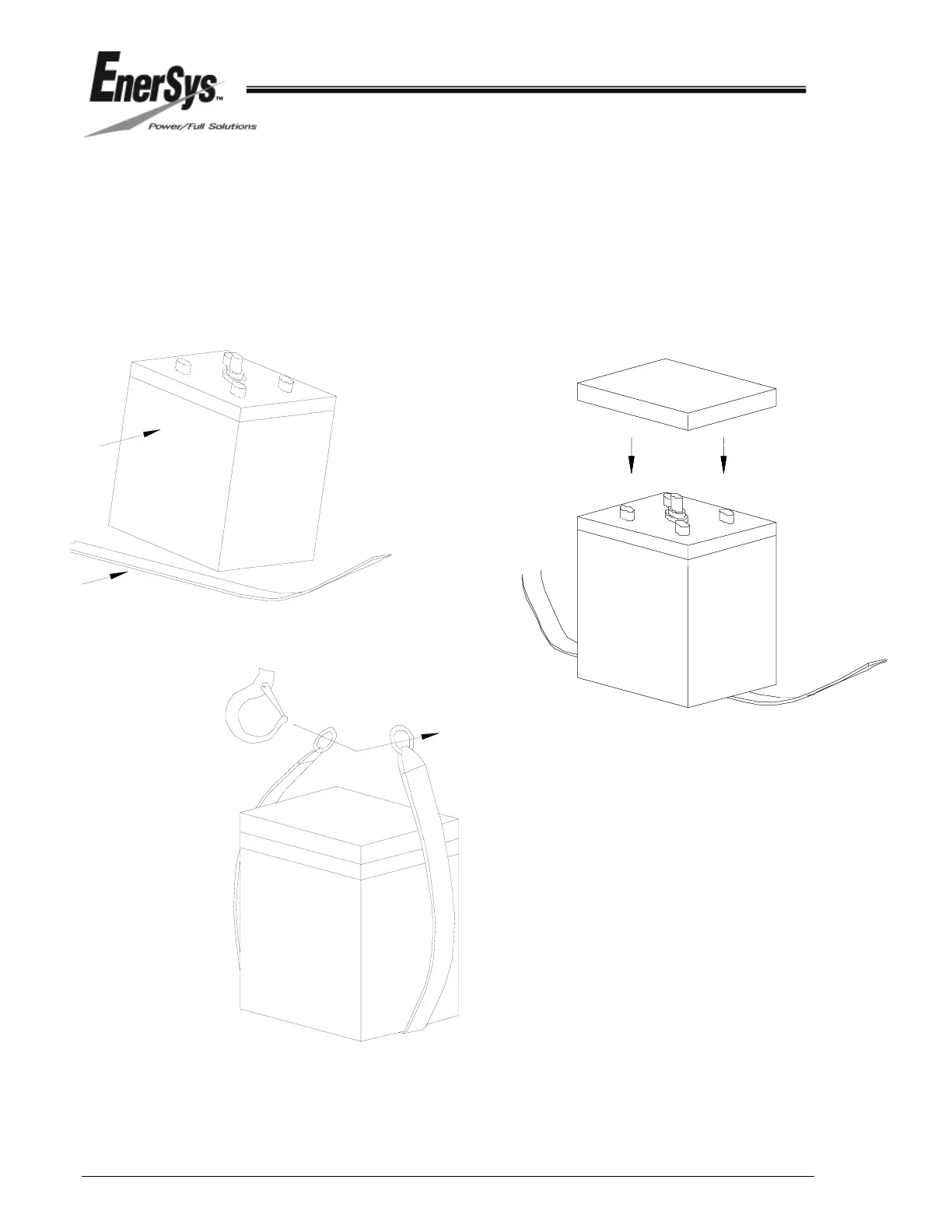

2. Slide belt underneath cell. See Figure 6.2.
3. Place the styrofoam cover on top of the cell, with the beveled ends up. See Figure 6.3.
4. Bring the end rings of the belt together over the cover and engage the hook of the lifting
device in both rings. Always lift vertically and balance the cell. See Figure 6.4.
5. Remove the belt and cover after positioning the cell.
