Sound Diagram
1) Not required if using a VFD

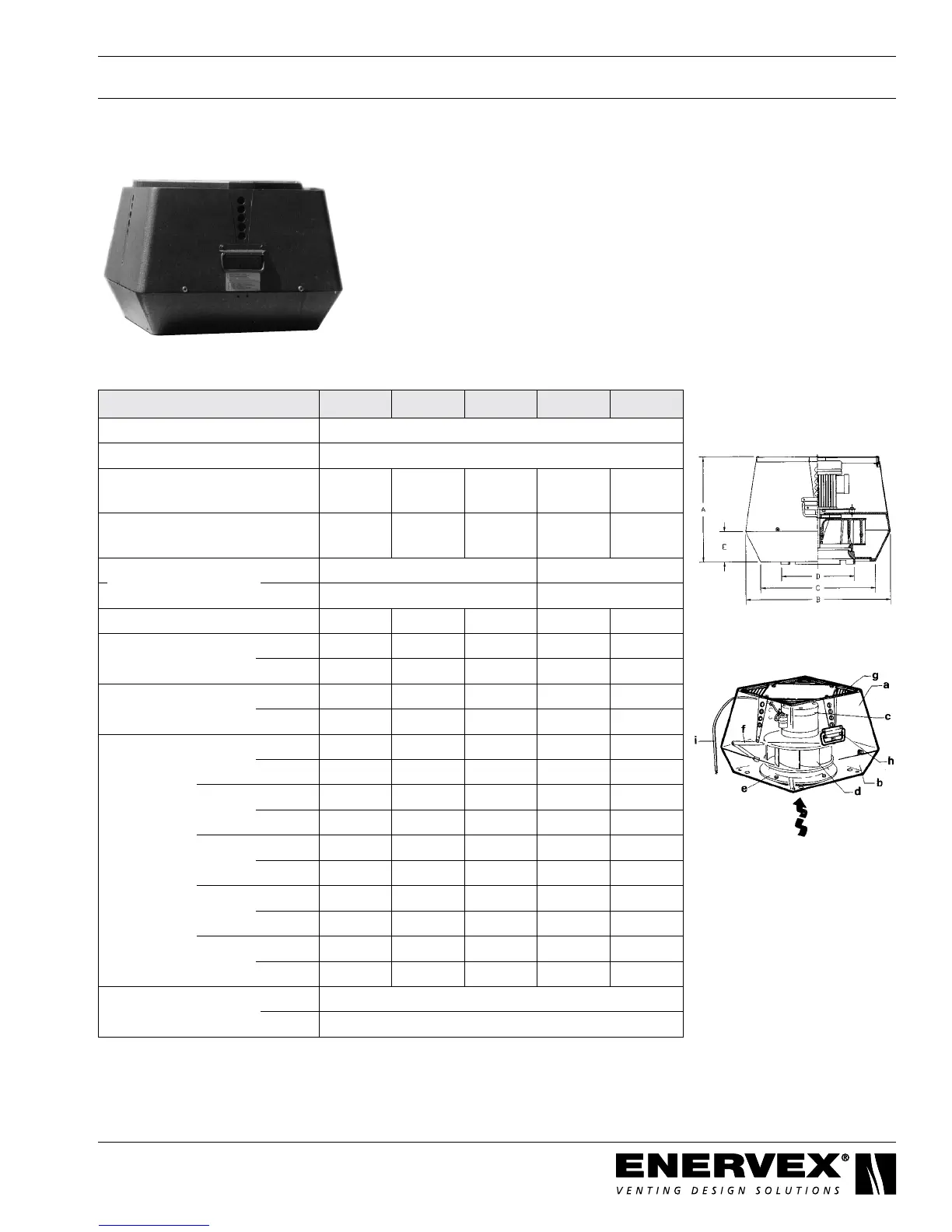

2.2 RSV Chimney Fan
a Top Section
b Bottom Section
c Motor
d Centrifugal Impeller
e Inlet for Impeller
f LockingHinge
g Bird Screen
h Carrying Handle
i Wiring Conduit
Model
RSV 200 RSV 250 RSV 315 RSV 400 RSV 450
Discharge Vertical
Fan Type Centrigual Impeller
Max. Discharge
Velocity
FPM 1,729 2,222 2,771 2,752 4,134
Actual Discharge
Velocity
FPM
2.9 x
CFM
1.9 x
CFM
1.2 x
CFM
1.03 x
CFM
1.03 x
CFM
Voltage V AC 1x120 3x208-240/3x400
RPM 1600 1720
Amps A 1.4 2.9 5.8 3.5/2.1 6.5/3.8
Power Ratings
kW 0.10 0.16 0.35 0.75 1.5
HP 0.15 0.2 0.5 1 2
Weight
lbs 47 60 88 97 128
kg 18 26 35 44 58
Dimensions
A in 11.03 13.20 14.97 16.94 23.23
mm 280 335 380 430 590
B x B in 15.37 19.11 22.85 25.61 25.61
mm 390 485 580 650 650
C x C in 12.22 15.17 18.32 20.69 20.69
mm 310 385 465 525 525
Ø D in 7.88 9.85 12.41 15.76 15.76
mm 200 250 315 400 400
E in 3.15 3.94 4.53 5.12 8.54
mm 80 100 115 130 217
Temperature Rating
Interm. 575°F / 300°C
Cont. 482°F / 250°C
