3 Hardware Features
3.1 Opening The Device
It is highly recommended using the MT 3000 Disassembly Kit (Enfora Part Number KIT2374-01) to remove
the cover of the MT 3000.
The MT 3000 Disassembly Kit includes the Six-Pin Base and the Metal Lever.

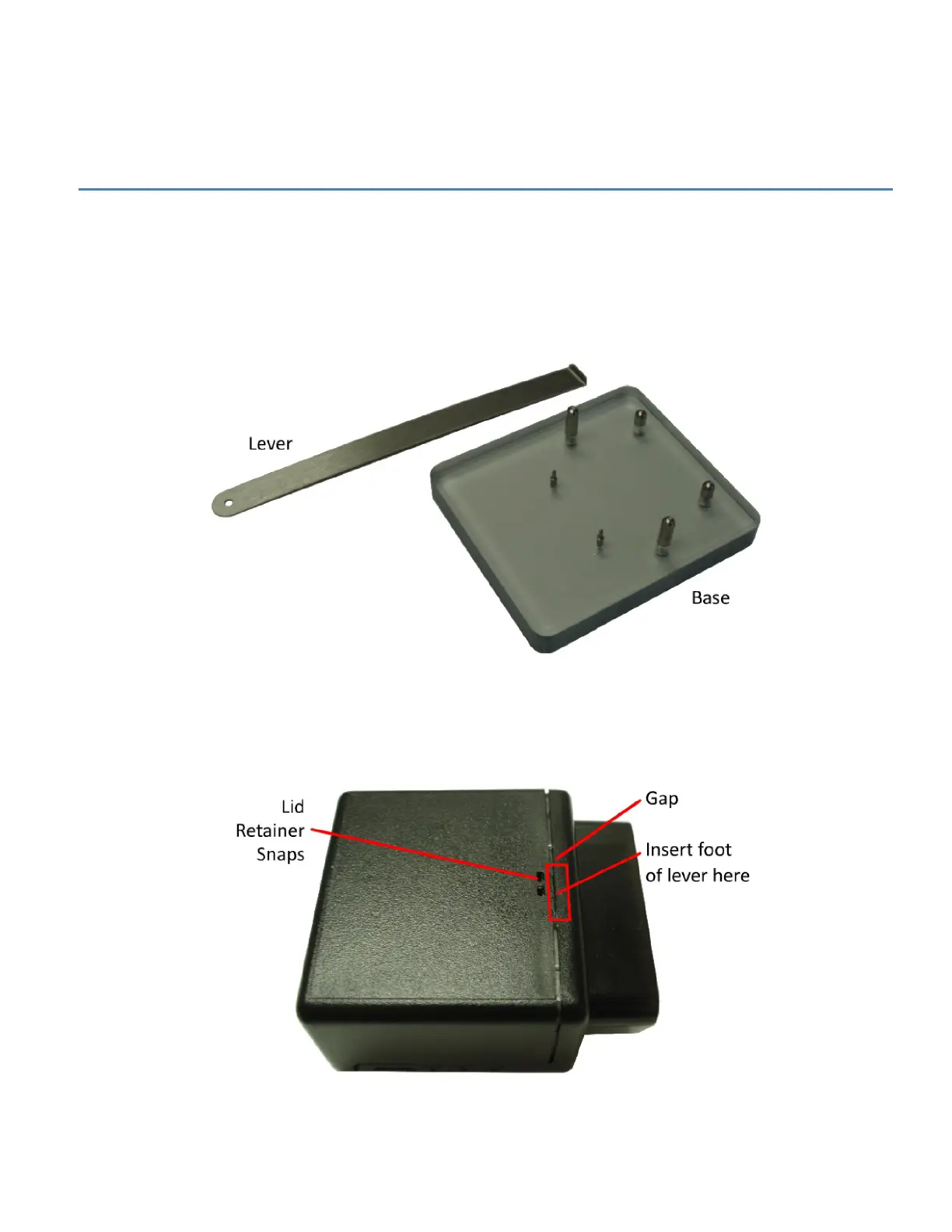

Figure: 6 - MT 3000 Opening Toolkit
To use the MT 3000 Disassembly Kit, follow the following steps:
1. Insert the curved foot of the Metal Lever into the gap between the lid and the body next to the
retainer snaps.
-8-
