ENFORCER SA-027HQ User Manual

ENFORCER 365-Day Annual Timer
2 SECO-LARM U.S.A., Inc.
Table of Contents
Parts List ........................................................ 2
Overview ......................................................... 2
Specifications ................................................ 3
Installation ...................................................... 3
Basic Wiring ................................................... 4
Sample Application ....................................... 4
Programming Introduction ........................... 5
Programming Recommendations .................. 5
LCD Display Icons ......................................... 5
Programming Buttons .................................... 5
Programming Menu Flow Chart ..................... 6
Programming ................................................. 6
Setting the Display Contrast .......................... 7
Setting the Date and Time.............................. 7
Programming Events ...................................... 8
Programming Holidays ................................... 9
Programming Daylight Savings Time ............. 9
Programming a PIN Code ............................ 10
Programming Relays in Tandem .................. 10
Performing a System Test ............................ 11
Clearing the Memory .................................... 11
Smart Charging ............................................ 12
Checking Power Input and Backup Battery
Level .......................................................... 12
Troubleshooting ........................................... 12
Parts List
1x
Timer
2x
Mounting screws
2x
Wires for optional backup battery
1x
Manual

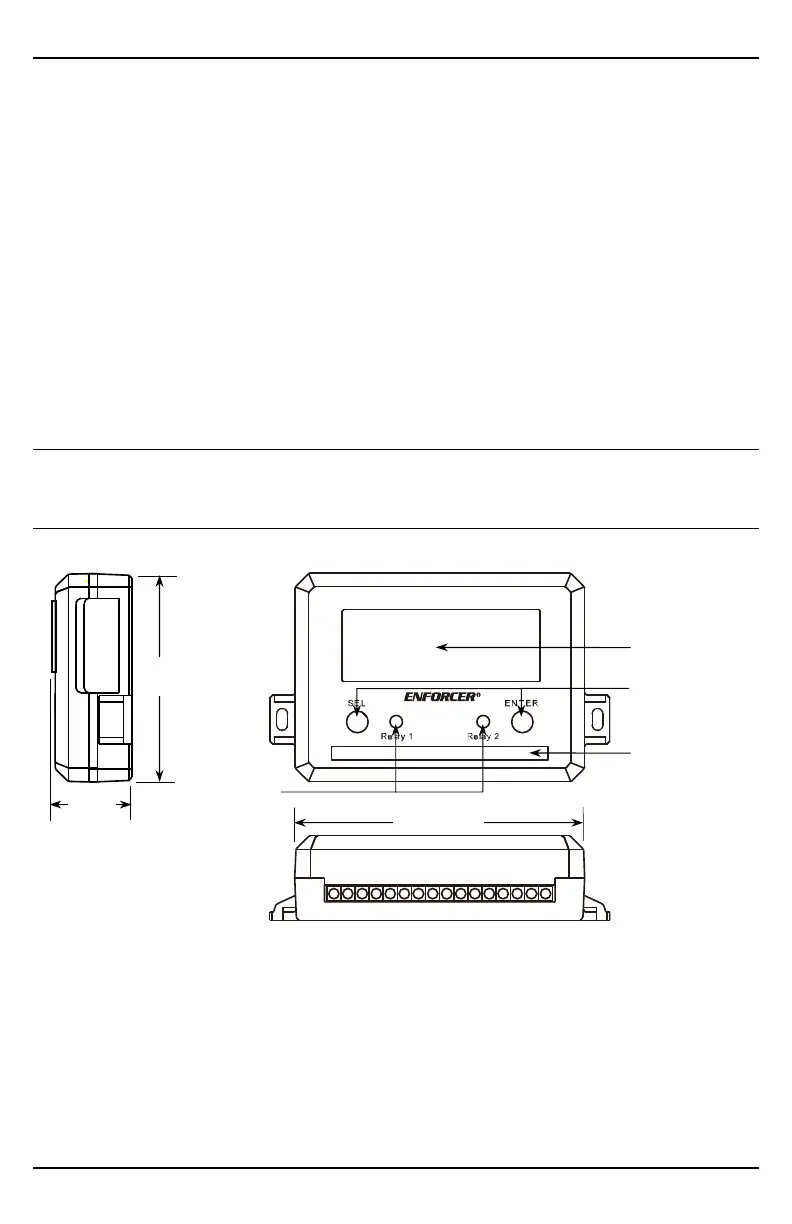

Overview
4
1
/
16
" (105mm)
LCD Display
Terminal screw
access slot
Relay
indicators
Terminal Layout Chart (left to right)
Programming
buttons
5
9
/
16
"
(76mm)
1
1
/
16
"
(33mm)
9.
Ground input
10. FM 1 – N.O. input
11. Relay 2 – N.O. output
12. Relay 2 – COM output
13. Relay 2 – N.C. output
14. Egress 2 – N.O. input
15. Ground input
16. FM 2 – N.O. input
1.
Power input
2. Power input
3. Backup battery +
4. Backup battery –
5. Relay 1 – N.O. output
6. Relay 1 – COM output
7. Relay 1 – N.C. output
8. Egress 1 – N.O. input
