ENFORCER SA-027WQ - Basic Wiring Diagram

ENFORCER 7-Day Timer
4 SECO-LARM U.S.A., Inc.
Basic Wiring
NOTES
• When connecting to a backup battery, the battery voltage must be 12VDC ONLY.
• Only a battery can be connected to the backup battery input. Do not connect a power adapter.
• When its optional N.O. switch is activated, the first person-in (first-man-in, FM) function
suspends the timer operation. If the corresponding relay is turned on before first-person-in is
activated, the relay remains on until the first-person-in switch is deactivated. Once deactivated,
the timer will turn on the last programmed function prior to the first-person-in activation.

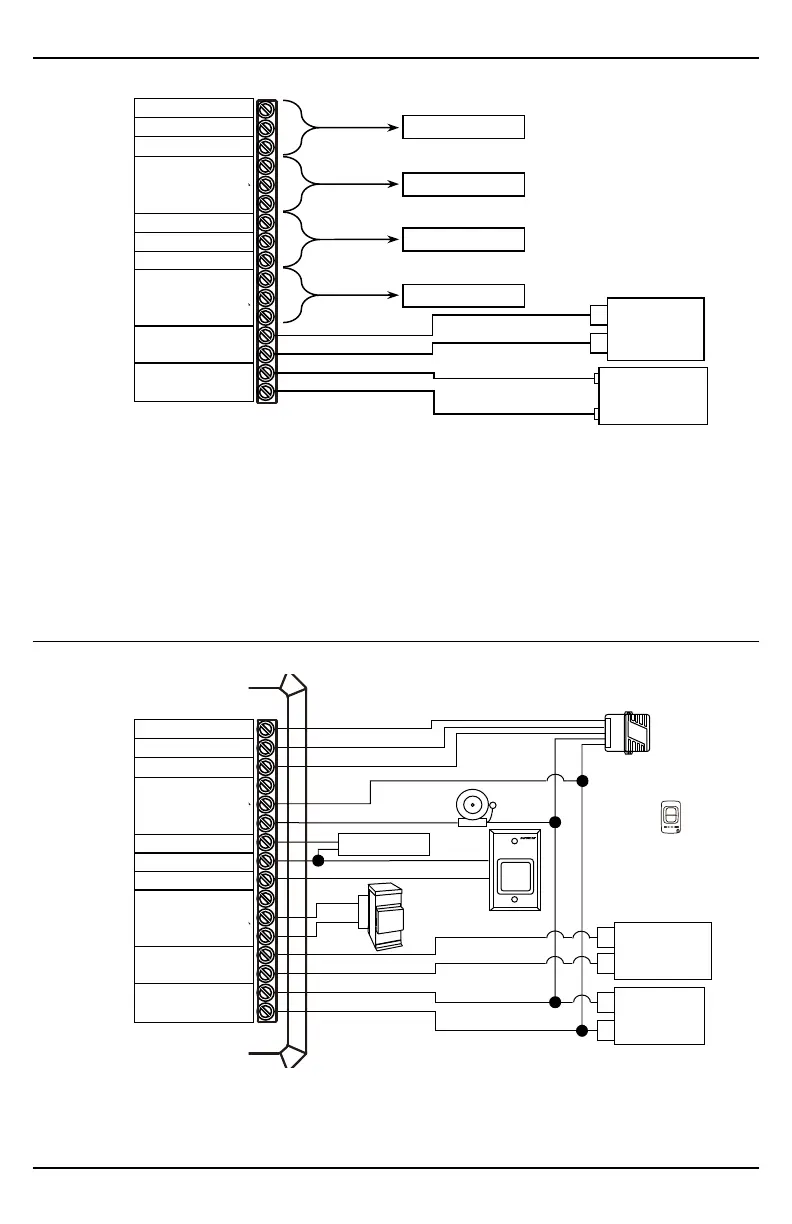

Sample Application
1
An RF receiver can be used to trigger the egress wirelessly. The receiver’s COM terminal is connected to a ground and the N.O. terminal is
connected to the timer's egress input. A second output on the RF can be connected to the first-person-in (first-man-in, FM) terminal.
2
A compatible RF transmitter can then be used to trigger the egress, via the RF receiver and the first-person-in (first-man-in, FM) function.
3
A gate operator connected to the relay output is triggered and opens a gate.
Power
–
in +
1
2 3 4 5 6 7 8 9 10
11 12 13 14 15 16
Backup
–
battery +
N.C.
Relay 1 COM
N.O.
N.C.
Relay 2 COM
N.O.
Egress 1
Egress 2
(First person)
FM 2
Ground
(First person)
FM 1
Ground
PUSH
TO
EXIT
Gate operator
3
Power supply
12~24 VAC or
10~48 VDC
–
+
Bell
+
RF receiver
1
2- Button
RF transmitter
2
Shunt switch
Backup battery
12VDC
–
–
+
+
–
Power
–
in +
1
2 3 4 5 6 7 8 9 10
11 12 13 14 15 16
Backup
–
battery +
N.C.
Relay 1 COM
N.O.
N.C.
Relay 2 COM
N.O.
Egress 1
Egress 2
(First person)
FM 2
Ground
(First person)
FM 1
Ground
Power supply
12~24 VAC or
10~48 VDC
Backup battery
12VDC
–
+
N.O. Ground switch
Device 2
Device 1
N.O. Ground switch
