EngA C-TRAC2

A C-TRAC2.1 MANUAL
IOM-12 Page 12 March 1999 R1
Discharge sensor/set-point
Blue
M Discharge set-point +
Grey
U
Discharge set point 
Orange
S Dis. S.P. centre tap
NOTE: Do not use the sensor (violet wire) on the TE 6100-960 if it is being used only as a
remote discharge set point.
Use a separate TE 6000-960 sensor for a discharge sensor
Violet M Discharge sensor +
Violet
Q
Discharge sensor 
Option 3 – Room Sensor Only
If the TE 6100-960 is being used as a room sensor only use the violet and blue wires.

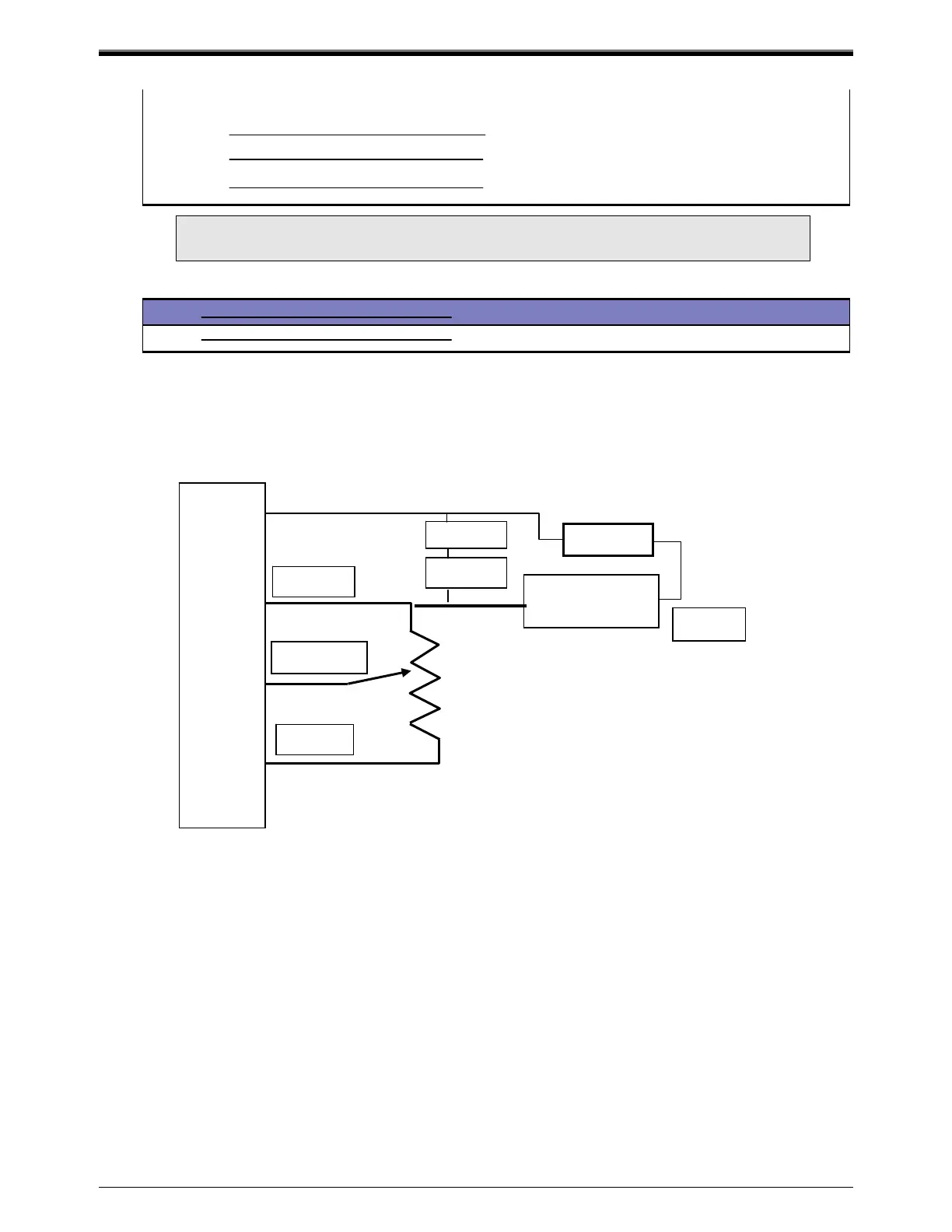

Multiple Room Sensors
Four sensors can be wired to give an average reading of room temperatures to the TRAC control. They
must be wired in a series/parallel arrangement. The drawing above drawing shows a circuit making use of
the built in sensor in the TE6100 Johnson Sensor/Setpoint assembly and using TE6000 sensors for the
other three. (The other three could also be TE6100, just using the sensor wires .)
TE 6100-960 Room or R/A Set-Point/Sensor c/w Dipswitch 3 “on”.
TE
6000
TE6000
Grey
X
V
Y
Z
Orange
Blue
Built in
TE6100
TE6000
Violet
