6 Maintenance

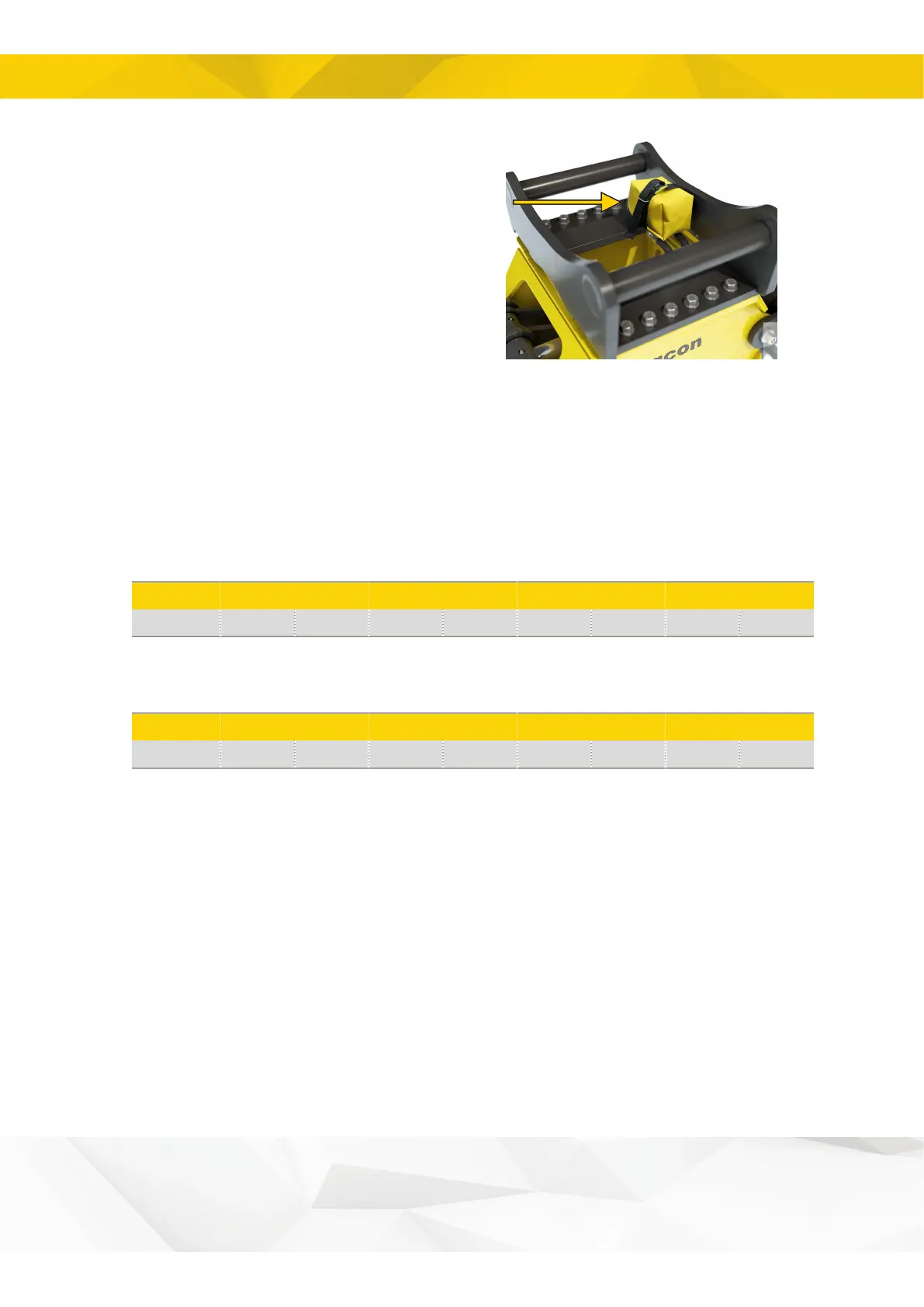

Guard
During transport and extended layups, use
the protection supplied on the EC-Oil block.
Figure 6.
6.3.2. Expander pin
The information in this section makes sure the expander pins are properly installed and
that the system is detachable in connection with service or joint bearing changes.
6.3.2.1. Recommended tightening and retightening torque
Torque recommendation
Screws
Unit
M12
M14
M16
M20
M24
M30
M36
M42
(Nm)
70
115
175
350
500
600
700
900
Table 1. Table text
Nuts: Standard height
Unit
M12
M14
M16
M20
M24
M30
M36
M42
(Nm)
65
115
175
250
350
500
600
700
Table 2. Table text
Check tightening torque during scheduled maintenance Set the recommended torque
according to Table 1. and Table 2. . Apply torque to the torque wrench until the set the
value is achieved.
Retightening
Retightening the expander pins is crucial for successful installation.
Grease the joint between the expander pin and the attachment. We recommend grease
with 3-5% molybdenum sulphide to minimize shaft wear and increase the load-bearing
capacity of the hinge.
Retightening intervals
Operating hours
- After 1 hour
- After 3 hours
