Engcon SG09 - Technical Data; Stone and Sorting Grab

8 Technical data
8. Technical data

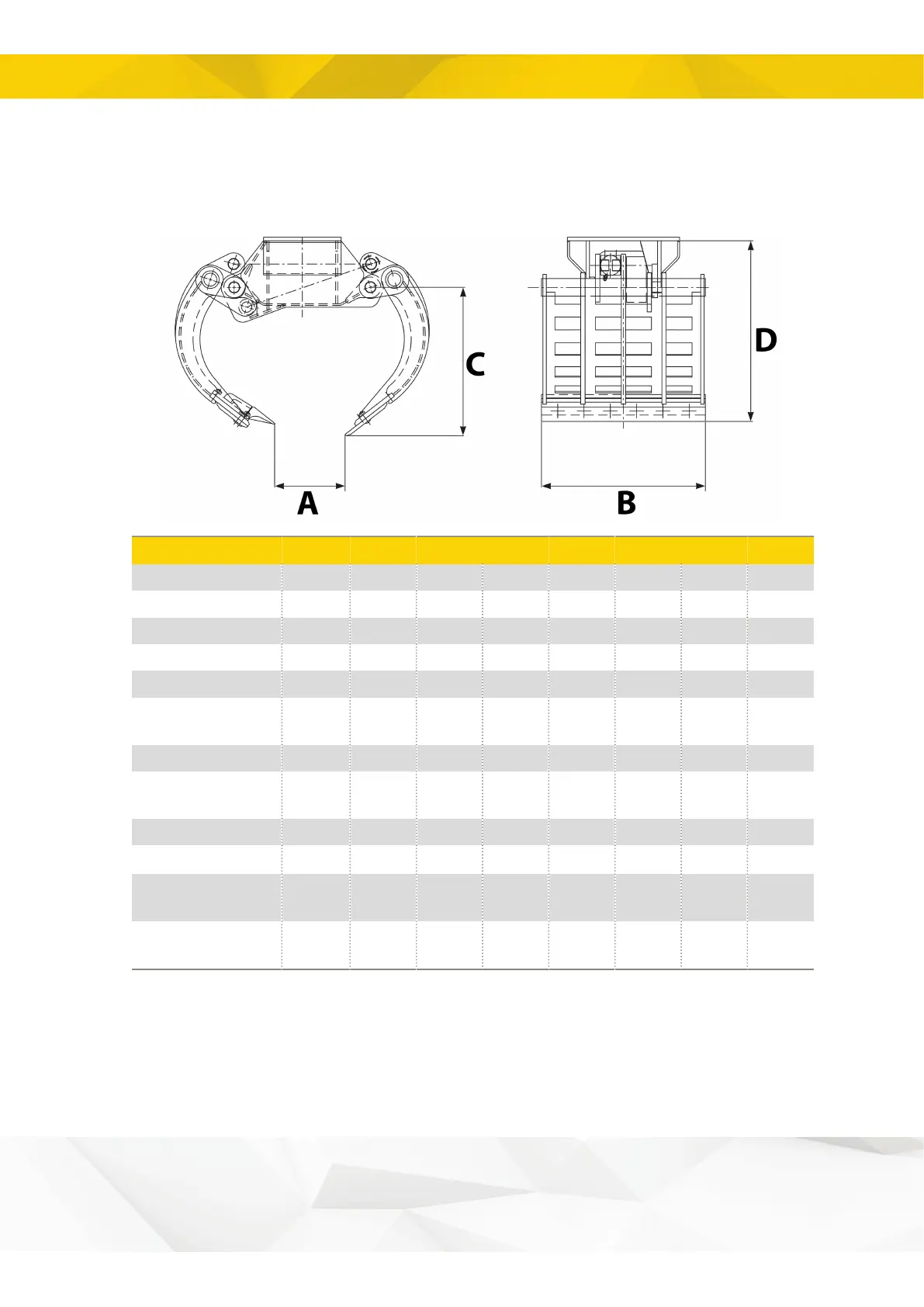

8.1. Stone and sorting grab
Description
SG03
SG06
SG09
SG12
SG19
SG26
SG33
Max grab width (A)
mm
750
1110
1365
1660
1790
1990
2575
Min grab width (A)
mm
0
0
0
0
0
0
0
Cutting width (B)
mm
400
505
628
715
860
860
1170
Jaw length (C)
mm
490
460
539
680
790
870
1180
Height (D)
mm
550
580
748
790
960
1070
1360
Volume, with side
plates
l
42
83
137
220
336
420
930
Gripping force
kN
5.7
8.7
14
15
19
25
45
Max hydraulic
pressure
MPa
22
22
22
22
22
22
22
Weight
kg*
108
180
268
425
646
755
1400
Grab area
m
2
0.12
0.17
0.24
0.34
0.42
0.52
0.85
Recommended
machine weight
tonnes
1.5 - 3
3-6
6-9
10-12
12-19
18-26
24-33
Recommended
tiltrotator/rotator
EC02
EC204,
EC206
EC206,
EC209
EC209,
EC214
EC214,
EC219
EC219,
EC226
EC226,
EC233
Table 5. *Depending on attachment
