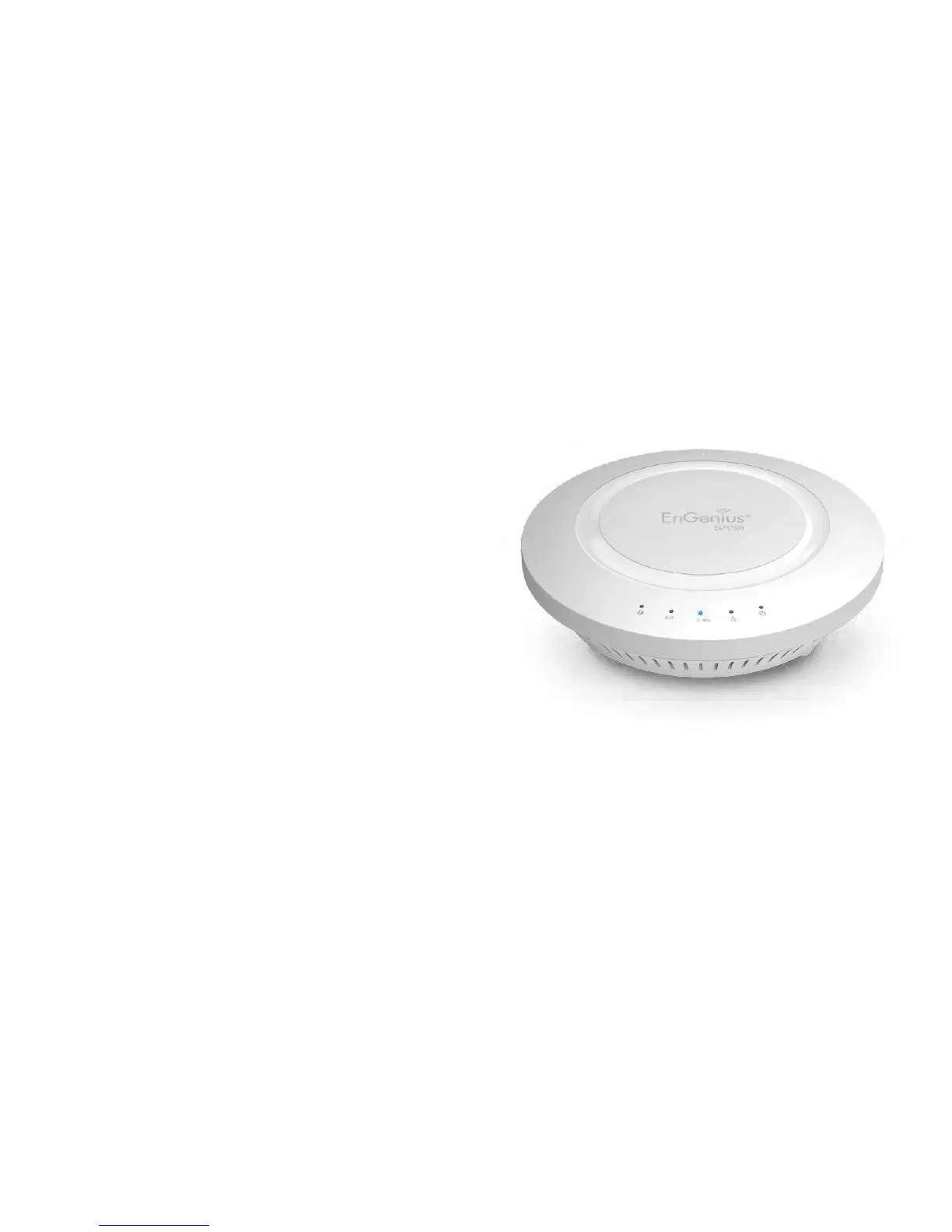

EnGenius EAP1750H User Manual

7
Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment, and mix of devices in the network. Features and specications subject to change without notice. Trademarks and registered
trademarks are the property of their respective owners. For United States of America: Copyright © 2017 EnGenius Technologies, Inc. All rights reserved.
Key Features
• Hightransmitpower,enablinglongrangeconnectivity
• SupportsIEEE802.11acwave2/b/g/nwirelessstandardswithupto400
Mbps data rate on 2.4GHz and 867Mbps data rate on 5GHz
• Twointernal4dBi(2.4GHz)andtwo5dBi(5GHz)omni-directional
 MIMOantennas(EAP1300)
• TwoRP-SMA6dBi(2.4GHz)andtwoRP-SMA5dBi(5GHz)omni-
 directionalMIMOantennas(EAP1300EXT)
• SupportWave2MU-MIMOfunctionon5GHzradio.
• SupportTxBeamformingtoenlargethetransmittingdistance.
• CanbemonitoredafterdeploymentwithEnGeniusezMasterfrom
local side and remote end side easil.
• CanbeusedwithincludedpoweradapterorviaPoEwithPoE
802.3af/at - capable Switches or Injectors
• AdvancedTrafcshapingcanbeassisteduserstocontrolupload/
download wirelss speed per SSID / per user
• BandSteeringshiftsdualbandclientstothe5GHzbandfortorelieve
network congestion on the 2.4 GHz band
• SecuredGuestNetworkoptionavailable
Introduction
The AP is 802.11 ac wave2/a/b/g/n Outdoor Access Point
with speeds up to 400 Mbps on 2.4GHz and 867Mbps
on 5GHz band. It can be congured as an Access Point,
Repeater or WDS (AP, Station & Bridge). The AP is an
affordable solution which is built in high-powered radios
Introduction - EAP1300 (EXT)
and long-range settings to replace the ordinary Access
Points that do not have the range and reach to connect to
agrowingnumberofwirelessusers.WithWave2features,
the Access Point could reduce the handling period on client
devices and network with more client devices at the same
time.

EnGenius EAP1750H Specifications

General

Modulation	64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Frequency band	2.4, 5 GHz
Operating modes	Access Point (AP), WDS Access Point (AP), WDS Bridge
Channel bandwidth	40 MHz
Channels quantity	11 channels
Transmitting power	16 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Virtual LAN features	Tagged VLAN
Spread spectrum method	DSSS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1300 Mbit/s
Quality of Service (QoS) support	Yes
Flash memory	16 MB
Internal memory	128 MB
Internal	No
Placement	Ceiling, Wall
Certification	FCC, IC, CE
Product color	White
LED indicators	LAN, Power, WPS
Cable lock slot type	Kensington
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
VPN support	IPsec, L2TP, PPTP
Security algorithms	802.1x RADIUS, MD5, PEAP, SSID, TKIP, WPA, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2
Antenna features	Integrated antenna
Antennas quantity	6
Antenna gain level (max)	5 dBi
Input current	2 A
AC input voltage	90 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Width	161.54 mm
Height	41.5 mm
Weight	290 g
