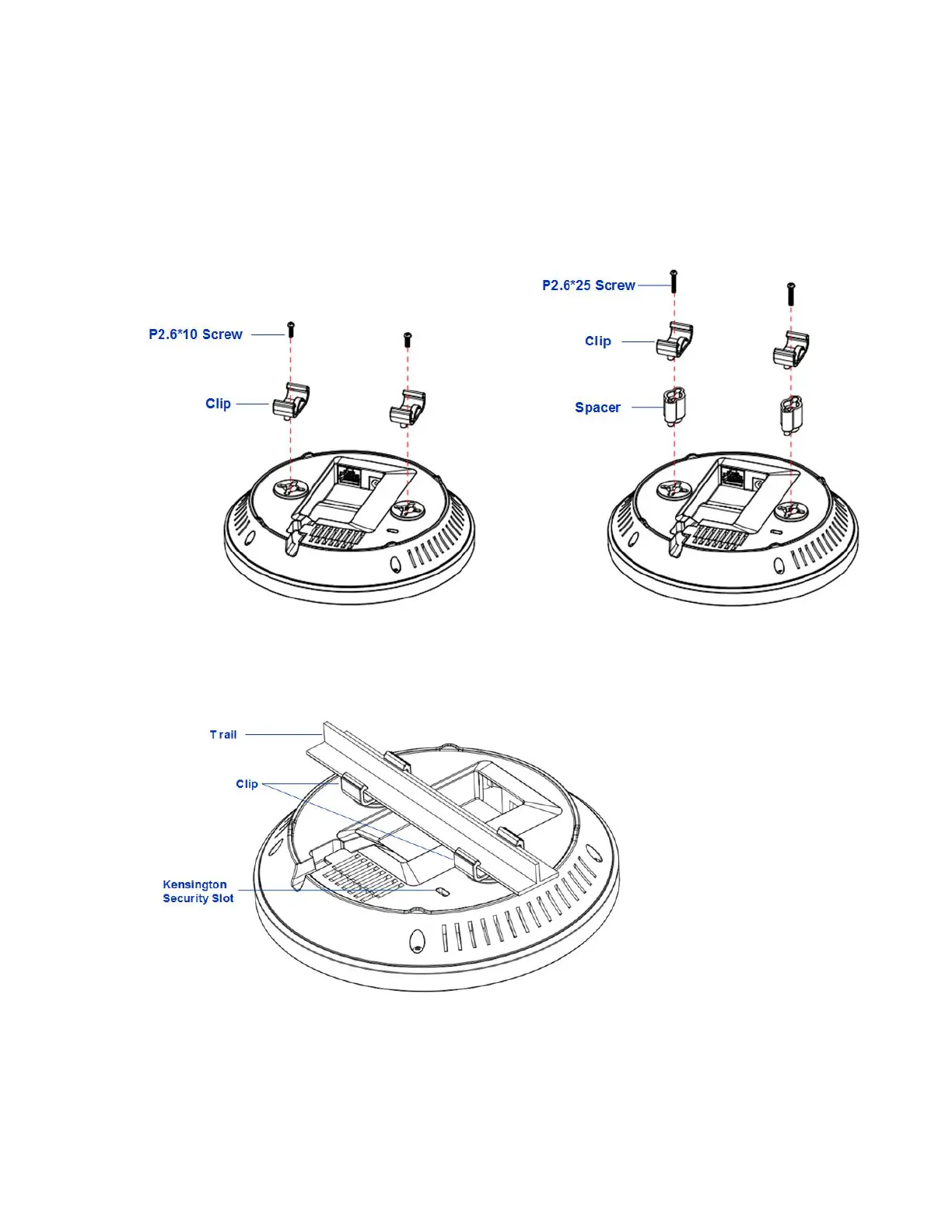

To attach the EAP600 to a ceiling using the provided T-rail connectors:
1) Attach the T-rail connectors to the bottom cover of the EAP600 using the provided short screws.
Two sizes of T-rail connectors are included in the mounting hardware kit: 15/16in (2.38cm) and 9/16in
(1.43cm).
If extra space is required to accommodate drop ceiling tiles, use the provided spacers and long screws.
2) Line up the connected T-rail connectors with an appropriately sized rail and press the unit onto
the rail until it snaps into place.
Note: To protect your EAP600, use the Kensington security slot to attach a cable lock (cable lock is not
included).
