2.6 Wiring Diagram of the Electronic Unit

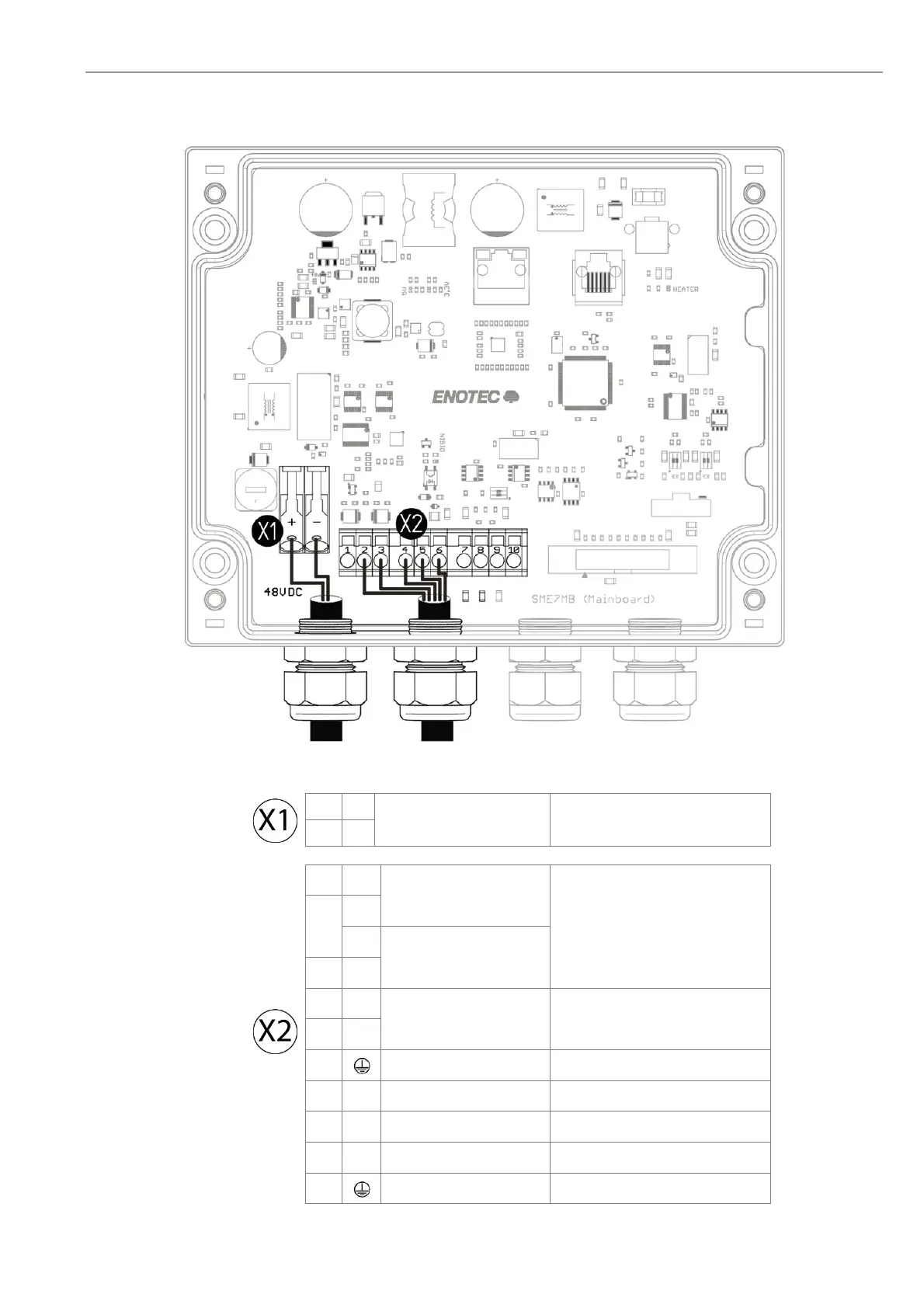

Figure 8 - Wiring diagram of the
ENSITU
®
7000 Electronic Unit
+
48 V DC 5A Power supply
-
1 +
4-20 mA Sink
O
2
analog output 2
-
+
4-20 mA Source
3 -
4 +
24V DC = Active O
2
zero point calibration
5 -
6 Shield
7
Reserved
8
Reserved
9
Reserved
10 Shield
