Enotec ENSITU 7000 User Manual

Installation and Operation Manual - ENSITU
®
7000 Installation
Doc.-ID: ENS_13062019-EN 7

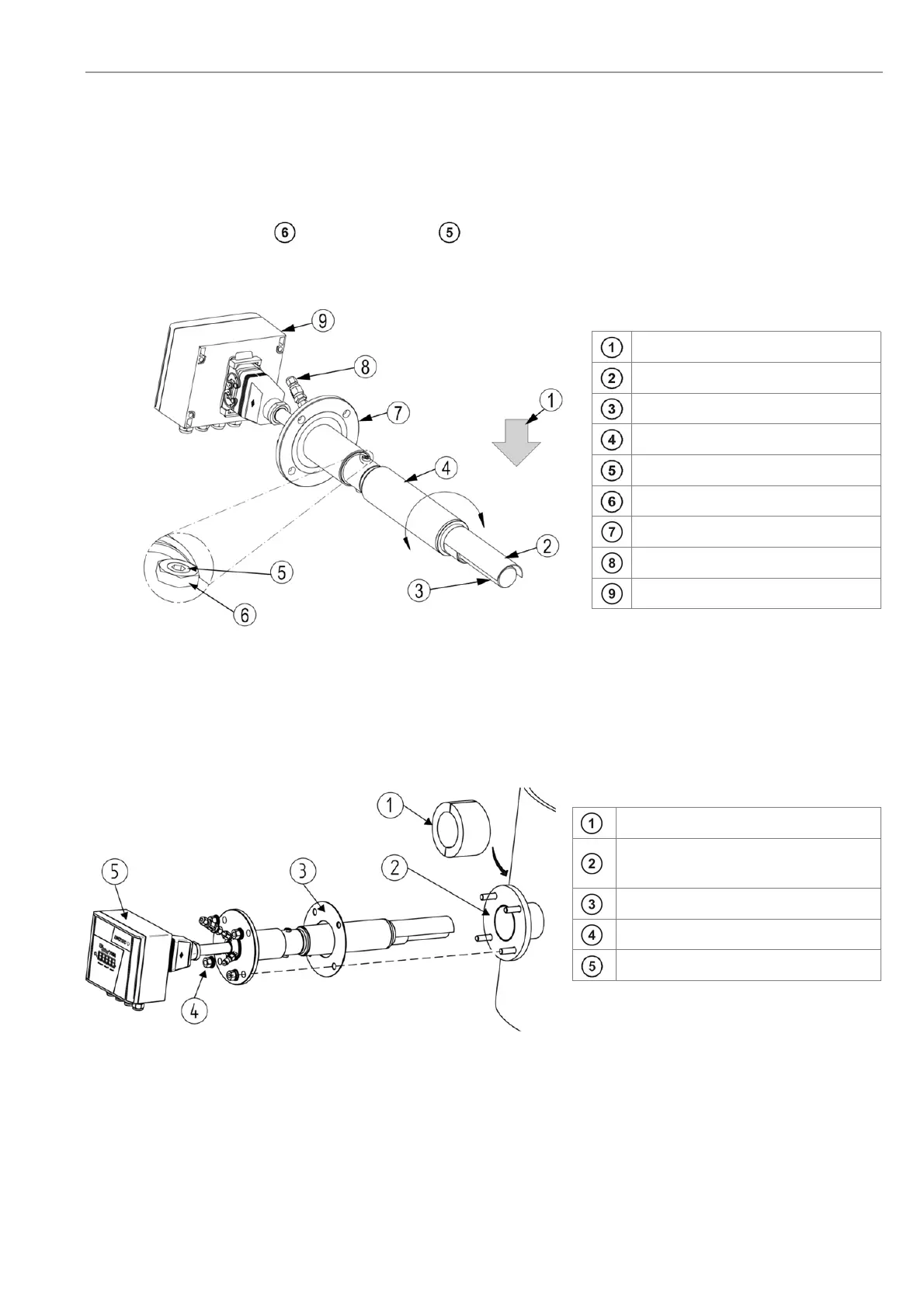

2.2 Adjusting the V-shield
The filter head is 360° rotatable and must be adjusted so that the filter abrasion shield faces the
oncoming flue gas.
Before installing the probe, the direction of flue gas flow must be determined and the filter
head assembly turned to such a position that the V-shield faces the oncoming flue gas. Loosen
the counter nut , loosen the screw and rotating the filter head / abrasion shield to the
required position, tighten the screw and counter nut.
Flue gas direction
Abrasion shield
Filter
Filter head
Screw
Counter nut
Flange
Test gas connection
Electronic unit
Figure 4 - Adjustment of the
abrasion shield
2.3 Mounting of the Probe
Insulation (customer supply)
Counter flange
(optional ENOTEC supply)
Flange gasket
Bolts
Electronic unit
Figure 5 - Mounting of the Probe – for dimensions, see chapter B.
