enphase IQ Envoy User Manual

IQ Envoy Installation and Operation
© 2017 Enphase Energy Inc. 141-00039 Rev 01
23
IQ Envoy Operation

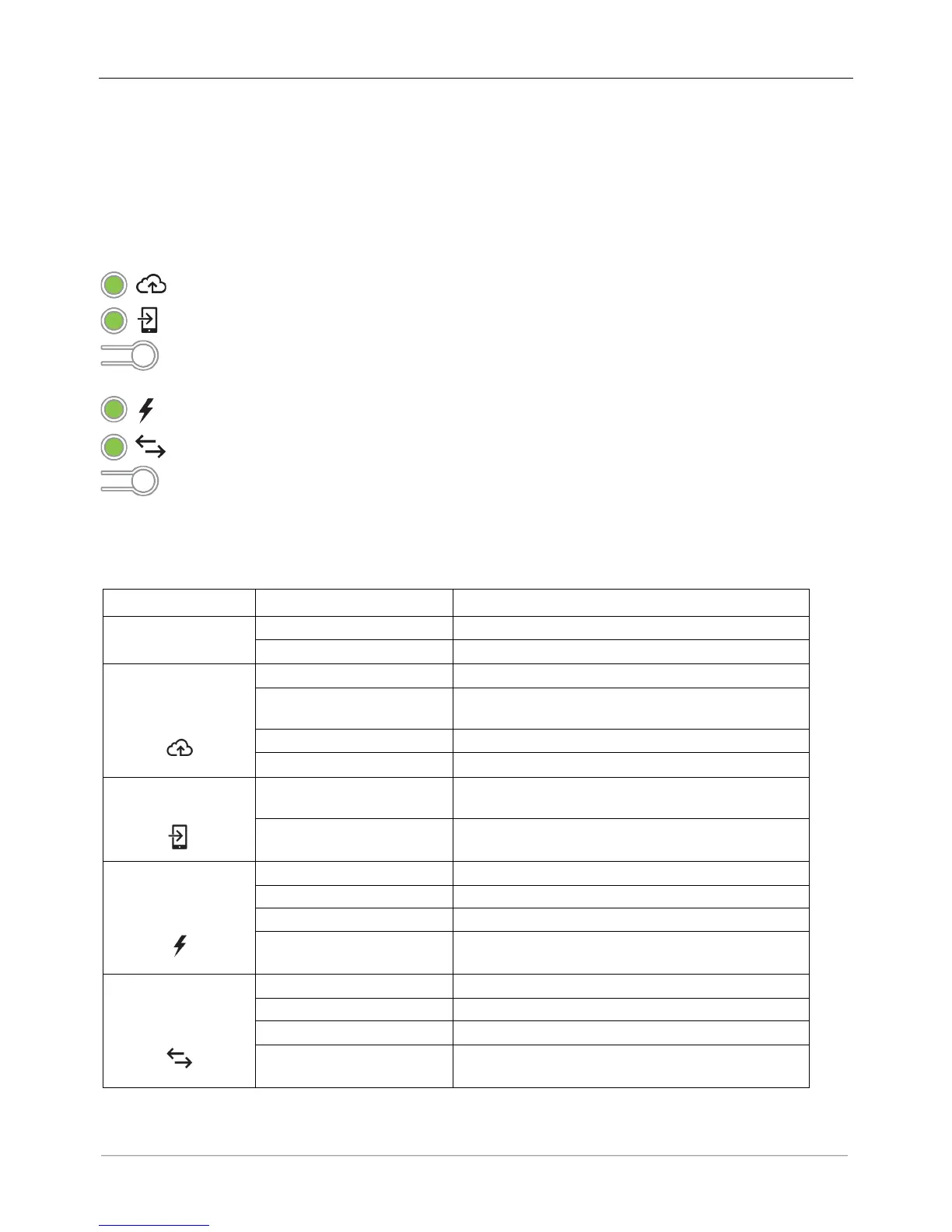

IQ Envoy Displays and Controls
You can track system installation progress with the Enphase Installer Toolkit mobile app.
The LEDs on the IQ Envoy are solid green when a function is enabled or performing as expected, flashing
when an operation is in progress, or solid amber when troubleshooting with Installer Toolkit is required.
IQ Envoy LED States
LED
State
Description
All
Flashing amber in unison
The IQ Envoy is booting up
Flashing green sequentially
Software update in progress
Network
Communications
Solid green
Communicating with Enlighten
Flashing green
WPS connection in progress or the IQ Envoy is
attempting to connect to Enlighten
Solid amber
Local network connection only
Off
No network connection
AP mode
Solid green
AP mode enabled:
Envoy Wi-Fi network available
Off
AP mode disabled:
Envoy Wi-Fi network unavailable
Power
production
Solid green
All communicating microinverters are producing
Flashing green
Microinverter update in progress
Solid Amber
At least one microinverter is not producing
Off
Microinverters are not communicating
(low light or night time)
Device
Communications
Solid Green
All devices are communicating
Flashing Green
Device scan in progress
Solid Amber
At least one device is not communicating
Off
Devices are not communicating
(low light or night time)
—
Network Communications LED: Green when IQ Envoy is connected to Enlighten.
—
AP Mode LED: Green when Envoy’s AP Wi-Fi network is available.
—
AP Mode Button: Press to enable Envoy’s AP Mode for connecting with a mobile
device. Hold for 5 seconds to start WPS connection to a router.
—
Power Production LED: Green when microinverters are producing power.
—
Device Communications LED: Green when devices are communicating with IQ
Envoy.
—
Device Scan Button: Press to start/stop a 15-minute scan for devices over the
power line.

enphase IQ Envoy Specifications

General

Model	IQ Envoy
Category	Inverter
Enclosure Rating	NEMA 3R
Grid Connection	Single-phase
Warranty	5 years
Communication	Ethernet, Wi-Fi
Monitoring	Enphase Enlighten
Operating Temperature Range	-40°C to +65°C
