enphase IQ Envoy User Manual

IQ Envoy Installation and Operation
© 2017 Enphase Energy Inc. 141-00039 Rev 01
41

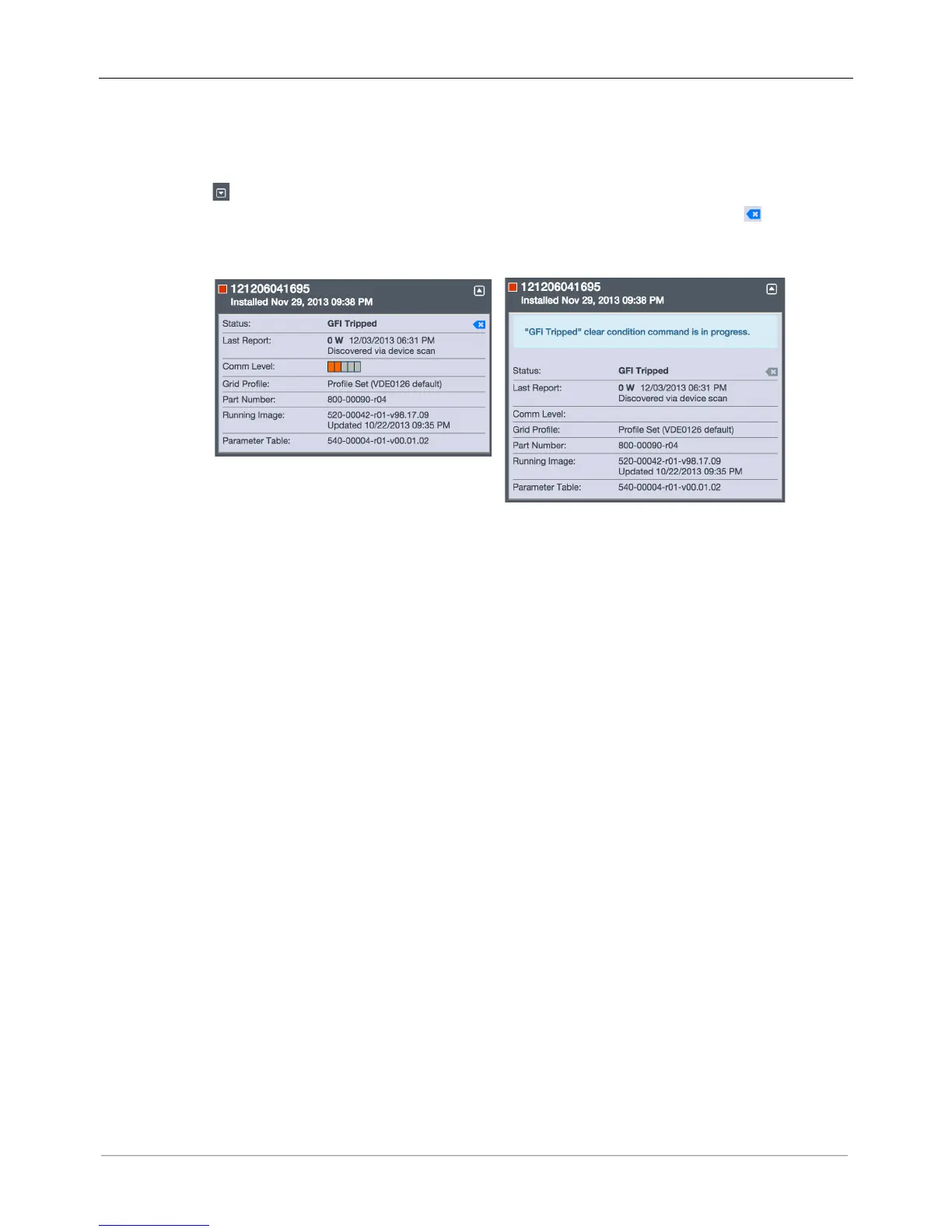

Method 2: Send the clear message using Installer Toolkit
On the list of detected microinverters, a green dot or red square appears to the left of each microinverter
serial number. A green dot indicates Status OK. A red square indicates an event for that microinverter.
• Tap the to the left of the serial number to view details for a microinverter event.
• If the microinverter status shows that there is an active GFI tripped condition, tap the to send the
clear message to the affected microinverter.
The app then indicates that a clear message was sent.

enphase IQ Envoy Specifications

General

Model	IQ Envoy
Category	Inverter
Enclosure Rating	NEMA 3R
Grid Connection	Single-phase
Warranty	5 years
Communication	Ethernet, Wi-Fi
Monitoring	Enphase Enlighten
Operating Temperature Range	-40°C to +65°C
