Overview
1-2 Introduction

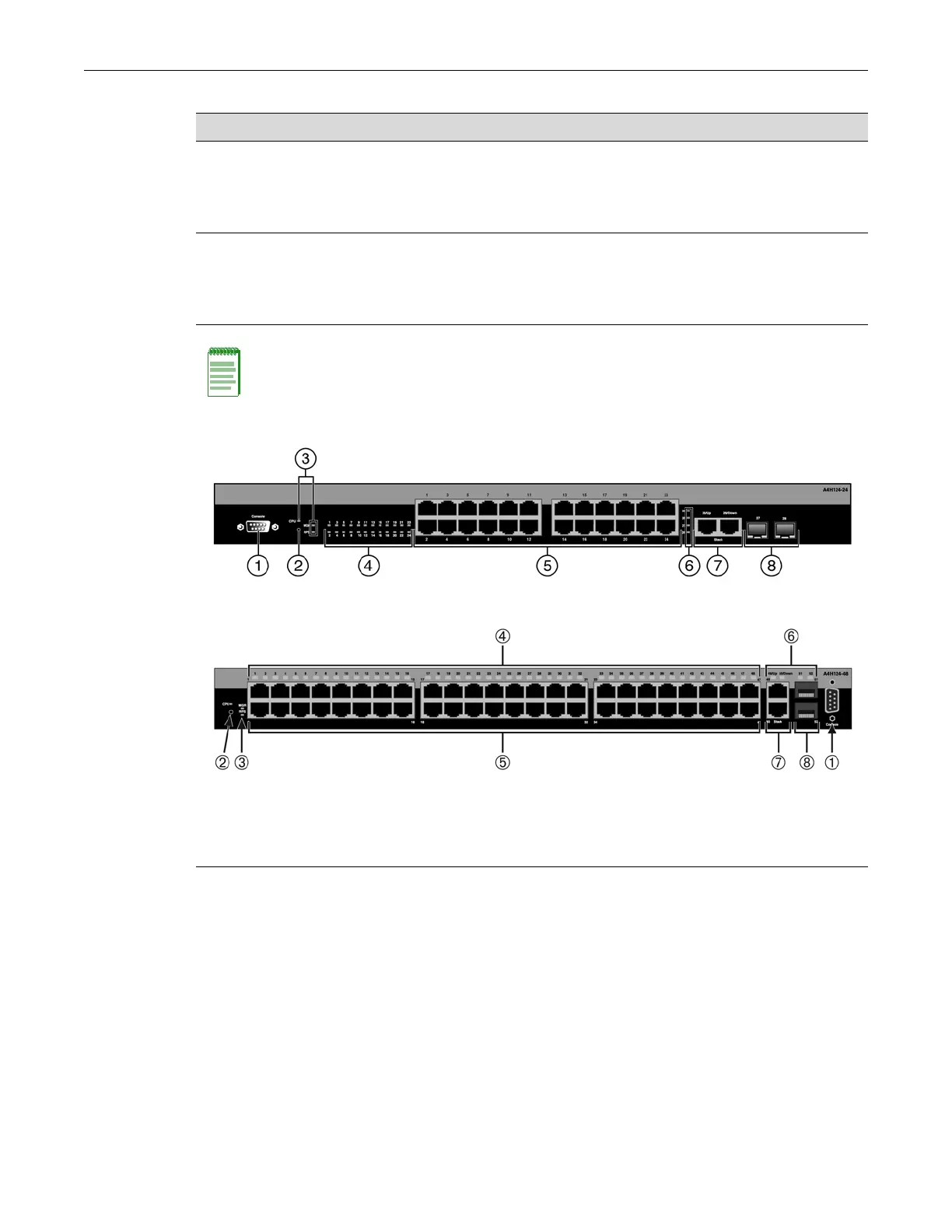

Figure 1-1 A4H124-24 and A4H124-24P Front Panel
Figure 1-2 A4H124-48 and A4H124-48P Front Panel
Figure 1-3 shows the back panels of the A4 switches.
A4H124-48
(see Figure 1-2 on page 1-2)
• 48 10/100Base-T ports.
• Two 1 Gigabit ports for stacking. Also can be used as 10/
100/1000BASE-TX RJ45 Ethernet ports.
• Two Gigabit Ethernet SFP ports
A4H124-48P
(see Figure 1-2 on page 1-2)
• 48 10/100Base-T 802.3af PoE-capable ports.
• Two 1 Gigabit ports for stacking. Also can be used as 10/
100/1000BASE-TX RJ45 Ethernet ports.
• Two Gigabit Ethernet SFP ports
Notes: Each SFP port supports the installation of 1000BASE-SX, 1000BASE-LX, or 1000BASE-T
SFP pluggable transceivers.
1 Console port 5 RJ45 10/100 Mbps ports
2 Password reset button 6 SFP and stack port status LEDs
3 Switch status LEDs 7 Stack ports
4 RJ45 10/100 Mbps port status LEDs 8 SFP port slots
Table 1-1 A4 Switch Port Types (continued)
A4 Model Ports
