Entrematic Ditec EL21 - 8 Escape Route Sensor; 9 Autocontrolled Safety Sensor

31
IP1951EN - 2014-10-06
8 Escape route sensor
9. Autocontrolled safety sensor
INTERNAL
SENSOR
01R+ R-
yellow/black
white/black
On sliding doors used in escape routes, the open-
ing on the exit direction shall be controlled by an
autocontrolled safety sensor model PAS024AMT (or
equivalent).
If you use a PAS024AMT sensor, make connections as
indicated on pages 24-25.
Check that the activation output is set to CURRENT [5]
(see PAS024AMT installation manual).

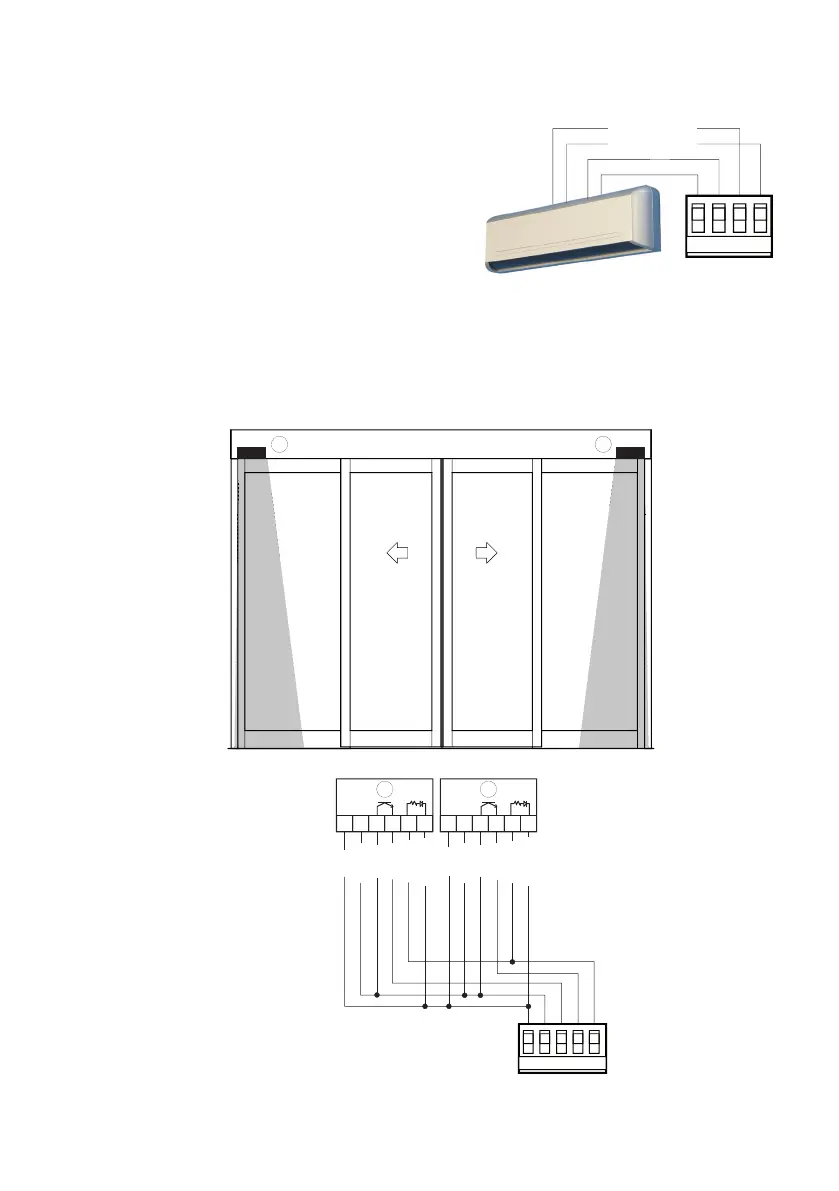

Autocontrolled safety devices can be connected as shown in the figure.
Set DIP10=ON on each PASAT3.
A
A
B
B
12
-+
24V
3456 12
-+
24V
3 456
RED
GREEN
BLUE
WHITE
BROWN
ORANGE
RED
GREEN
BLUE
WHITE
BROWN
ORANGE
OPEN SAFETY
016A 6B 41
INTERNAL
SENSOR
YELLOW/BLACK
WHITE/BLACK
