9.2

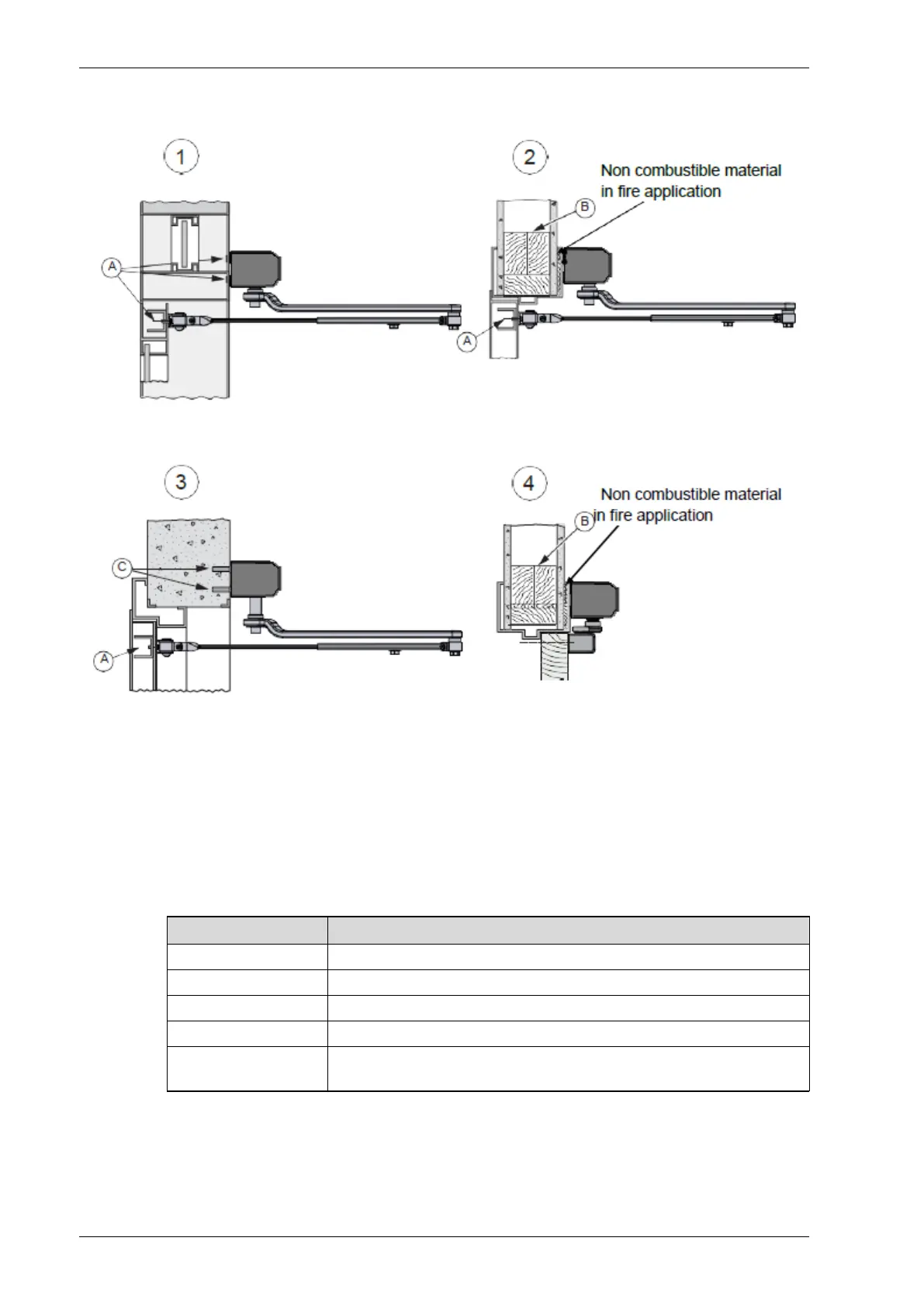

Installation examples
1
Aluminum profile system
2
Plasterboard wall
3
Reinforced concrete wall and brick wall
4
Plasterboard wall
A Steel reinforcement or rivet nut
B Wood reinforcement
C Expansion-shell bolt (for brick wall min. M6x85,
UPAT PSEA B10/25)
9.3
Fastening requirements (but not included)
Base material
Steel
Aluminum
Reinforced concrete
Wood
Brick wall
Minimum requirements of wall profile*
5mm (3/16")**
6mm (1/4")***
min. 50mm (2") from the underside
50 mm (2")
Expansion-shell bolt, min. M6x85, UPAT PSEA B10/25, min. 50mm (2")
from the underside
* Entrematic minimum recommended requirements. Building Codes may give different specifications.
** Thinner wall profiles (3-5 mm) must be reinforced with rivet nuts.
*** Thinner wall profiles (4-6 mm) must be reinforced with rivet nuts.
