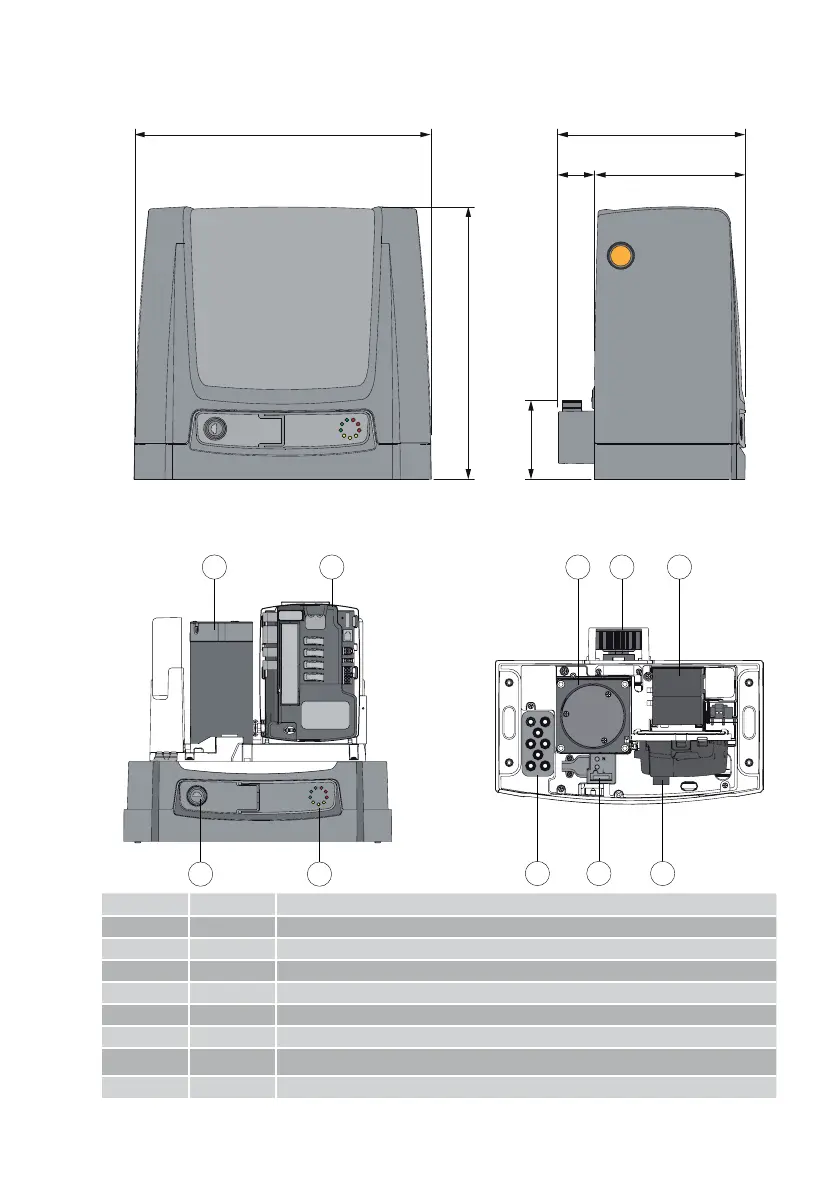

5. Dimensions
335
307 (NES 300-400)
325 (NES 600-1000)
90
210 (NES 300-400)
220 (NES 600-1000)
170 (NES 300-400)
180 (NES 600-1000)
40
6. Main components
Ref. Code Description
8 Motor
9 Control panel
10 Diagnostic circuit
11 Key release
12 Pinion
13 Battery kit
14 Cable inlet
15 Power supply terminal
8
11 10
9 8 13
91514
12
