INSTALLING PROPANE CYLINDER IN CABINET
To install the propane cylinder open the doors to the cabinet and place the propane cylinder inside the cabinet
and drop in the hole provided in the bottom shelf of the cabinet.
Secure the tank to the cabinet using the attached propane tank holder. Simple undo the wing nut provided, slide
the mount over the collar of the propane tank and tighten the wing nut until secure. (SEE DIAGRAMS BELOW)
Install the gas line from the propane cylinder as shown on the following page.
Clamp the hose away from the grease
pan using the small hose clamp found in
the hardware bag.
The cabinet doors have been removed
for clarity.

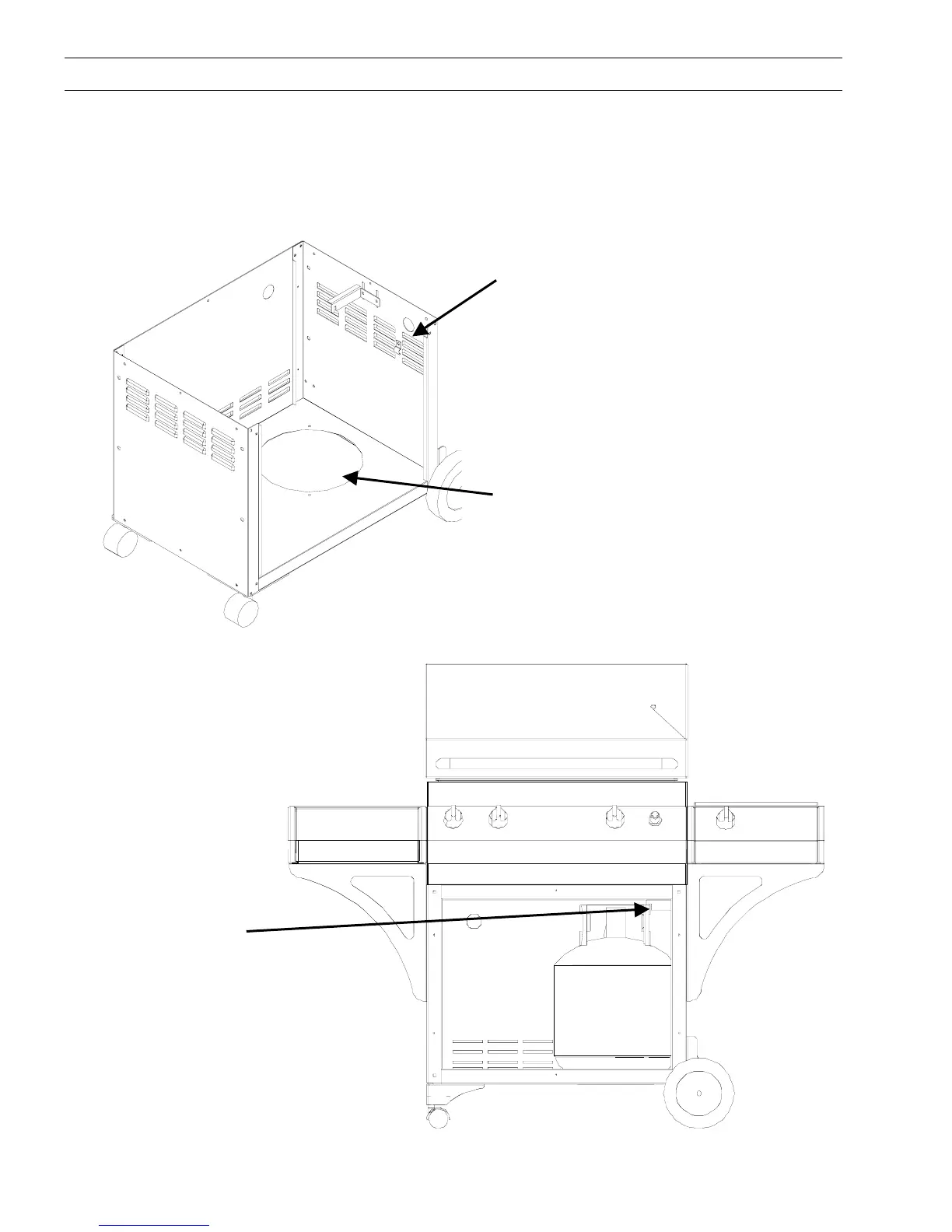

Open the cabinet doors, and place the
propane cylinder into the hole provided
in the bottom shelf of the unit.
Secure the propane cylinder by
undoing the wink nut and sliding
the bracket so that it will slide
over the collar on the propane
cylinder.
Tighten the wing nut until the tank
is secure.
