HOOKING UP TO GAS SUPPLY
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors in the vicinity of this or any other
appliance.
Other LPG cylinder not connected to the appliance should not be stored in the vicinity of this or any other
appliance.

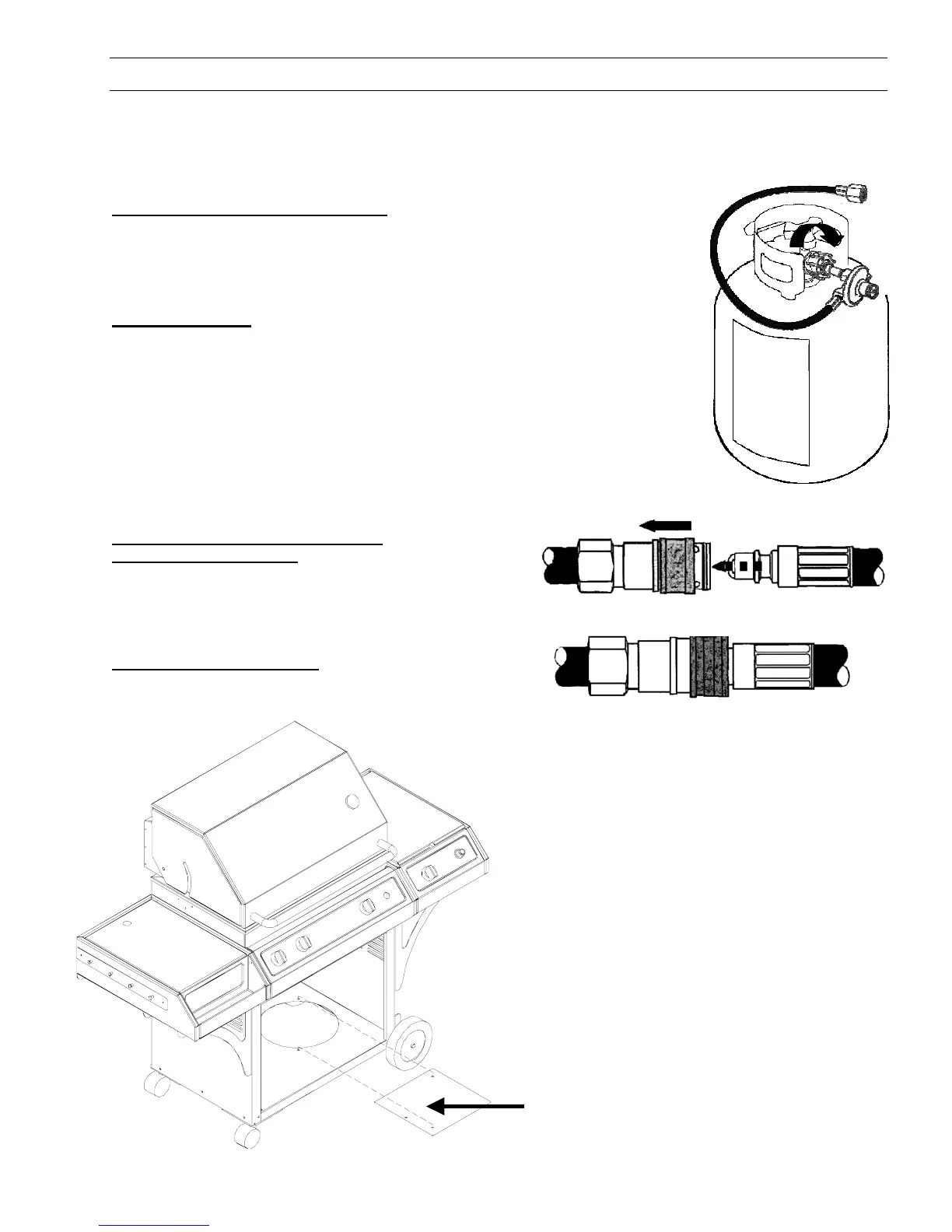

Push sleeve back
A hose and pressure regulator must be used. Replacement hose and regulator must be that supplied by the
manufacture.
PROPANE GAS (LPG) CONNECTION:
1 Ensure that the burner control knobs are in the OFF position.
2 Install the LP gas cylinder in the hole provided in the base of the Gas Grill.
3 Connect the gas supply regulator. Insert the nipple of the valve coupling
into the tank valve and tighten the connection by turning the connection
clockwise while holding the regulator with the other hand.
TEST FOR LEAKS:
Before operating the Gas Grill:
1 Ensure that all burner control knobs are in the OFF position.
2 Connect the gas supply hose and open the shut off valve on top of the LPG
cylinder.
3 Use a spray bottle or a brush and apply a soap and water solution (half
warm water and half liquid dish soap) to all gas line connections and joints.
4 Look for small bubbles. The appearance of these bubbles indicates a gas
leak. Turn off the gas supply and tighten the joint were the bubbling
occurred. Turn the fuel supply back on and test with the soapy solution
once again. Repeat this procedure until all gas
leaks have been repaired.
NATURAL GAS (NG) CONNECTIONS
TO CONNECT GAS LINE:
1 Push back the sleeve on the socket as shown
below.
2 Insert the plug and release the sleeve.
3 Push the plug until the sleeve snaps in forward to
lock the plug in place.
TO DISCONNECT GAS LINE
1 Push the sleeve back and pull the plug out of the
socket.
A qualified service agency or installer should perform
all gas supply plumbing. In the U.S.A., the supply
connection must be made in accordance with local
codes or in the absence of local codes, with the
National Fuel Gas Codes, ANSI Z233.1. In Canada
the gas supply connection should be carried out in
accordance with the authority having jurisdiction and
in accordance with the requirements of the CAN/CGA
1-B149.1 and 2 installation code. A manual shut off
valve must be installed between the Gas Grill and the
fuel supply system.
The outdoor cooking appliance must be disconnected
from the fuel supply system before any pressure
testing of the system exceeds ½ psi (3.5kPa)
Check the rating label located on the back of this
appliance to confirm that the burner valves and
orifices are configured to burn Natural Gas. If required
install a Natural Gas conversion kit available at your
ENVIROGRILL dealer.
COVER PLATE FOR UNITS USING
NATURAL GAS, TO COVER LP CYLINDER
HOLE. USE TWO 1/4” NUTS AND BLOTS
PROVIDED TO SECURE.
13
Release sleeve
To Next Page
