Installation
CLEARANCES TO COMBUSTIBLES - FREESTANDING:
When installing this unit on a combustible floor (for example linoleum, hardwood flooring) a non-
combustible hearth pad must be under the unit. The pad must extend at least the width of the appliance
[22” (558 mm)] and at least the depth of the appliance plus 6” (153 mm) in front of the appliance [29
” (756 mm)].
Side wall to unit - 6 inches (15 cm)
Back wall to unit - 1 inches (2.5 cm)
Corner to unit - 1 inches (2.5 cm)
Door front to edge of floor protection
- 6 inches (15 cm)
30"
(76 cm)
48"
(122 cm)
36"
(91cm)

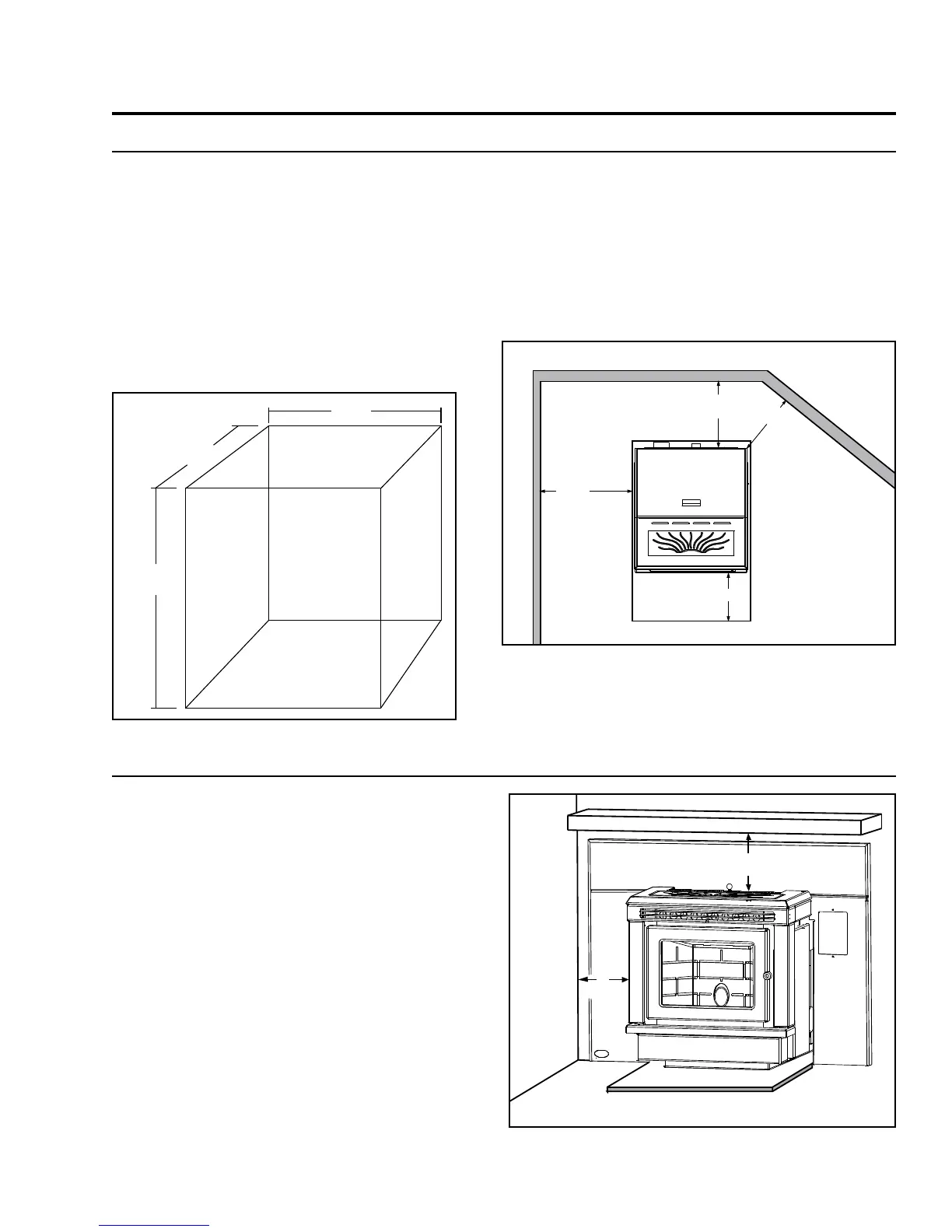

Figure 8: EF2 Freestanding Clearance to Combustibles.
Minimum Alcove width - 36 inches (91 cm)
Minimum Alcove height - 48 inches (122 cm)
Minimum Alcove depth - 30 inches (76 cm)
Figure 9: EF2 Freestanding Minimum Alcove Size.
CLEARANCES TO COMBUSTIBLES - FIREPLACE INSERT:
10" (25.4 cm) Mantel
8"
(20.3 cm)
8"
(20.3 cm)
Side Wall
Floor Protection; Minimum 6" (15 cm) in front of door
Figure 10: EF2 Fireplace Insert Clearance to Combustibles.
Refer to Figure 10.
Side wall to unit - 8 inches (20.3 cm)
Mantel projection - 10 inches (25.4 cm)
Mantel to top of unit - 8 inches (20.3 cm)
Top facing to unit - 8 inches (20.3 cm)
Side facing to unit - 6 inches (15.2 cm)
Floor protection - 6 inches (15.2 cm)
on either side and to the front must
be protected by non-combustible material.
These dimensions are minimum clearances but it is
recommended that you ensure sufficient room for
servicing, routine cleaning and maintenance.
13
