REMOVAL:
When maintenance is required on the
unit the surround must be removed.
Follow steps 3 through 6 in reverse
order.
The side panel can remain attached
because they swing forward for easy
access (refer to Figure 36).
Installation

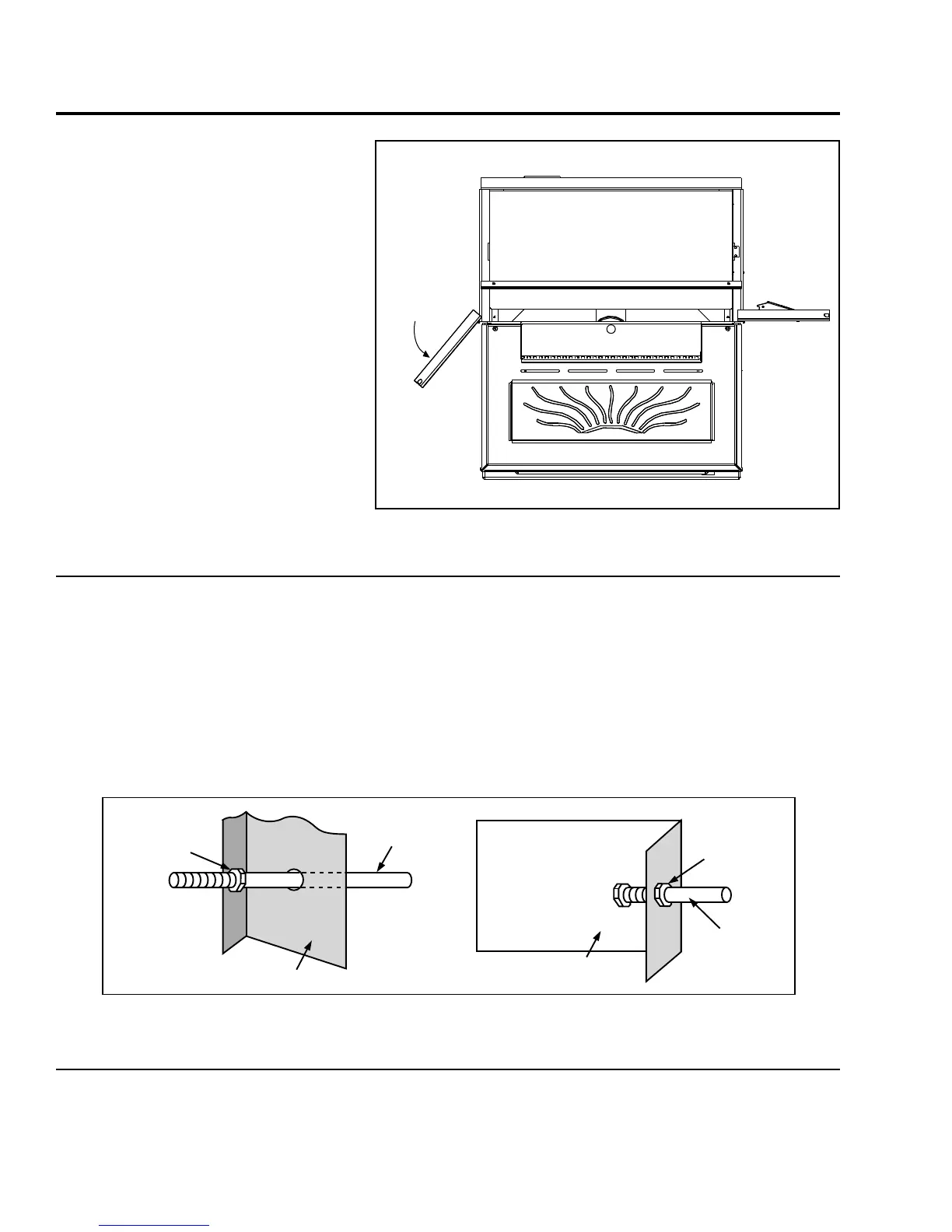

Figure 36: Side surround panel swings forward.
SLIDER/DAMPER INSTALLATION:
Not for installation in Germany.
This is used to regulate the airflow through the pellet stove.
1. Remove the slider rod (short rod with knob and nuts) from their package and open the left side
panel.
2. Remove the knob and outer nut from the knob. Push the rod through the hole in the slider. Place the
lock nut on the rod and tighten, leaving a
1
/32” (1 mm) gap between the slider and the other nut.
3. Make sure the slider moves freely. Close the side panel and tighten screws after placing the rod
through the panel. Screw the knob onto the slider.
Figure 37: Slider / damper assembly.
THE TUBE SCRAPER ROD:
Put the stainless steel rod through the hole in the heat exchanger located behind the top louvers. Thread
the rod into the scraper plate, which is visible from inside the firebox by removing the top baffle.
26
