Figure 20: Corner Installation.
Installation

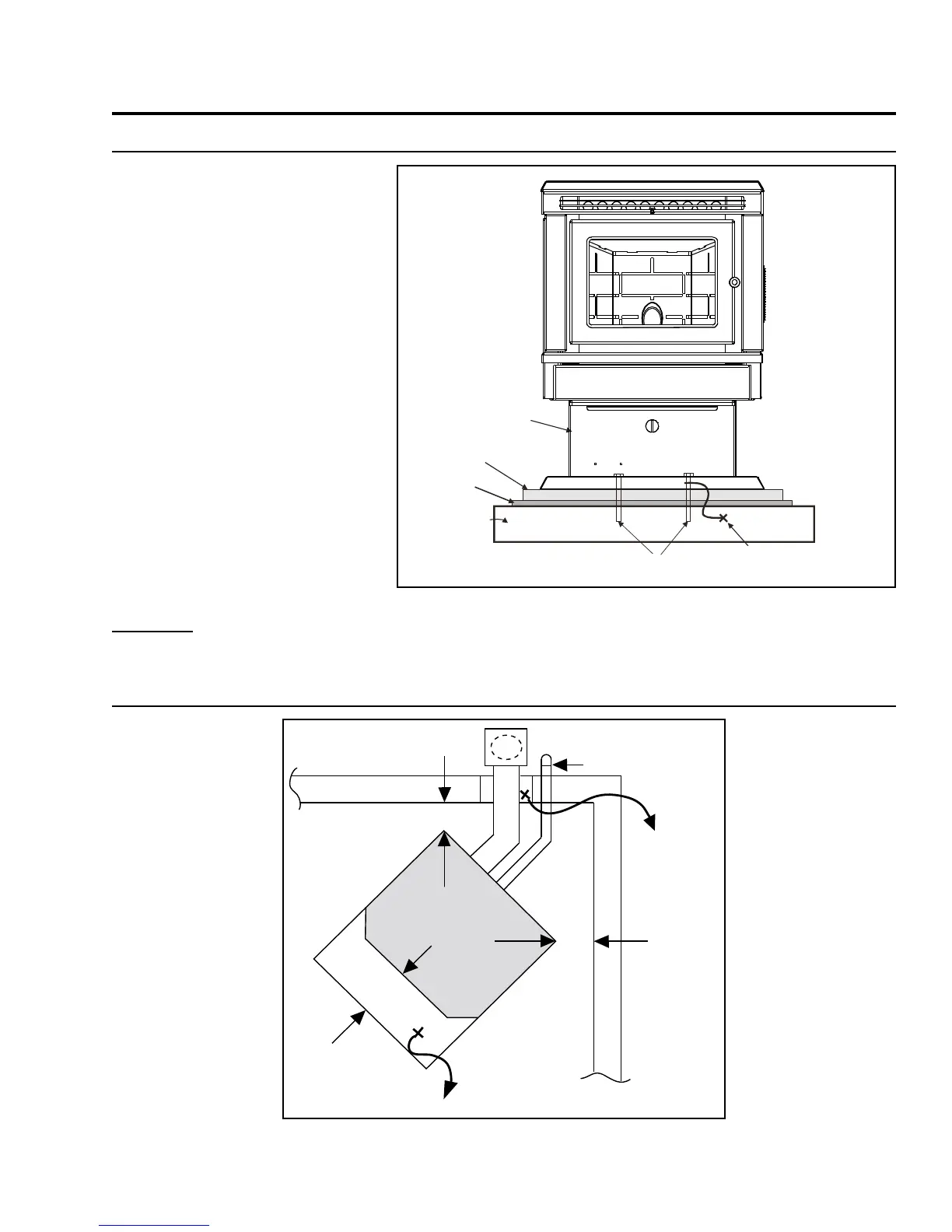

MOBILE HOME INSTALLATION - FREESTANDING:
2" (5 cm)
2"
(5 cm)
6"
(15 cm)
Floor Protection
Fresh Air Intake
Wall thimble
manufactured
by pellet vent
manufacturer.
ENVIRO EF2
1
/4” LAG BOLTS
SECURELY FASTENED
GROUND WIRE DIRECTLY
TO METAL CHASSIS
HEARTH PAD
FLOORING
STEEL FRAME
● Secure the heater to the floor
using the (2) two holes in the
pedestal.
● Ensure the unit is electrically
grounded to the chassis of your
home (permanently).
● Do not install in a room people
sleep in.
● Outside fresh air is mandatory.
Secure outside air connections
directly to fresh air intake pipe
and secure with three (3) screws
evenly spaced.
CAUTION: THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALL
AND CEILING/ROOF MUST BE MAINTAINED.
CORNER THROUGH WALL INSTALLATION - FREESTANDING:
Figure 19: Mobile home installation.
17
