Installation
MASONRY FIREPLACE INSTALLATION - FIREPLACE INSERT:
The fireplace insert model requires a surround panel and a pedestal. When installing this unit, ensure
that the pedestal is removed from the inside of the hopper and installed on the bottom of the unit (see
“PEDESTAL INSTALLATION”).
Assemble surround panel (see “INSTALLATION OF CONTROL PANEL INTO SURROUND PANEL - FPI AND BIH” and
“INSTALLATION AND REMOVAL OF THE SURROUND PANELS - FPI AND BIH”) before starting installation.
A non-combustible hearth pad must cover combustible flooring underneath, as well as 6” (150 mm) in
front of the heater and 6” (150 mm) to the side of the heater.
1. Install the hearth pad.
2. Lock the fireplace damper in the open position.
3. Install a positive flue connector at the fireplace damper.

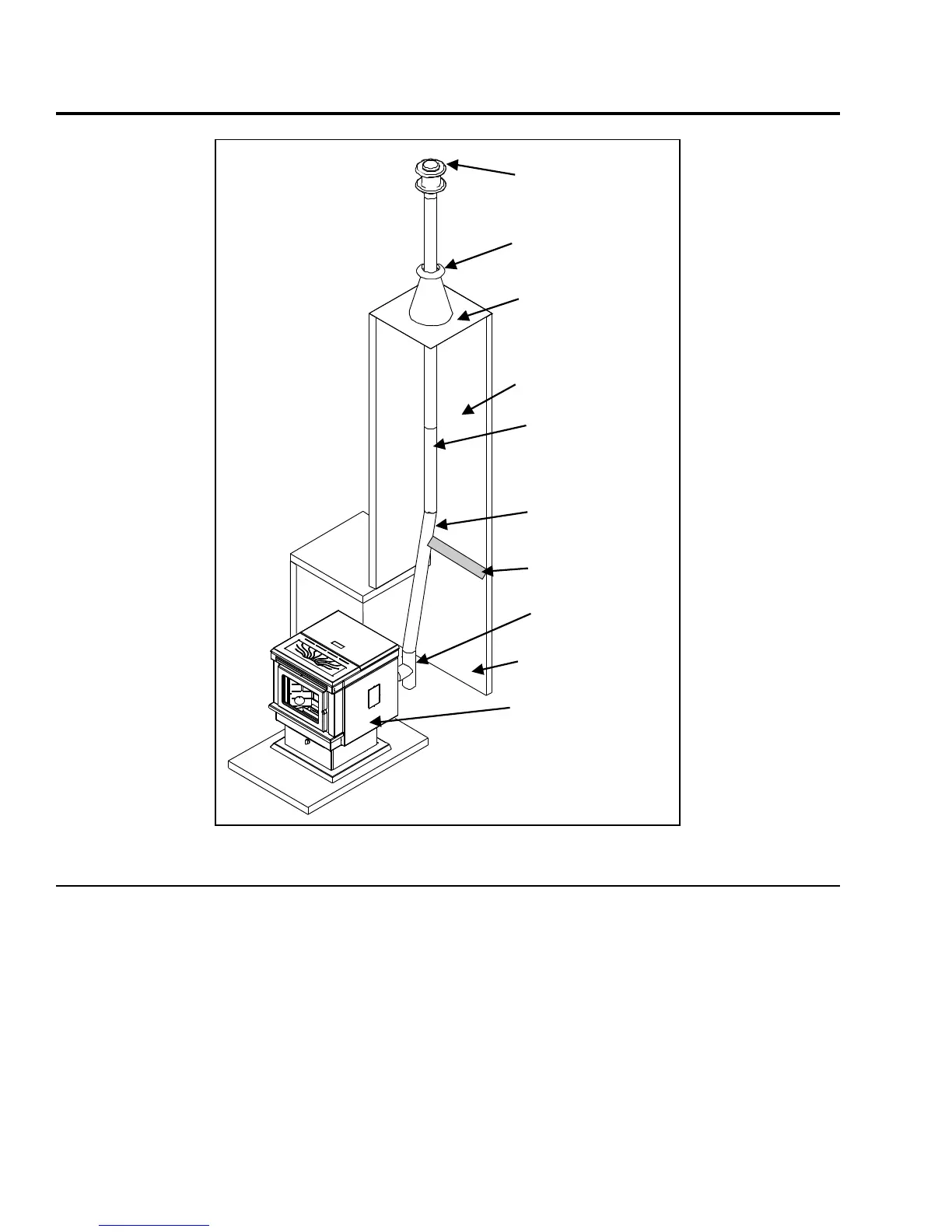

Figure 28: Freestanding hearth mount installation overview.
