Enviro EF-119 User Manual

Installation
CLEARANCES TO COMBUSTIBLES - BUILT-IN HEATER:
Refer to Figures 10 and 11.
Side wall to unit - 8 inches (20.3 cm)
Mantel projection - 10 inches (25.4 cm)
Mantel to top of unit - 8 inches (20.3 cm)
Top facing to unit - 8 inches (20.3 cm)
Side facing to unit - 6 inches (15.2 cm)
Floor protection - 6 inches (15.2 cm)
(on either side and to the front must be protected
by non-combustible material)
Sides and rear walls to standoffs: - 0 inches (0 cm)
Recess depth: - 11 inches (30 cm)
12"
(30.5 cm)
30"
(76 cm)
33"
(84 cm)
6"
(15 cm)
6"
(15 cm)
Floor Protection

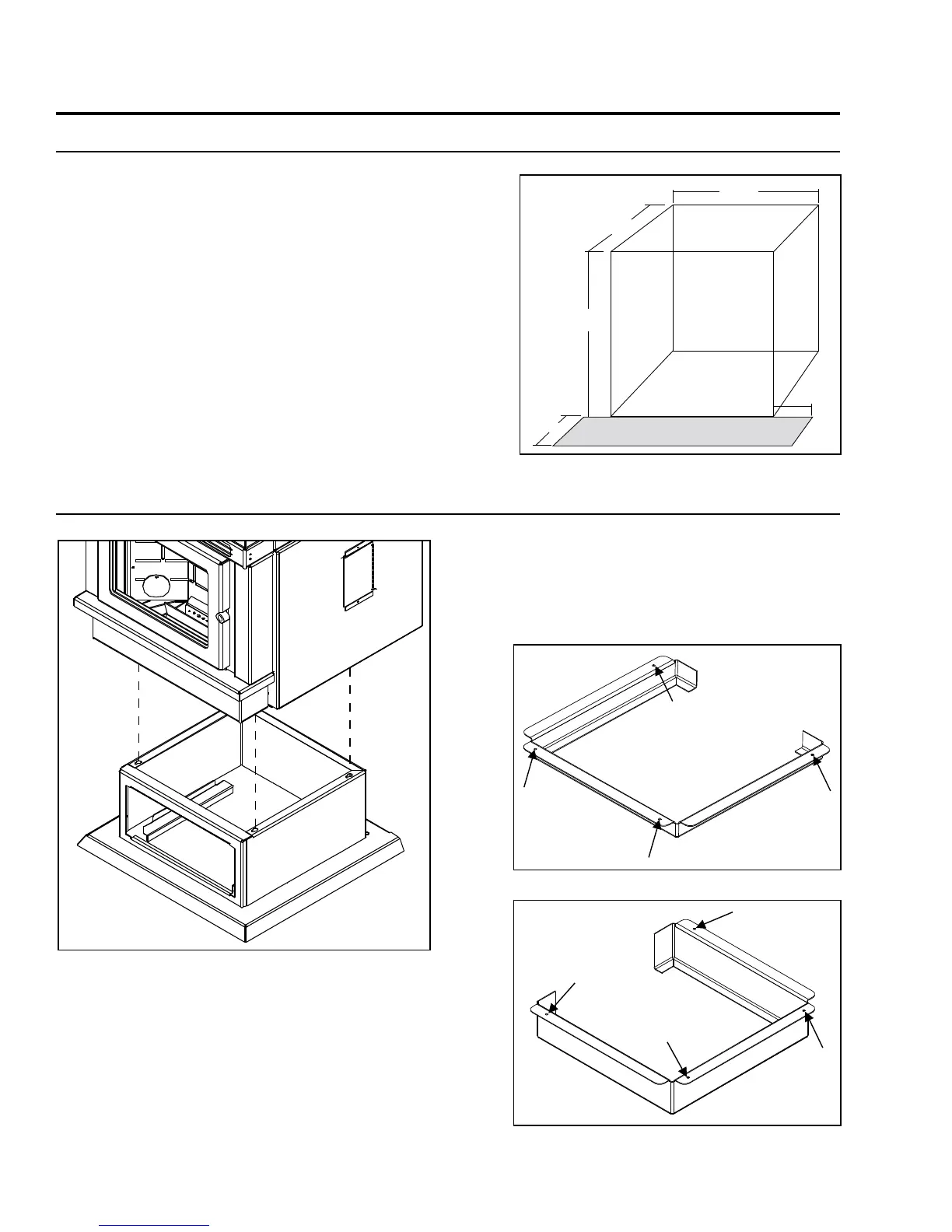

Figure 11: EF2 Built-In Heater recommended
framing.
PEDESTAL INSTALLATION:
Figure 12: Freestanding Pedestal.
Figure 13: Fireplace Insert Pedestal.
Figure 14: Built-In Heater Pedestal.
• Place the unit on its back on the pallet.
• Back the four (4)
5
/16” hex head screws in the base off
three (3) to four (4) full turns.
• Align the keyholes in the pedestal with the screws, lock
into place.
• Secure the two (2) pieces by tightening the four (4)
screws from the inside of the pedestal for the freestanding
or from the outside of the pedestal for the FPI or BIH.
The all models comes with a pedestal that has to be
attached prior to installation:
• Remove the unit from the box
• Remove the freestanding pedestal from the box.
Remove the FPI or BIH pedestal from the hopper.
14
