Enviro EF-V EVOLUTION - Exterior Mounted Exhaust Blower Installation; Exhaust Blower Housing Installation and Sealing; Vent Pipe and Wall Thimble Connection

16

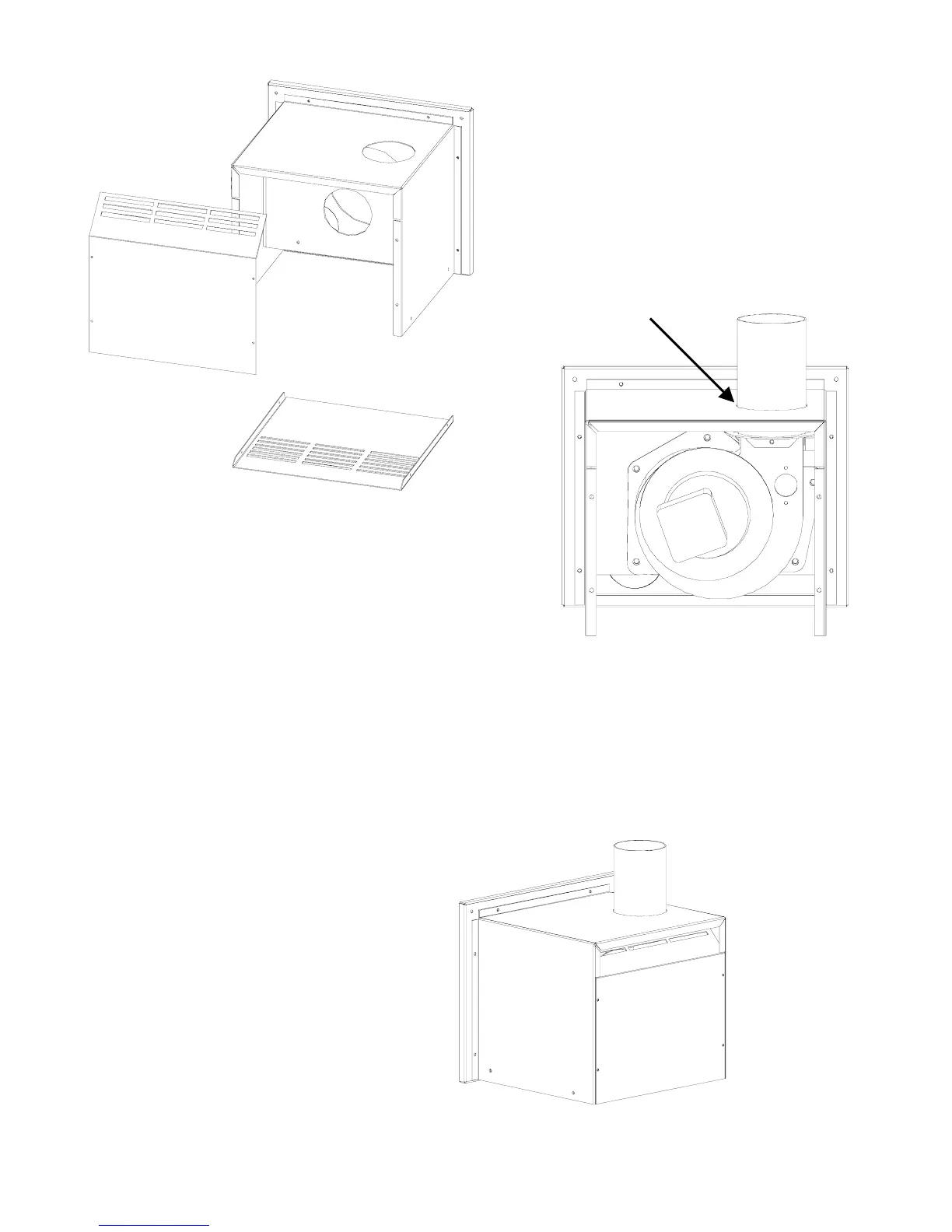

7. Remove the front and bottom sections of the EXTERIOR EXHAUST BLOWER HOUSING and install the
exhaust blower ensuring that the gasket
material is not damaged and is properly
positioned.
8. Re install the top and bottom sections of
the exhaust blower housing and place a
bead of high temperature silicone around
the exhaust pipe were it exits the exhaust
blower housing to create a watertight
seal.
Replace the back grill of the stove and ensure the four screws are tightened.
Follow the procedures for through wall installations. Place the unit in the desired location. Cut hole in the wall at
the desired location.
Apply normal venting practices when installing the vent pipe. Start by installing a pipe adapter, then a short
section of pipe or an adjustable section through a wall thimble to maintain clearances to combustibles.
HIGH
TEMPERATURE
SILICONE
COMPLETED
EXHAUST BLOWER
