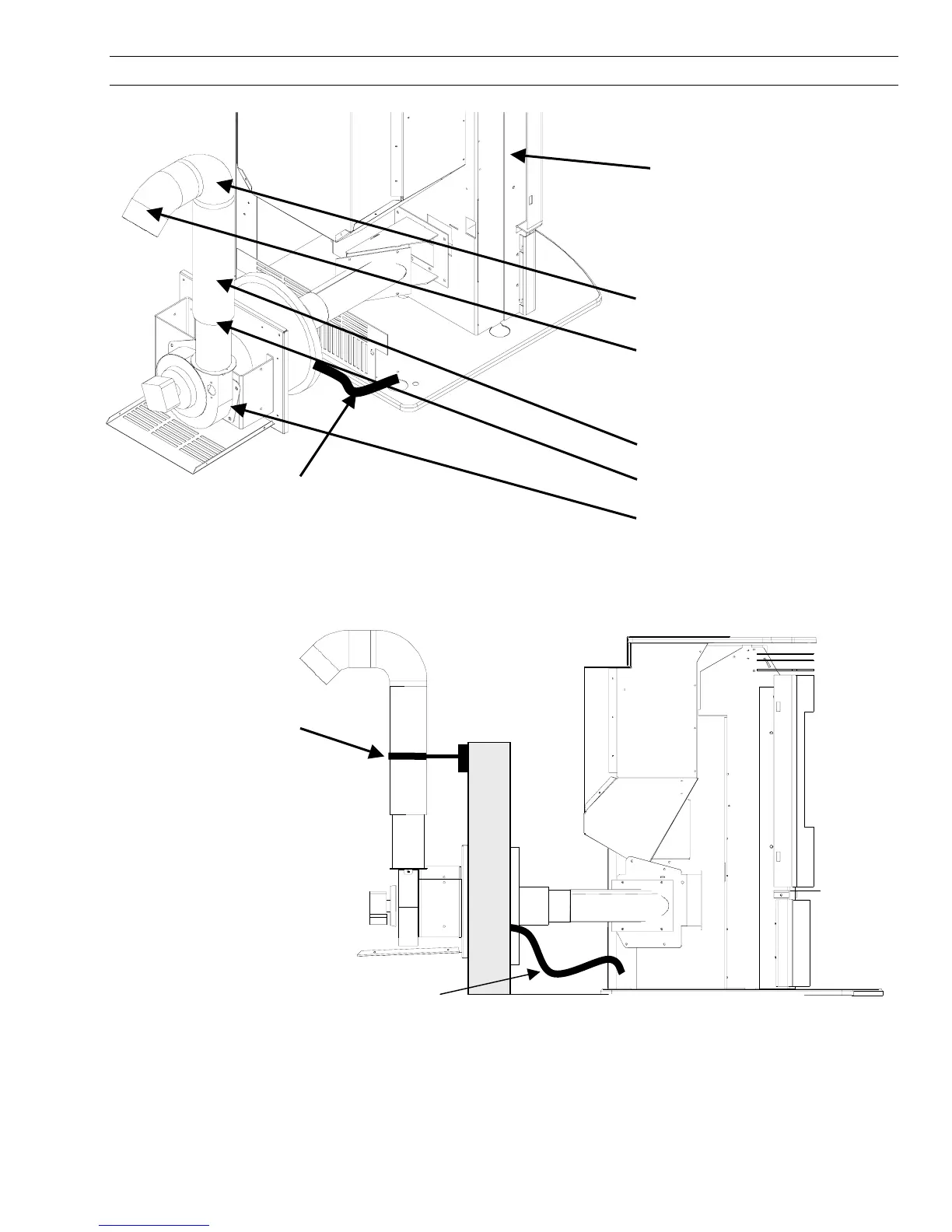

TYPICAL THROUGH WALL OUTSIDE TERMINATION INSTALLATION.
TO SUPPLY POWER TO THE EXHAUST BLOWER:
Install an amour coated electrical cable from the exhaus
t
blower housing, through the wall thimble and attach to the pre
drilled hole in the left hand rear hopper pillar, and hook up to
wires from the wiring harness for exhaust blower
A
ll electrical connections must be in accordance to local code
requirements.
EF V EVOLUTION
90° DEGREE ELBOW
45° DEGREE ELBOW WITH
RODENT SCREEN OR
STAINLESS STEEL
TERMINATION HOOD
2 FOOT RISER
PIPE ADAPTER
EXTERIOR BLOWER AND
HOUSING
ELECTRICAL CABLE
SIDE VIEW
NOTE:
Ensure that all vent
connections be installed
by placing a small bead
of high temperature
silicone at each chimney
connection.
Also ensure that all
vertical vent sections are
proper supported and
the all clearances to
combustibles are
maintained in
accordance with the vent
manufacturer’s
specifications.
WALL STRAP
