Enviro EF-V EVOLUTION - Vertical Through Wall Installation with Exterior Blower

18
THROUGH WALL VERTICAL INSTALLATION
Follow the previous pages for through wall installations. Ensure that vent pipe is properly secured to wall using
wall straps. Maintain clearances to combustibles on vent pipe as well as unit.

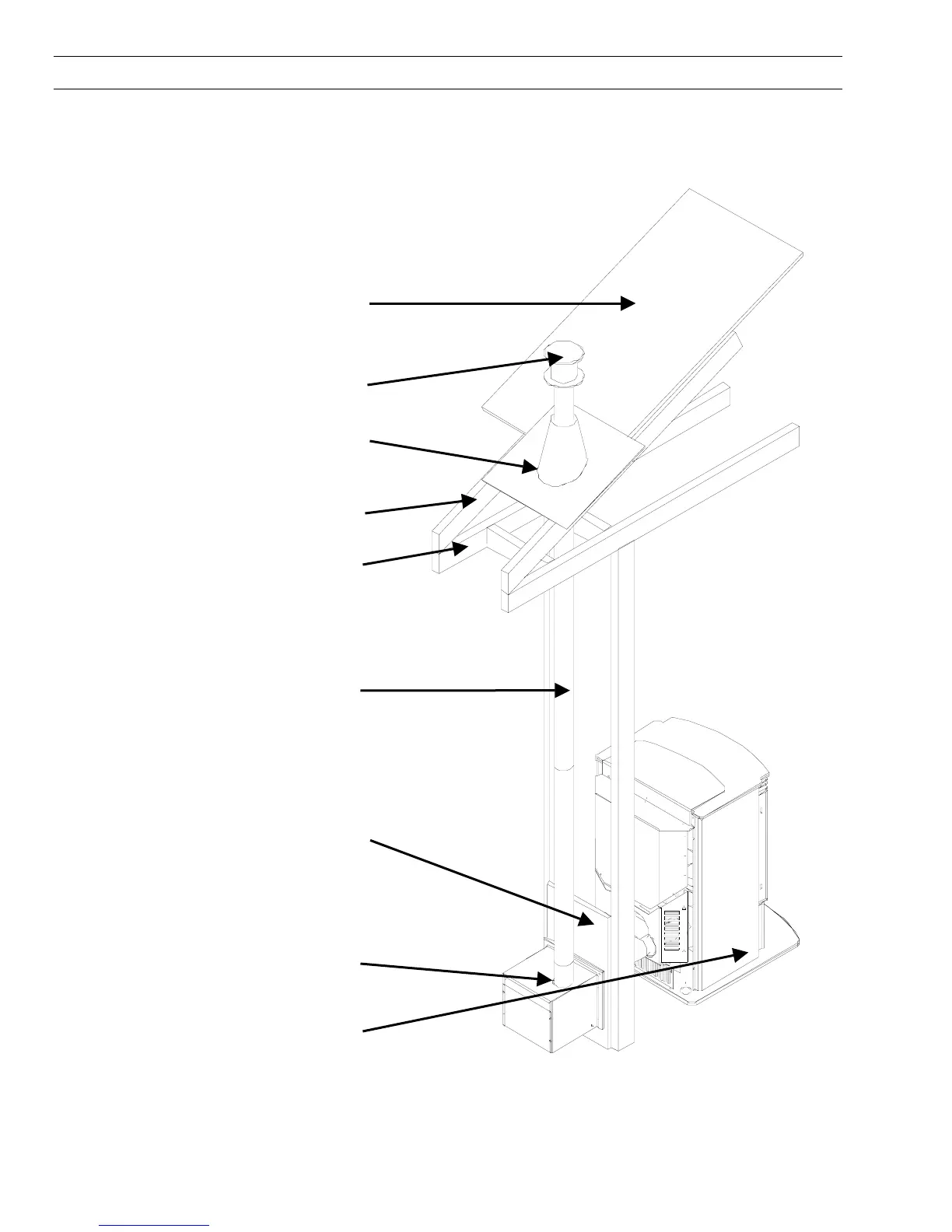

ROOF SHEATHING.
RAIN CAP.
ROOF FLASHING.
ROOF RAFTERS.
CEILING JOISTS.
V
ENT PIPE.
EXTERIOR WALL SHEATHING.
OUTSIDE VENT TERMINATION.
EF V EVOLUTION.
