11
Exhaust
3" (75mm) or 4" (100mm)
"PL" or "L" Vent
Wall Thimble
45
o
Elbow with Screen
or Termination Cap
High Temperature RTV
Silicone Required
Fresh Air Intake
Wall framing
Wall thimble
Termination cap
Vent pipe
Horizontal frame
for thimble
• This is due to the back pressure in the
exhaust caused by airflow around the
structure.
• All sections of pipe must have three (3)
screws evenly spaced and all horizontal
and vertical vent sections located within
the house must have a bead of high
temperature silicone installed on the
male end of the pipe before installation to
create a gas tight seal.
• The termination must be 12 inches (30
cm) from the outside wall and 12 inches
(30 cm) above the ground.
• A 45° elbow with a rodent screen may be
used in place of the termination cap (or
stainless steel termination hood).
Installation

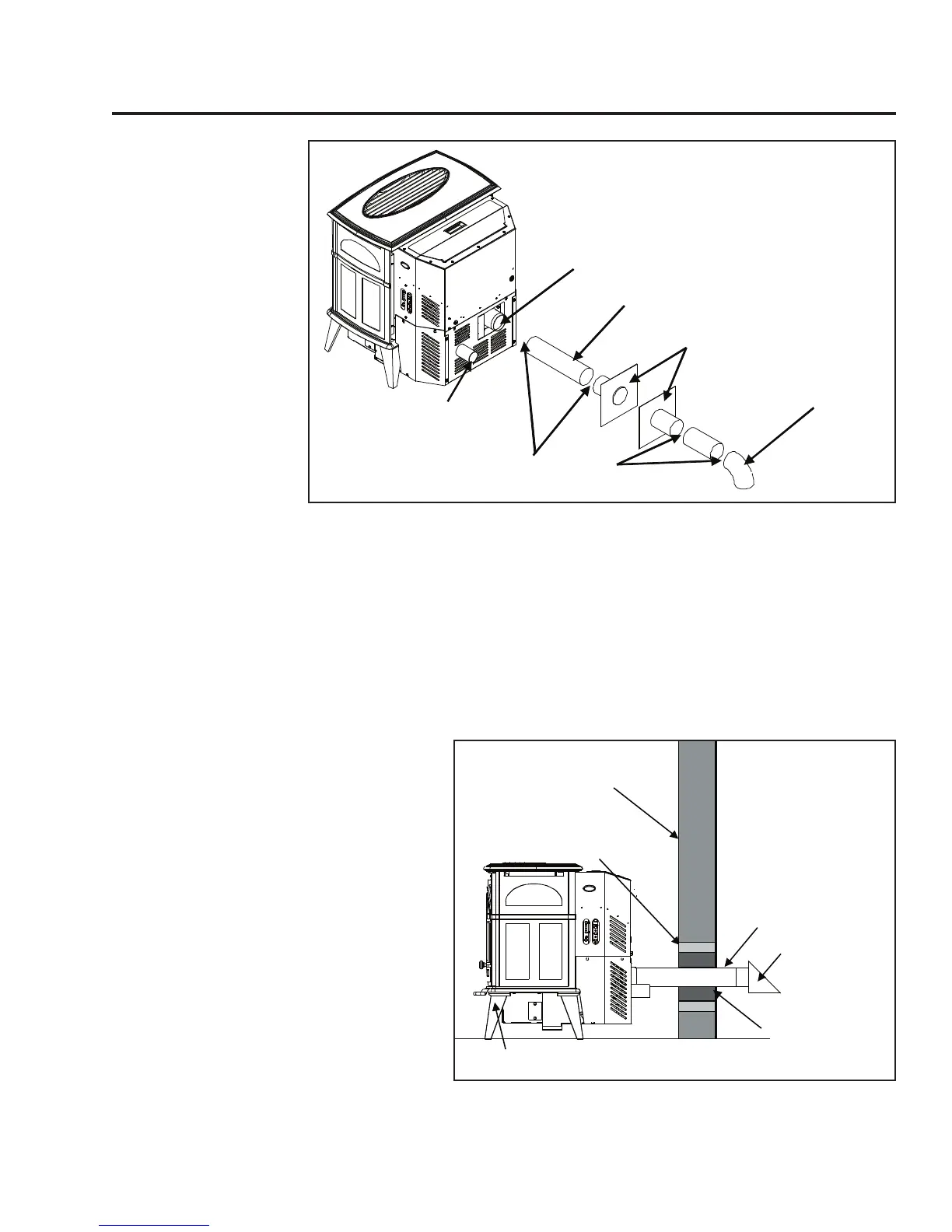

Figure 10: Straight through wall Installation.
10. The pipe must
extend at least
12” (30 cm) away
from the building.
If necessary, bring
another length of
pipe (PL type) to the
outside of the home
to connect to the
first section. Do not
forget to place high
temperature silicone
around the pipe that
passes through the
thimble.
11. Install a vertical pipe,
or if all requirements
for direct venting
are met, install
vent termination. The stainless steel cap termination manufactured by the vent manufacturer is
recommended. However, when the vent terminates several feet above ground level and there are no
trees, plants, etc. within several feet, a 45° elbow can be used as termination. The elbow must be
turned down to prevent rain from entering.
NOTE:
• Some horizontal through wall installations may require a “T” and 3 to 5 feet (91 to 152 cm) of vertical
pipe outside the building to help naturally draft in the unit.
• This may be required if a proper burn cannot be maintained, after the stove has been tested and the
airflow set.
Figure 11: Straight through Wall Installation - Side View.
