Enviro Empress Technical Manual

15
Storm Collar
Existing Masonary Flue
Flexible Vent Connector
(use this 5ft section of pipe
to vent past the fireplace
damper or smoke shelf)
Seal Plate
Fireplace Damper
Location
Vertical Vent Pipe (single
wall stainless flex pipe or
solid PL vent)
Existing Fireplace
ENVIRO Empress
Clean Out Tee
Rain cap - ensure cap is at
least 2 feet (610mm) above
the roof at the lowest point
1. Lock fireplace damper in the open
position.
2. Install a positive flue connector at the
fireplace dampers.
3. Connect a clean-out tee or a 90° elbow to
the exhaust pipe.
4. Install flexible stainless steel liner or listed
pellet vent to the top of the chimney.
Floor
Protection
Combustible Floor
Masonry Fireplace
Min 6"
(150 mm)
Mantel
Minimum 8" (20 cm)
from top of stove
Damper Removed
or Fastened Open
Clean-out
Fresh-air intake
should com from
chimney. If holes
already exist fresh-air
intake can be taken
through back of the
fireplace or through
the ash dump.
Installation
HEARTH MOUNT INSTALLATION:

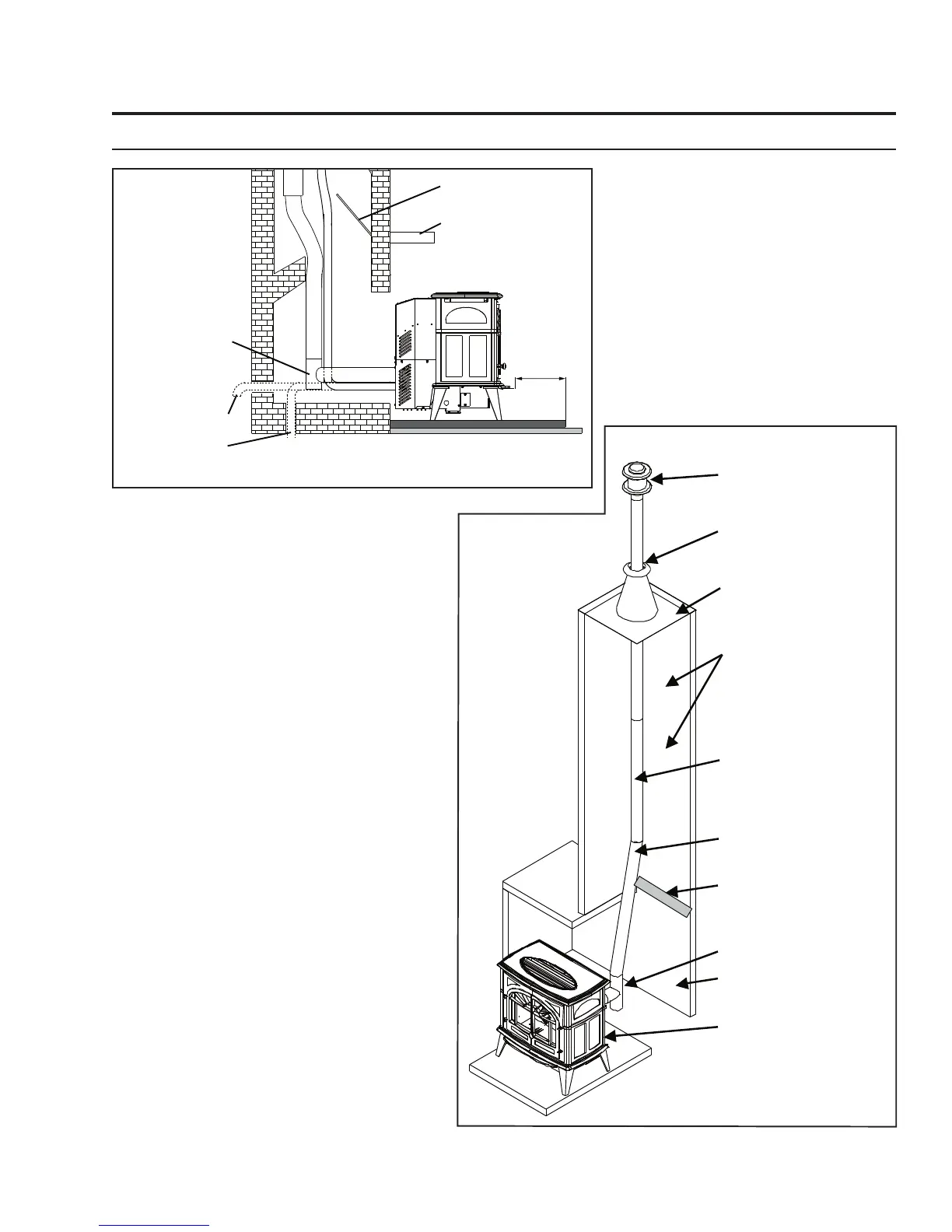

Figure 16: Hearth Mount - Side View.
Figure 17: Hearth Mount - Over View.
