13
Storm Collar
Roof Flashing
Roof Rafters
Fire Stop with
Support Collar
Ceiling Joist
Vertical Vent Pipe
Clean Out Tee
with Pipe Adapter
ENVIRO Empress
Note:
All vent sections must maintain
3" (76mm) clearances to
combustibles.
Rain cap - ensure cap is at
least 2 feet (610mm) above
the roof at the lowest point
Installation
INSIDE VERTICAL INSTALLATIONS:
1. Choose a stove location that is ideal. See the section “INSTALLATION - DECIDING WHERE TO LOCATE YOUR PELLET
APPLIANCE.”
2. Place the unit on the hearth pad (if installed on a carpeted surface) and space the unit in a manner
so when the pellet vent is installed vertically, it will be 3” (76 mm) away from a combustible wall.
3. Locate the center of the fresh air intake pipe on the unit. Match that center with the same point on
the wall and cut a hole about 2” (52 mm) in diameter.
4. Install the fresh air intake pipe.
5. Install the tee with clean out.
6. Install the pellet vent upward from there. When you reach the ceiling, make sure that the vent goes
through the ceiling fire stop. Maintain a 3” (76 mm) distance to combustibles and keep attic insulation
away from the vent pipe. Maintain an effective vapor barrier.
7. Finally, extend the pellet vent to go through the roof flashing.
8. Ensure that the rain cap is approximately 24” (610 mm) above the roof.

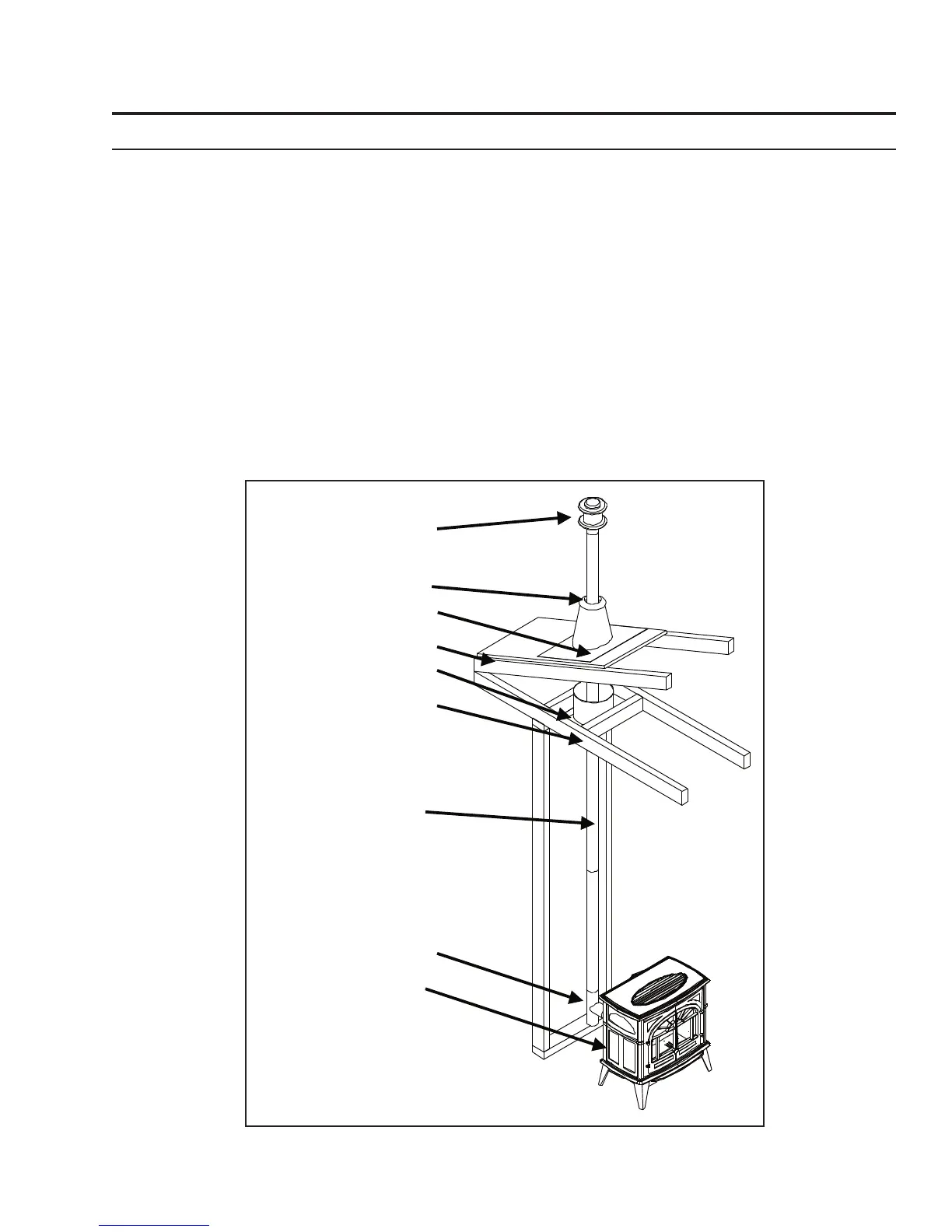

Figure 14: Inside Vertical Installation.
