8
7
7
/16"
(189mm)
4
3
/8"
(112mm)
3
1
/16"
(77mm)
9
9
/16"
(243mm)
EXHAUST
Base of unit to center of flue 9
9
/16” (243 mm)
Center of unit to center of flue 3
1
/16” (77 mm)
FRESH AIR INTAKE.
Base of unit to center of intake 7
7
/16” (189 mm)
Center of unit to center of flue 4 ” (112 mm)
OUTSIDE FRESH-AIR CONNECTION:
Outside fresh air is mandatory when installing this unit
in airtight homes and mobile homes.
A Fresh-air intake is strongly recommended for all
installations. Failure to install intake air may result in improper
combustion as well as the unit smoking during power failures.
When connecting to an outside fresh air source, do not use
plastic or combustible pipe. A 2” minimum (51 mm) ID (inside
diameter) steel, aluminum or copper pipe should be used. It is
recommended, when you are installing a fresh air system, to
keep the number of bends in the pipe to a minimum.
Installation
EXHAUST AND FRESH AIR INTAKE LOCATIONS:
INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENTING MANUFACTURER

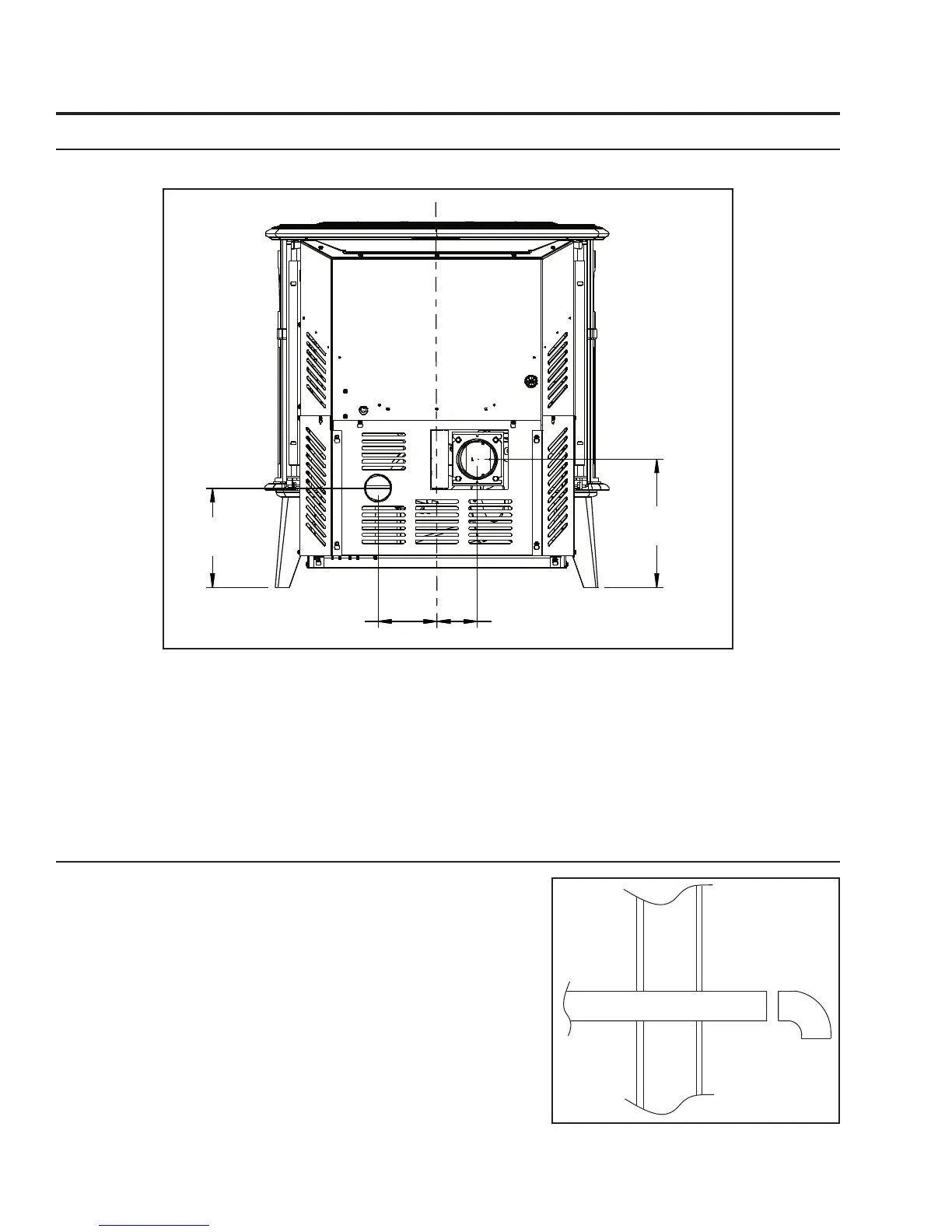

Figure 7: Outside Air Connection.
Figure 6: Inlet and Outlet Location.
