Figure 10: Corner Installation.
Installation

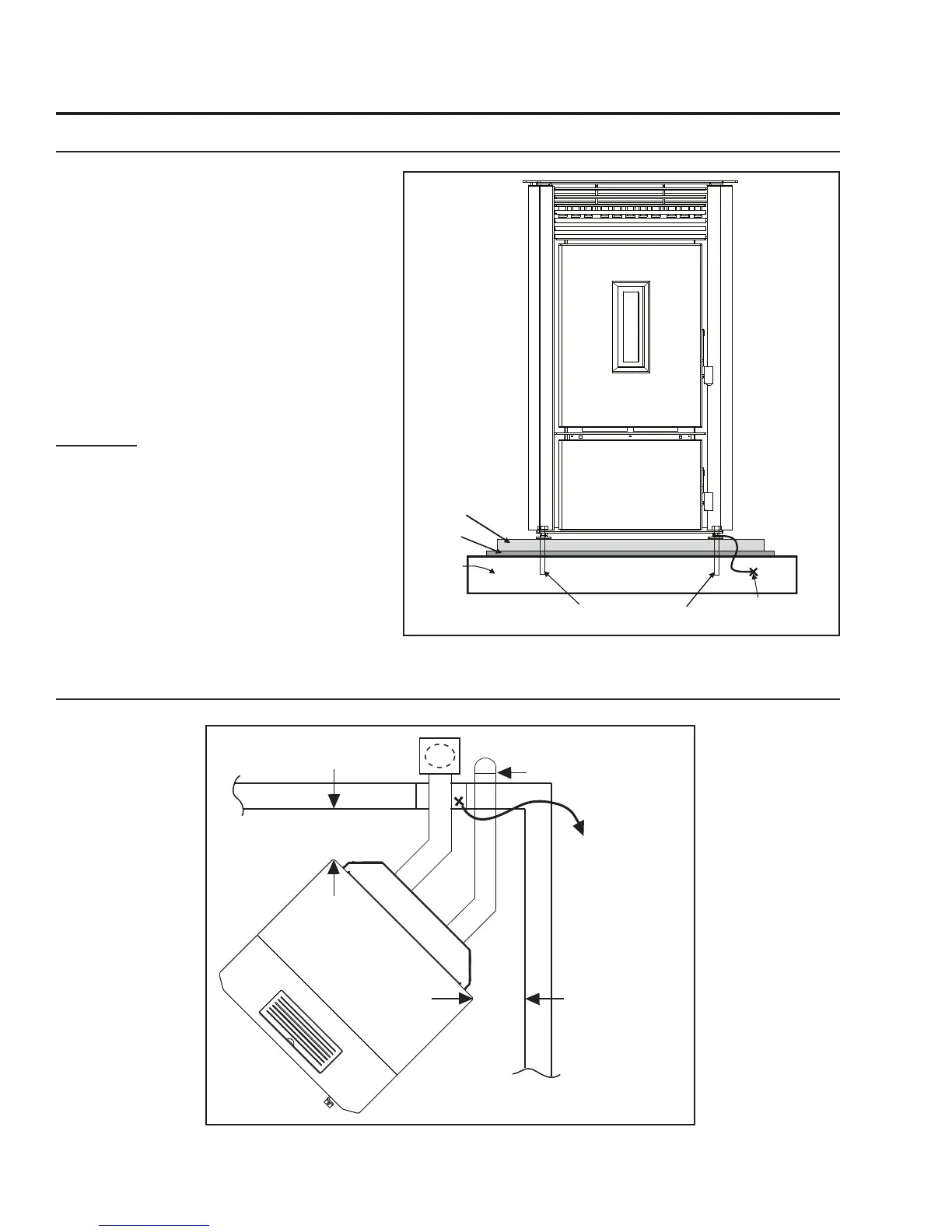

MOBILE HOME INSTALLATION:
4"
(10cm)
4"
(10cm)
Fresh Air Intake
Wall thimble
manufactured
by pellet vent
manufacturer.
1
/4” Lag Bolts Securely
Fastened
Ground Wire Directly
to Metal Chassis
Optional
Hearth Pad
Flooring
Steel
Frame
● Secure the heater to the floor using the
four (4) holes in the pedestal.
● Ensure the unit is electrically grounded to
the chassis of your home (permanently).
● Do not install in a room people sleep in.
● Outside fresh air is mandatory. Secure
outside air connections directly to fresh
air intake pipe and secure with three (3)
screws evenly spaced.
CAUTION: THE STRUCTURAL
INTEGRITY OF THE
MANUFACTURED HOME FLOOR,
WALL AND CEILING/ROOF MUST
BE MAINTAINED.
CORNER THROUGH WALL INSTALLATION:
Figure 9: Mobile home installation.
10
