Existing Fireplace
Clean Out Tee
Fireplace Damper
Location
Rain Cap
Seal Plate
Vent Pipe (single
wall stainless flex
pipe or PL vent)
Existing Masonary
Flue
Flexible Vent Connector
(Use this 5 ft section of
pipe to vent past
fireplace damper or
smoke shelf)
1. Lock fireplace damper in the open
position.
2. Install flexible stainless steel liner or listed
pellet vent to the top of the chimney.
3. Install a sealing plate at the top of the
chimney.
4. Connect a rain cap and flex adapter to
the chimney liner/pipe.
5. Connect a clean-out tee or a 90° elbow
to the liner/pipe.
6. Install tee onto stove.
Floor
Protection
Combustible Floor
Masonry Fireplace
Min 150mm (6")
Mantel
Minimum 200mm (8")
from top of stove
Damper Removed
or Fastened Open
Clean-out
Fresh-air intake should com
from chimney. If holes
already exist fresh-air
intake can be taken through
back of the fireplace or
through the ash dump.

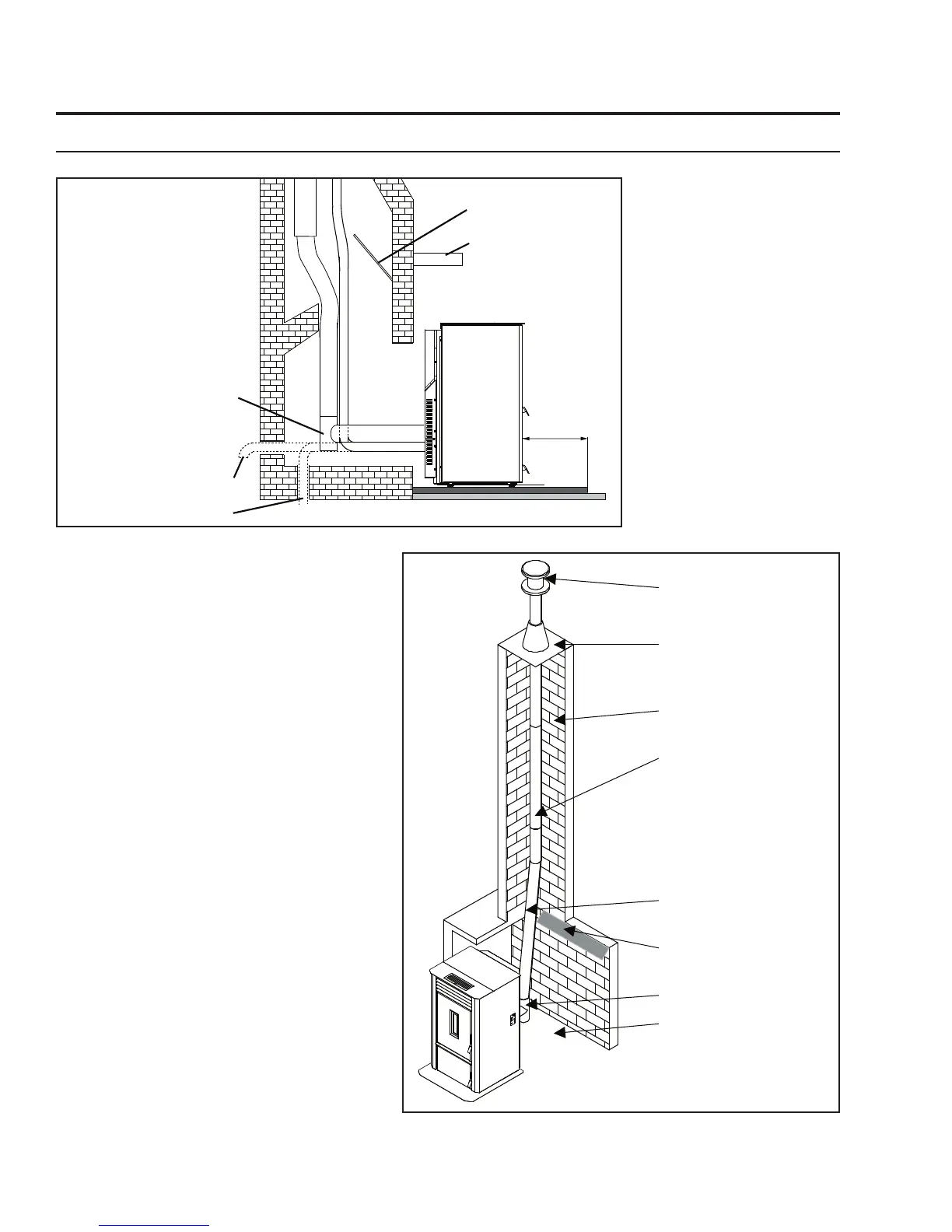

Installation
HEARTH MOUNT INSTALLATION:
Figure 17: Hearth Mount - Side View.
Figure 18: Hearth Mount - Over View.
16
