Wall framing
Wall thimble
Termination cap
Vertical section
of vent pipe
Clean
out tee
Wall strap
90°elbow
Horizontal
frame for
thimble
Installation

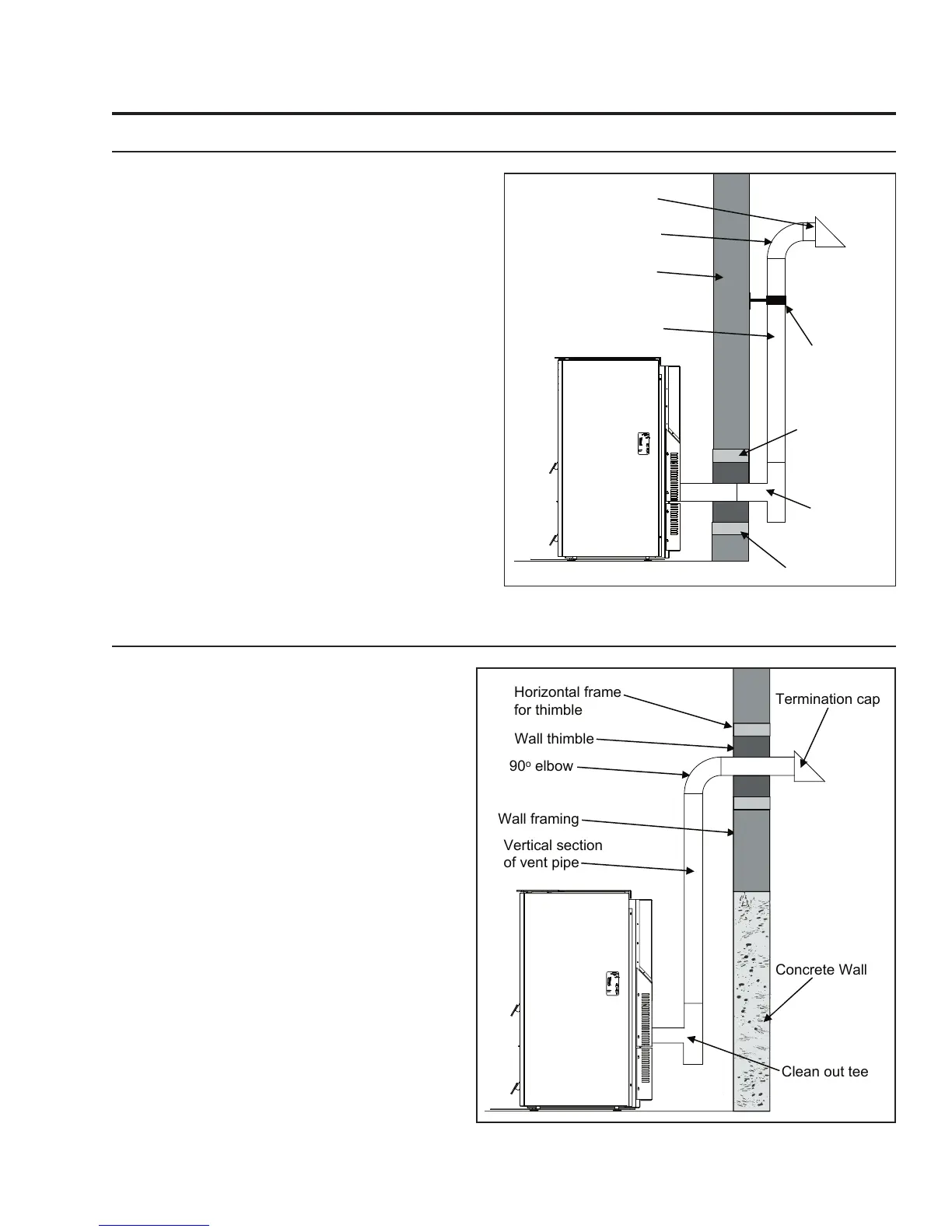

RECOMMENDED - THROUGH WALL WITH VERTICAL RISE AND HORIZONTAL TERMINATION INSTALLATION:
Figure 13: Venting horizontally with rise.
THROUGH CONCRETE WALL WITH VERTICAL RISE INSTALLATIONS:
Wall framing
Wall thimble
Termination cap
Vertical section
of vent pipe
Horizontal frame
for thimble
90
o
elbow
Concrete Wall
Clean out tee
Installation to use if there is a concrete or
retaining wall in line with exhaust vent on
pellet stove.
A 45° down elbow may be used in place of the
termination cap (or stainless steel termination
hood).
The termination must be 12 inches (30 cm)
from the outside wall and 12 inches (30 cm)
above the ground.
Figure 14: Venting with concrete wall behind unit .
13
A 45° down elbow may be used in place of the
termination cap (or stainless steel termination
hood).
