ENVO D50 - Handlebar Assembly

ENVO D50 | ST50 EBIKE MANUAL | VERSION 1.0 23

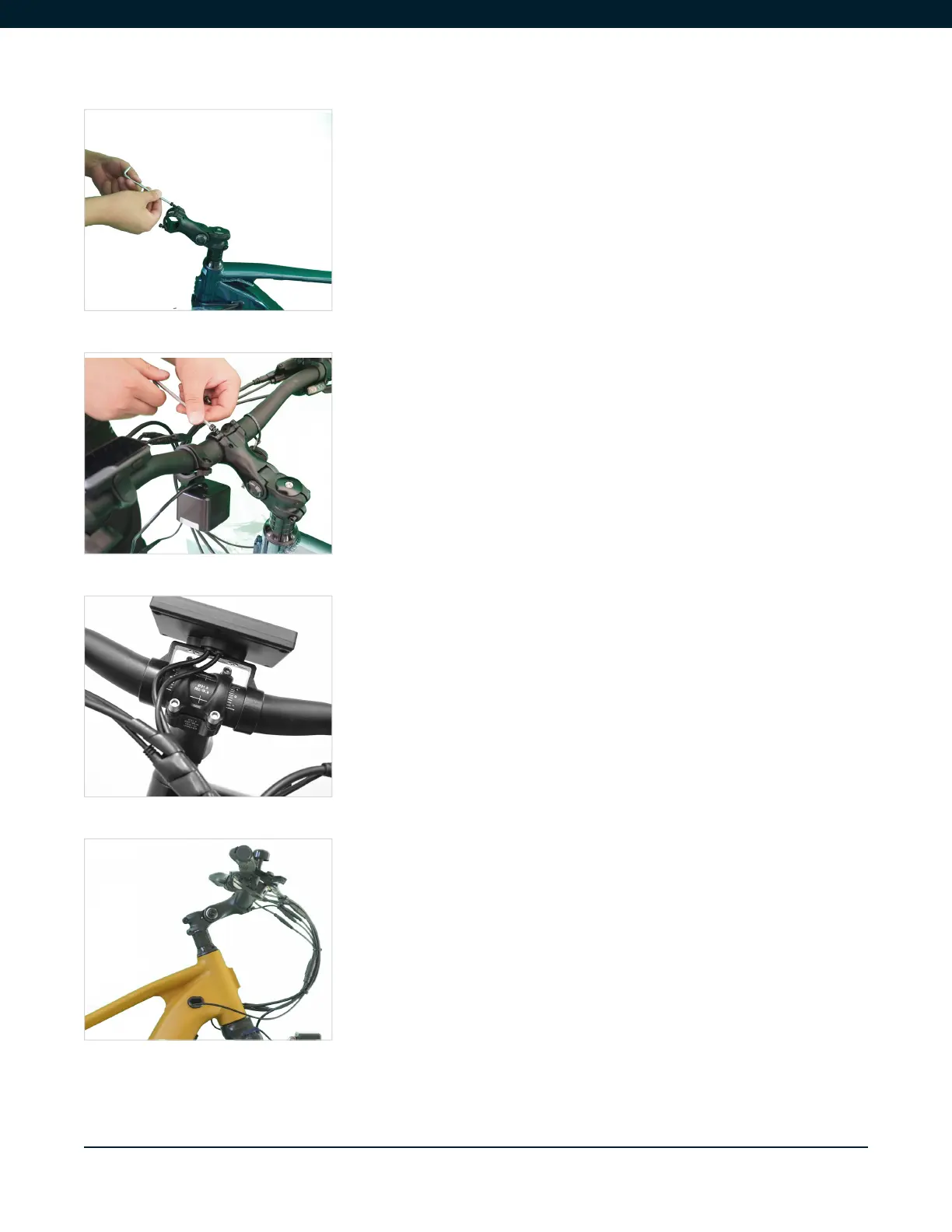

4.5.2. ENVO D50 HANDLEBAR ASSEMBLY
• Remove the four Allen bolts and remove the clamp
Figure 4E
• Place the handlebar in the center of the clamp, such that
the gear shifter is on the right side Figure 4F
• Reinstall the clamp and proceed to tighten the 4 screws.
To make sure that torque is applied evenly, tighten
one bolt, skip the next and tighten the third bolt on the
opposite side. Then proceed to righten the remaining
bolts
• Before securing the handlebar, adjust the angle to your
desired position
• Make sure there is an equal gap between the clamp and
the stem between all four bolts
• Torque the 4 bolts to 5Nm
• Adjust the handlebar height by loosening and or
tightening the Allen bolt in the center of the stem. The
recommended Torque is 7Nm Figure 4H
• Never adjust the handlebar height above the
recommended mark or high enough to allow 4 inches of
the stem to be left inside the headset tube
• Always check the stem is tight and cannot move
• Make sure the grips are tight enough that they do not
move
Figure 4E
Figure 4F
Figure 4G
Figure 4H
