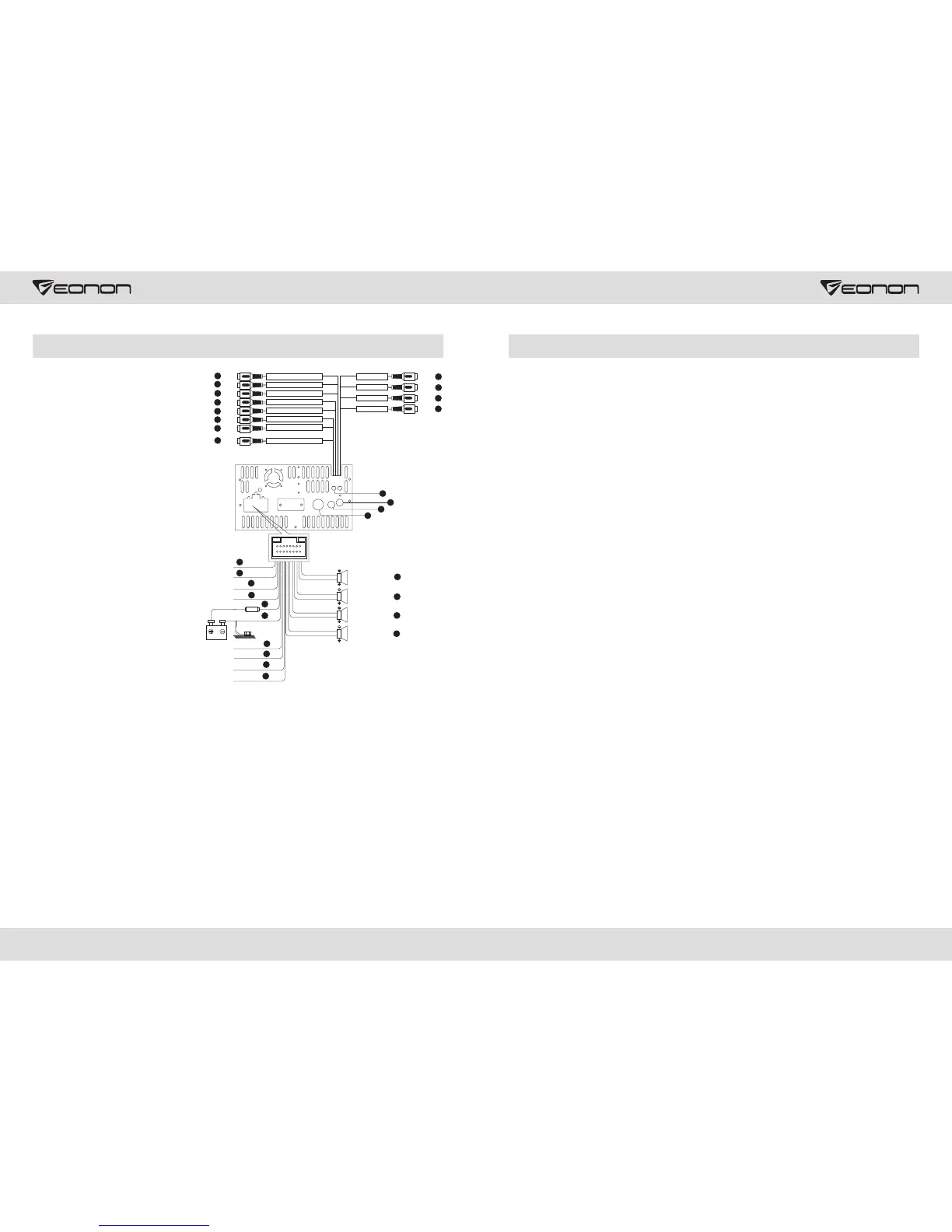

Connection diagram
I. AV cable, GPS antenna,
hanging digital TV, IPOD, radio
AV cable 1: 2.0mm / 6Pin
1. RVIN rearview camera input
2. VIN video input
3. VOUT1 video output 1
4. VOUT 2 video output 2
AV cable 2: 2.0mm / 10Pin
5. RIN right audio input
6. LIN left audio input
7. FROUT rear right audio output
8. FLOUT front left audio output
9. FROUT rear right audio output
10. RLOUT rear left audio output
11. SUB1 bass output 1
12. SUB2 bass output 2
13. Hanging digital TV
14.IPOD
15. Radio
16.GPS
II. Power Supply Cable and Control Cable
17 SW1 (Wheel control cable)
18. SW2 (Wheel control cable)
19. BRAKE (Hand brake control
cable)
20. BACK (Back control cable)
21. ACC (Vehicle button switch)
22. ILLUMI (Headlight control
cable)
23. Power supply cable
.
24. Power supply grounding
25. POW-AMP (Power amplifier
control cable
26. Rear left speaker
27. Front left speaker
28. Rear right speaker
29. Front right speaker
30. Radio auto aerial power
supply
）
29 30
Specification:
Product Parameter
Power supply DC 12V(10.8～16V)
Load resistance 4Ω
maximum current 15A
ultimate output 4X65W
contour dimension 180mm(W)X165mm(H)X100mm(d)
weight 2.65kg
DVD Player
audio output 2.0Vrms±0.3V 10KΩ
SNR ≥95dB (1KHz)
T.H.D DISTORTION ≤0.01%
separating degree ≥75dB (1KHz)
frequency response ±3 dB (20Hz～20KHz)
video output 1.0Vp_p±0.2V/75Ω
FM Radio
frequency range 87.5-108.0MHZ(European 、Japan)
76-90MHZ(Japan)
intermediate frequency 10.7MHZ
Practical sensitivity ≤10dB
SNR ≥65dB
T.H.D DISTORTION ≤0.1%
separating degree ≥30dB(1KHz)
AM Radio
frequency range 522～1620KHz
intermediate frequency 450KHZ
Practical sensitivity ≤35dB
SNR ≥50dB
T.H.D DISTORTION ≤0.2%
11
9
10
12
7
8
5
19
1
2
3
4
13
14
15
16
Black
Red
White
Red
White
Red
White
Black
Green
Yellow
Yellow
Yellow
Subwoofer ou tput 1
Rear and right a udio ou tput
Rear and left au dio out put
Front and righ t audio o utput
Front and left a udio ou tput
Right audio in put
Left audio inp ut
Subwoofer output 2
Camera input
Vid eo inpu t
Vid eo outp ut1
Vid eo outp ut2
GPS antenna
20
21
22
23
24
25
17
18
26
27
28
29
Rear and speakerleft
Rear and right s peake r
Front and righ t speak er
Front and left s peake r
Green and blac k
Green
White and blac k
White
Purple and bla ck
Purple
Grey and black
Grey
Brown
Orange
Red
Pink
Yellow
15A
GND
Black
Power+12v
Blue and black
Blue
White
Power amplif ier con trol
Steering whe el cont rol1
Steering whe el cont rol2
Brake wire
Rearview con trol wi re
ACC(Igniti on swit ch)
ILLUMI
6
Radio antenn a
IPOD Connect
Extemal Digi tal TV(optio nal)
30
Auto antenna p ower
Blue
